24
ITEM PART NO. DESCRIPTION QTY
1 9.802-166.0 Coupler, 3/8" Female 1
8.706-703.0 ▲ Quick Coupler O-Ring, 1/4" & 3/8" (Packaged) 1
2 8.739-213.0 Hose 3/8" x 50', 2-Wire Tuff-FLex 1
3 8.751-234.0 Gun, Landa, L1050, 5000 PSI, 10.4 GPM 1
4 8.904-430.0 Wand, Straight w/Coupler Assy (4-2000) 1
5 8.711-293.0 Wand, VP AL344 Assy (4-3500, 4-4000, 5-3500) 1
6 Pressure Nozzle, See Exploded Views
7 8.712-398.0 Brass Soap Nozzle (4-2000) 1
8 9.802-164.0 Coupler, 1/4" Female (4-2000) 1
9.802-165.0 Coupler, 1/4" Male Brass (4-3500, 4-4000, 5-3500) 1
9.802-096.0 ▲ O-Ring, Coupler Quick Sm HI-HT 1
8.706-712.0 ▲ Seal 1/4" 1
9 9.802-225.0 Detergent Injector Assy. 1
▲ Not Shown
7 - Brass Soap
Nozzle
8
4
5
6 - High
Pressure Nozzle
2
3
1
6 - High Pressure
Nozzle

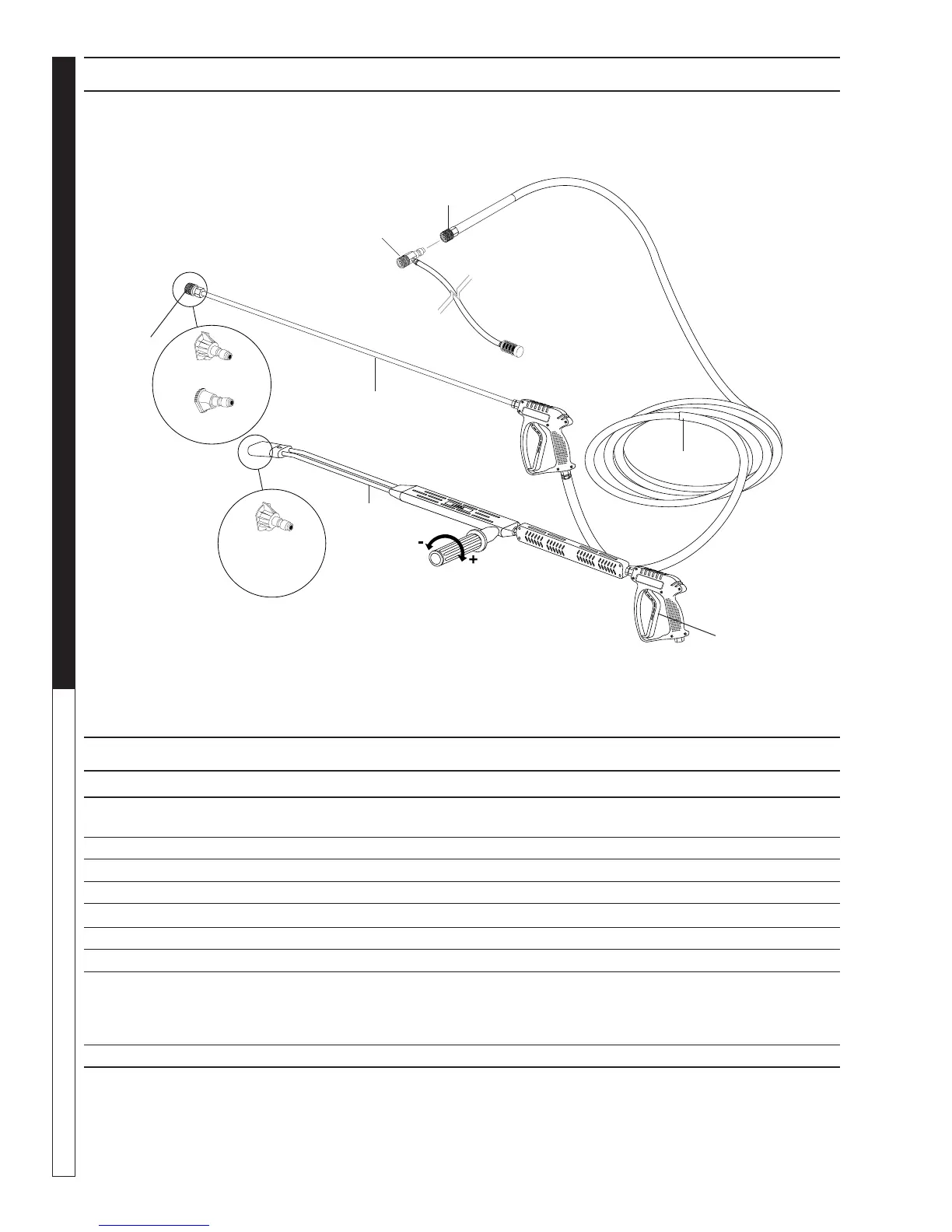

HOSE & SPRAY GUN ASSEMBLY
HOSE & SPRAY GUN ASSEMBLY PARTS LIST
9
