Landa PG5-3500E - Page 27

LANDA PG 8.913-910.0
27
PRESSURE WASHER
OPERATOR’S MANUAL

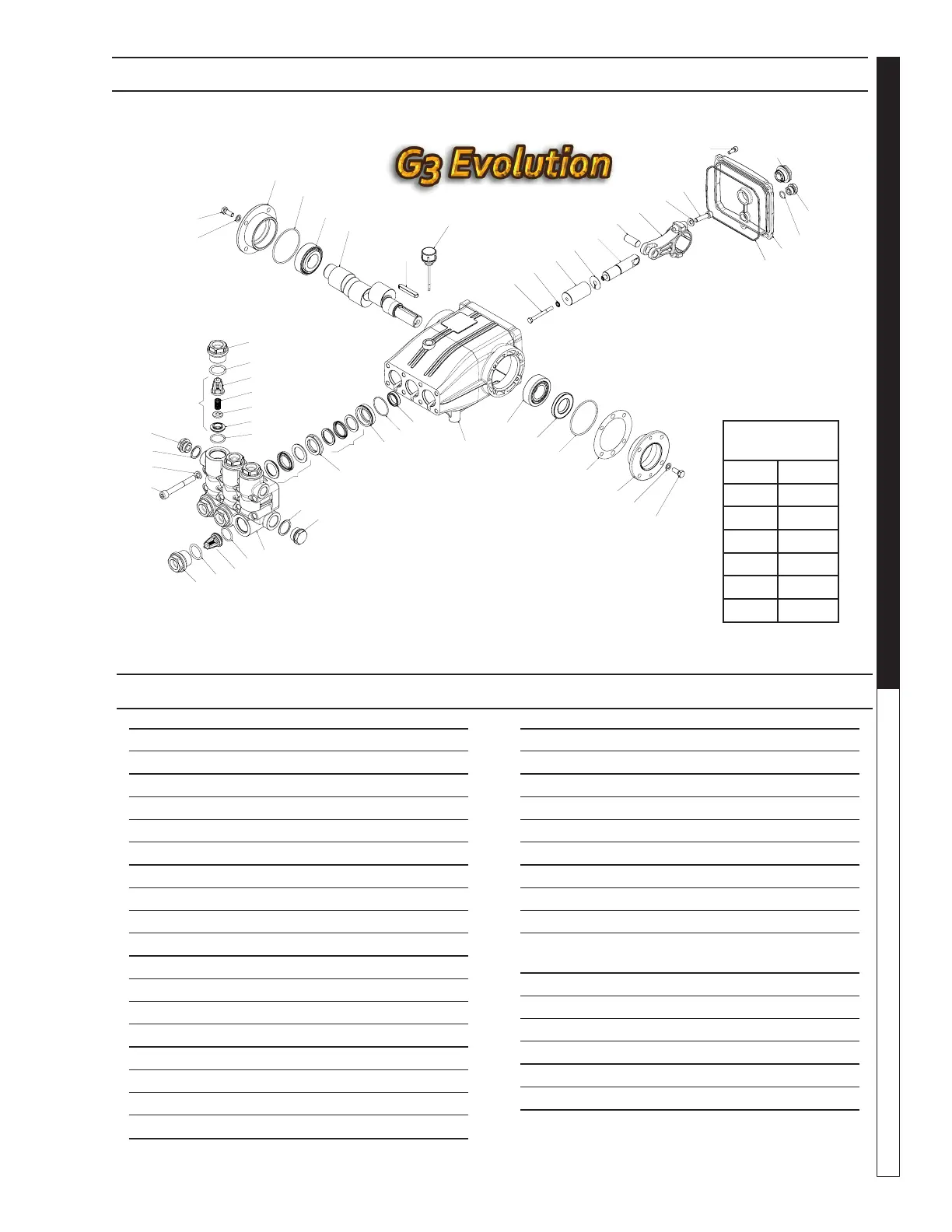

LT.2 PUMP EXPLODED VIEW AND PARTS LIST
LT PUMP EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
19 See Kit Below Valve Seat 6
20 See Kit Below Valve Plate 6
21 See Kit Below Valve Spring 6
22 See Kit Below Valve Cage 6
23 8.725-830.0 Hexagonal Screw 8
24 9.802-884.0 Washer 8
25 9.803-182.0 Closed Bearing Housing 1
26 9.803-186.0 O-Ring Ø2.62 x 71.12 2
27 9.803-160.0 Roller Bearing 2
28 8.753-818.0 Crankshaft Ø24 (4540) 1
8.752-827.0 Crankshaft Ø24 (6036) 1
29 9.803-167.0 Cranckshaft Key 1
30 8.752-834.0 Oil Dipstick 1
31 9.803-139.0 Crankshaft Seal 1
32 9.803-177.0 Shim 2
33 9.803-181.0 Bearing Housing 3
34* 8.752-841.0 Plunger Bolt 3
ITEM PART NO. DESCRIPTION QTY
1 8.752-825.0 Crankcase 1
2* See Kit Below Plunger Oil Seal 3
3* See Kit Below O-Ring Ø1.78 x 37.82 3
4* See Kit Below "Pressure Ring, Brass 3
5* See Kit Below "U" Seal 18mm 3
6* See Kit Below Intermediate Ring, 18mm 3
7* See Kit Below "U" Seal, 18mm 3
8 9.802-926.0 Brass Plug, G1/2 1
9 9.803-199.0 Cooper Washer 1/2 1
10 8.753-816.0 Manifould Housing 1
11* 9.804-498.0 O-Ring Ø2.62 x 25.1 6
12* See Kit Below Valve Assembly 6
13* 9.803-193.0 O-Ring 3068 6
14 9.802-928.0 Valve Plug 6
15 8.753-817.0 Manifould Stud Bolt 8
16 9.802-890.0 Lock Washer 8
17 8.719-008.0 Cooper Washer 3/8 1
18 8.707-262.0 Brass Plug 3/8 1
5
7
12
12
23
24
25
26
27
28
29
30
27
31
26
32
33
24
23
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
2
3
4
6
8
9
10
13
14
15
16
17
18
19
20
21
22
13
14
11
11
1
TORQUE
SPECS
Item # Ft.-Lbs.
14 95
15 45
23 8
34 10
42 30
48 8
8.921-710.0 LT4540.2 Right
8.921-711.0 LT4540.2 Left
8.921-712.0 LT6036.2 Right
8.921-713.0 LT6036.2Left
