Landa PG5-3500E - Pump Exploded View and Parts List

LANDA PG 8.913-910.0
29
PRESSURE WASHER
OPERATOR’S MANUAL
REPAIR KIT NUMBER
8.753-821.0 8.753-822.0 8.753-823.0 8.753-824.0 8.752-835.0
KIT DESCRIPTION
Plunger Seal
18mm
Seal Packing
18mm Plunger 18mm Complete Valve Plunger Oil Seals
ITEM NUMBERS
INCLUDED
3,5,7 3,4,5,6,7 34,35,36,37 11,12,13 2
NUMBER OF CYLIN-
DERS KIT WILL SERVICE
3 1 1 6 3

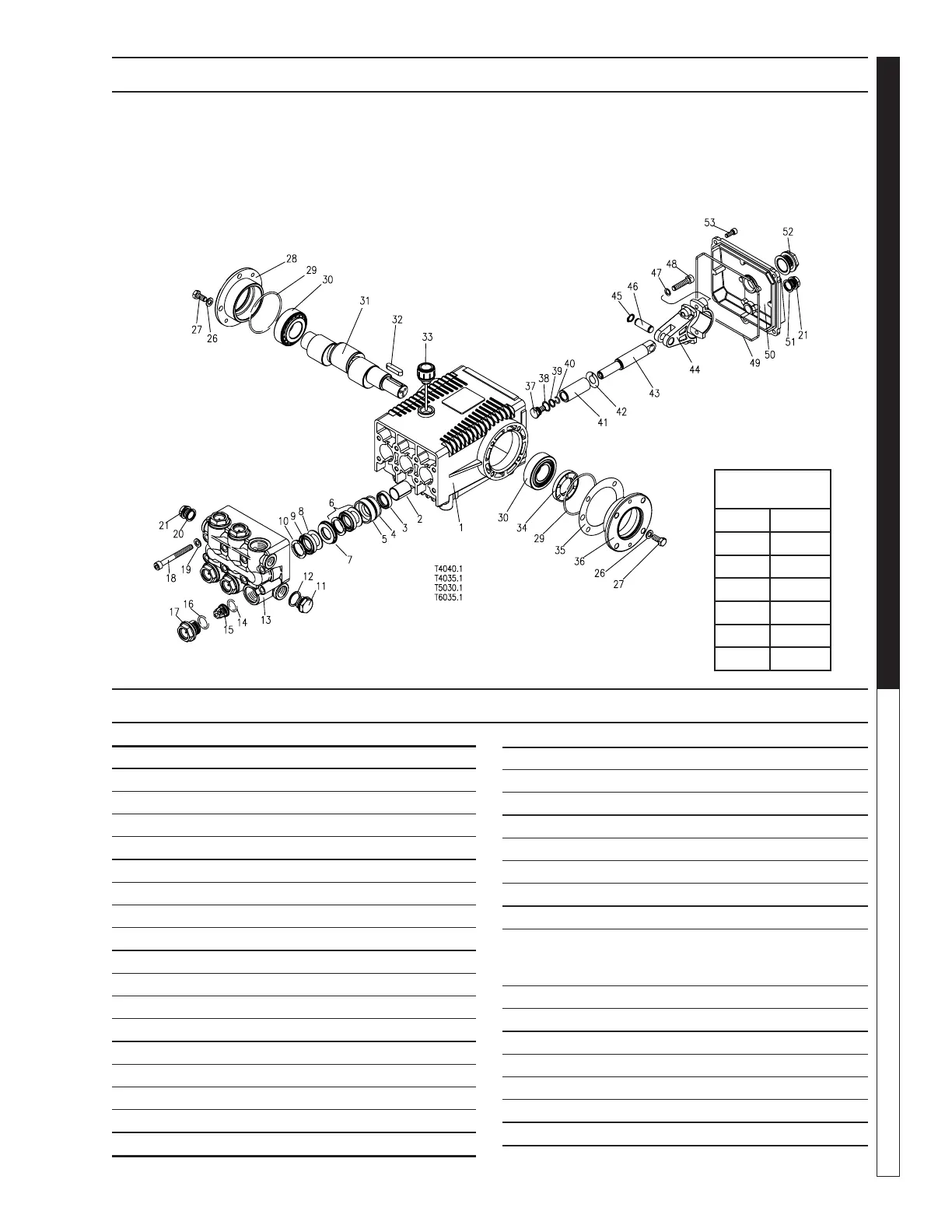

LT PUMP EXPLODED VIEW PARTS LIST
8.904-869.0 LT4035.1 Right
8.904-870.0 LT4035.1 Left
8.904-871.0 LT4040.1 Right
8.904-872.0 LT4040.1 Left
8.904-874.0 LT5030.1 Right
8.904-879.0 LT5030.1 Left
8.904-881.0 LT6035.1 Right
8.904-883.0 LT6035.1 Left
TORQUE
SPECS
Item # Ft.-Lbs.
15 75
16 45
25 18
35 10
46 30
51 7.6
ITEM PART NO. DESCRIPTION QTY
19 9.802-890.0 Washer 8
20* 9.803-198.0 Copper Washer 3/8" 1
21* 9.802-925.0 Brass Plug 3/8" 1
26 9.802-884.0 Washer 8
27 9.802-944.0 Hexagonal Screw 8
28 9.803-182.0 Closed Bearing Housing 1
29 9.803-186.0 O-Ring Ø2.62 x 71.12 2
30 9.803-160.0 Roller Bearing, Tapered 2
31 9.803-148.0 Crankshaft (GT4040.1,
5030.1, 6035.1) 1
9.803-149.0 Crankshaft (GT 4035.1)
32 9.803-167.0 Crankshaft Key 1
33 9.802-923.0 Oil Dip Stick 1
34 9.803-139.0 Crankshaft Seal 1
35 9.803-177.0 Shim 2
36 9.803-181.0 Bearing Housing 1
37* 9.803-235.0 Plunger Bolt 3
38* 9.802-886.0 Copper Spacer 3
ITEM PART NO. DESCRIPTION QTY
1 9.803-163.0 Crankcase 1
2 9.803-195.0 Plunger Guide 3
3* See Kit Below Plunger Oil Seal 3
4* See Kit Below O-Ring Ø1.78 x 31. 47 3
5* See Kit Below "Pressure Ring, Brass 3
6* See Kit Below "U" Seal Low Pressure 3
7* See Kit Below Intermediate Ring, Brass 3
8* See Kit Below Support Ring, Teflon Bronze 3
9 See Kit Below "U" Seal High Pressure 3
10 See Kit Below Support Ring 3
11 9.802-926.0 Brass Plug, 1/2" 1
12* 9.803-199.0 Copper Washer 1/2" 1
13* 9.802-933.0 Manifold Head 1
14* See Kit Below O-Ring Ø2.62 x 17.13 6
15 See Kit Below Valve Assembly 6
16 See Kit Below O-Ring Ø2.62 x 20.29 6
17 9.802-928.0 Valve Plug 6
18 9.802-943.0 Manifold Stud Bolt 8
LT PUMP EXPLODED VIEW AND PARTS LIST
