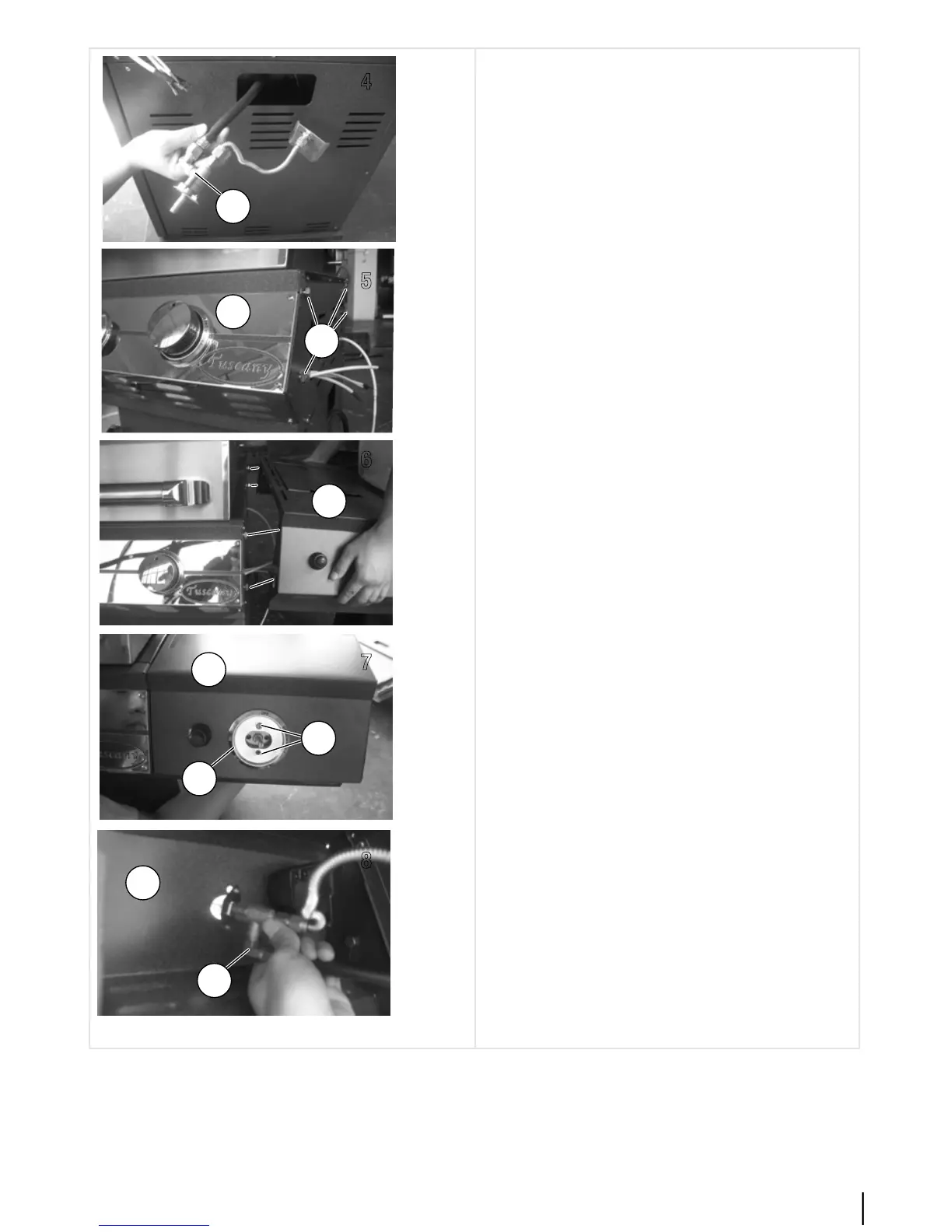

4. Remove the packaging from the side burner adjusting
element (3) and guide it through the opening in the
side panel of the barbecue.
5. Undo four hexagon bolts (S) on the right-hand side of
the wagon barbecue (1) through a few rotations. Do
not remove!
6. Position the side burner table (4) with its drill holes
over the loosened hexagon bolts (S) and then re-
tighten the bolts (same as step 3).
7. Remove the ame regulator cover (5) from the side
burner table (4) by unscrewing the two crosshead
screws (S).
8. Insert the adjusting element (3) through the opening
and into the side burner table (4) from the rear.
Secure it in place from the front together with the ame
regulator cover (5) by using the two crosshead screws
(S from step 7).
When doing this make sure that the "OFF" marking
on the cover is at the top and that the gas hose is not
twisted or kinked in any way.
