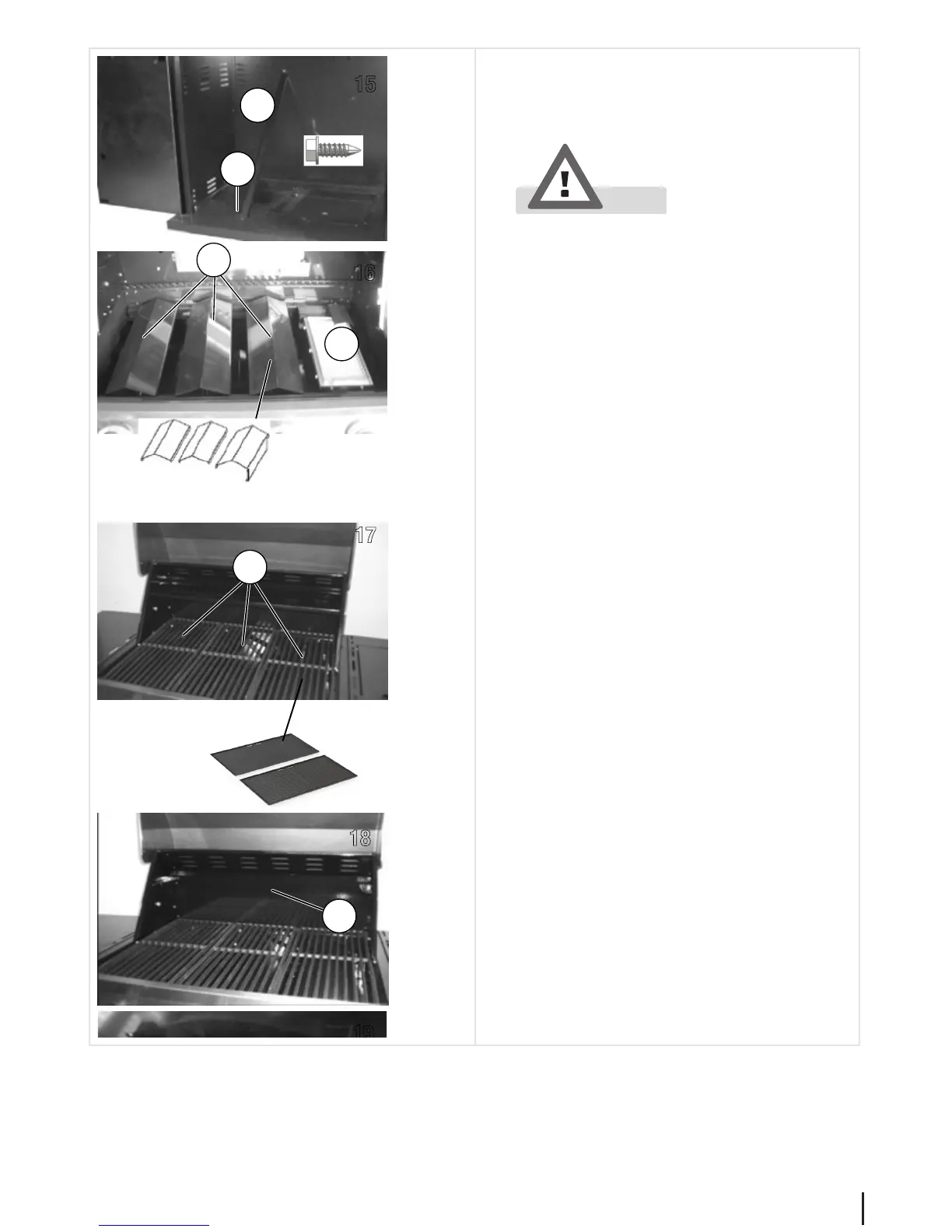

15. Turn the gas cylinder stop (10) from the rear panel of
the cart to the illustrated position and screw it to the
base of the cart. Do this using a self-tapping screw
(S1).
The gas cylinder stop
(10) is to be tted so that no other gas cylin-
ders can be positioned. Failure to observe this
stipulation can result in a re, an explosion or
to damage to the barbecue due to the excess
weight.
16. Place the three ame covers (11) into the recesses so
that the pointed triangular edges are pointing up-
wards.
When doing this make sure that the ame cover
with the high side edge is located directly next
to the infrared burner (12). This protects the
infrared burner from damage caused by the
ames.
17. Insert the three cooking grills (13).
18. Insert the warming racks (14) into their guide slots.
19. Insert the grease collection tray (15) into its guides.
The assembly process is now complete. The barbecue
should now look as it does on the title page of the docu-
ment.
