Landmann 42170 - Step 16: Side Shelf Brackets; Step 17: Right Shelf Attachment; Step 18: Left Shelf Attachment

12
Assembly Instructions
1717
CC
P
DD
Attach right shelf (P) to side shelf brackets with step
bolts (DD) and M6 nuts (CC) as shown.

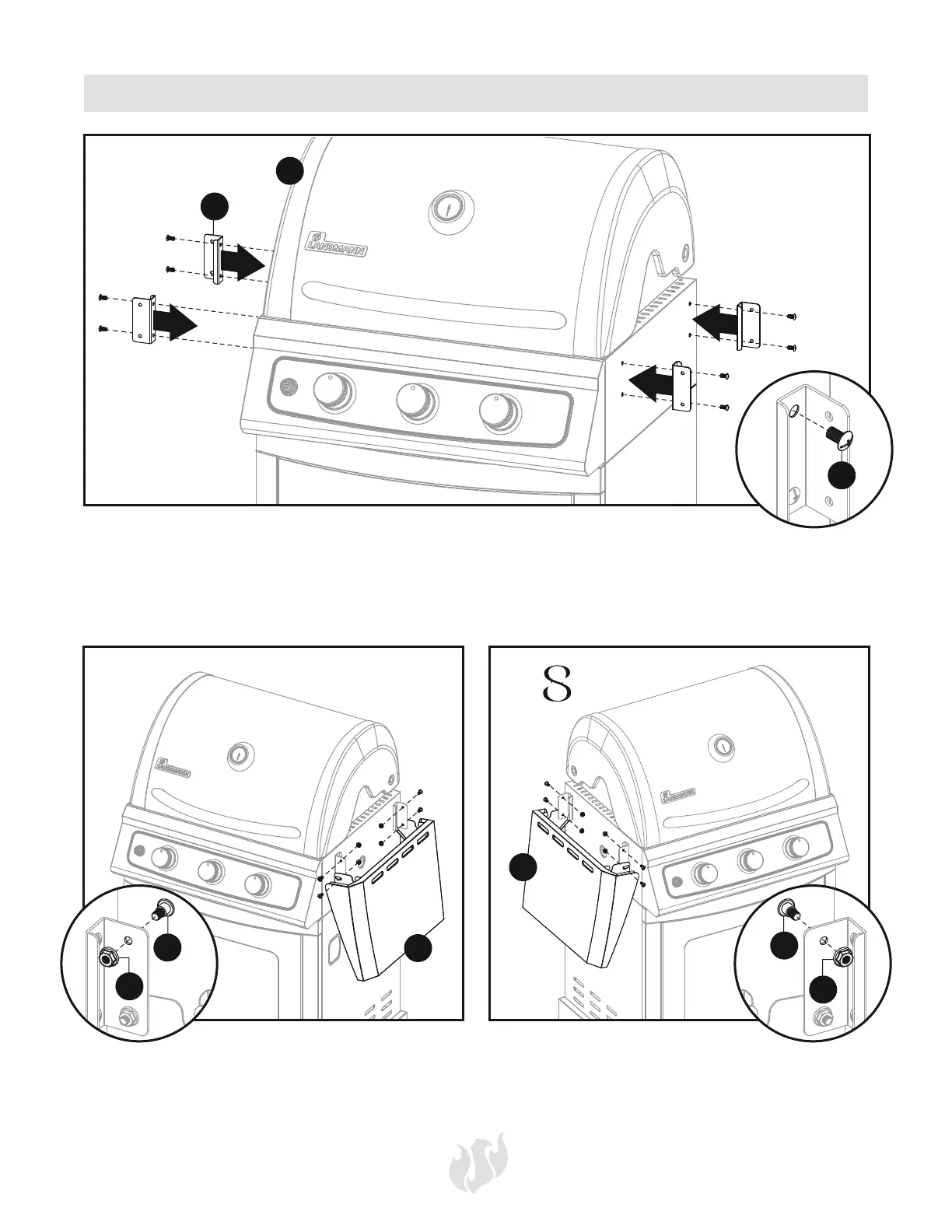

Attach side shelf brackets (M) to left and right side of the grill body (J). Secure using bolts (AA) as shown.
2
J
M
16
AA
1818
N
CC
x4 CC DD
Attach left shelf (N) to side shelf brackets with step
bolts (DD) and M6 nuts (CC) as shown.
