58
TECHNICAL DATA CONT’D
GCCO-C MODEL STRAPPING
The Front Control panel of the Lang “Purple” computer must be configured to match the model of oven it is being installed
in. To configure the front control panel, you must change the arrangement of the Strapping Bars located at the bottom of
the circuit board just above the ribbon connection. Each model has its own strapping configuration, which must
be set by the

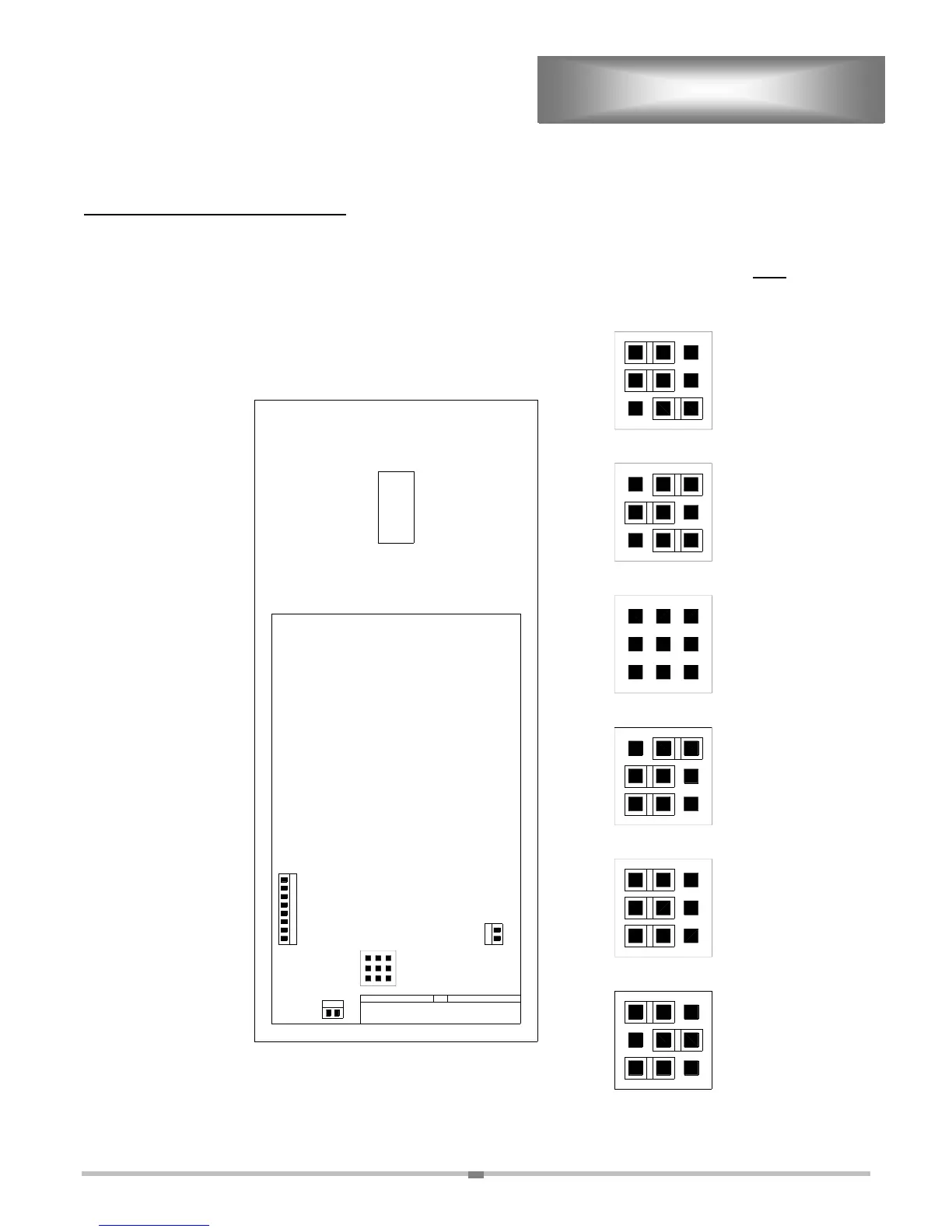

service technician. Follow the diagram below for the proper strapping configuration.
POWER SWITCH
RIBBON CONNECTOR
8-PIN CONNECTOR
PROBE CONNECTION
BACK OF CIRCUIT
BOARD
ECCO-C
ECCO-STM
GCCO-C
GCCO-STM
EHS-C
GHS-C
