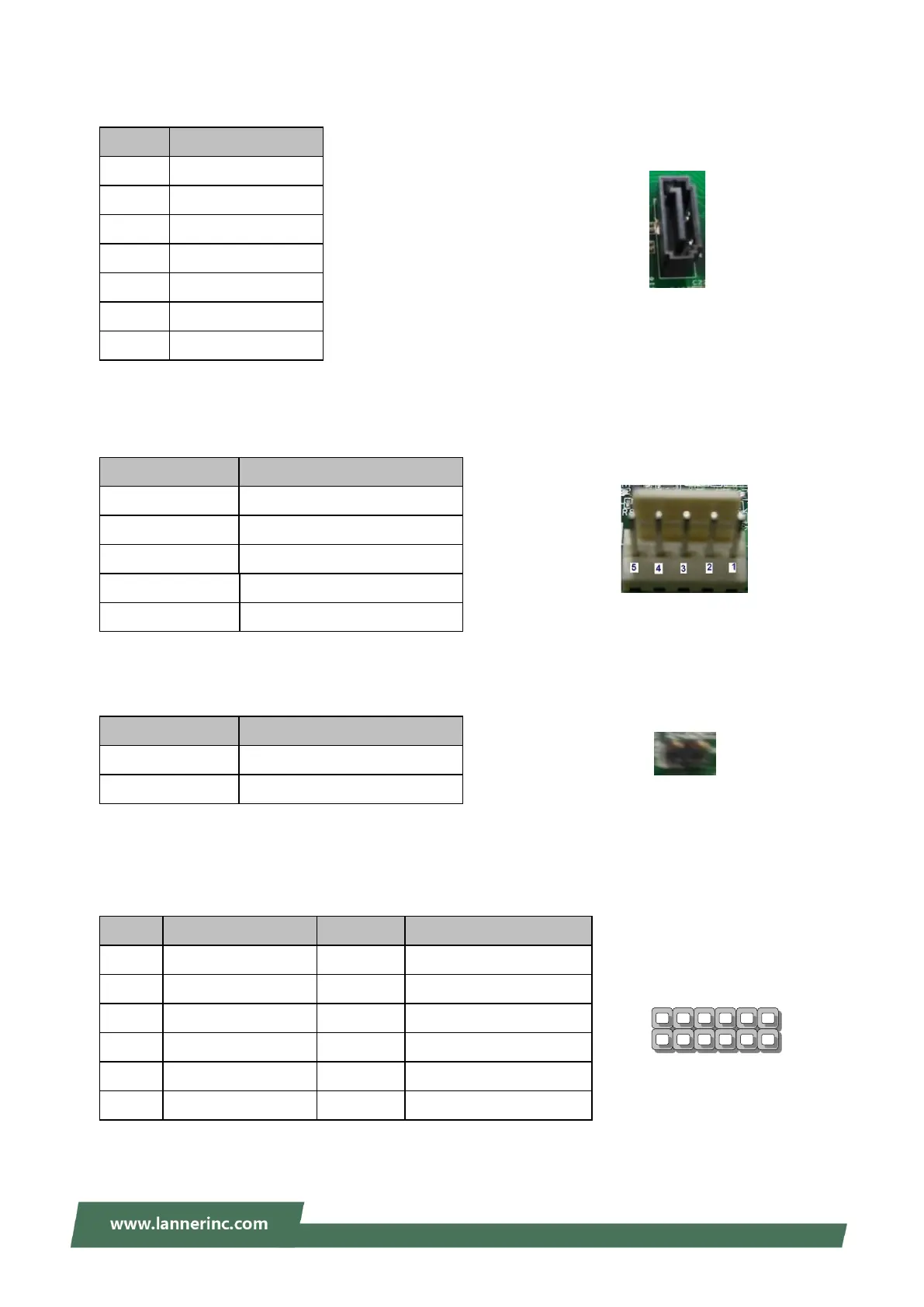

SATA1~SATA4: SATA 7-pin signal connectors
Pin
Description
1
GND
2
TX_P
3
TX_N
4
GND
5
RX_N
6
RX_P
7
GND
Note: SATA3/4 is reserved for customization requests. When all SATA ports are used, SLOT2’s support for
PCIe will be reduced to only PCIe x4 *1.
FAN1~4: 5-Pin CPU FAN connectors
Pin
Description
1
Ground
2
+12V
3
RPM Sense OUT1
4
RPM Sense OUT2
5
PWM Control IN
CASOPEN1: Case open detect Pin Header. This pin header is implemented to detect any action that opens
the chassis.
Pin
Description
1
GND
2
SIO_CSOPEN#
JTPM1: TPM (Trusted Computing) Module Pin Header.
To enable TPM functions, the module must be installed on this pin header.
Pin
Description
Pin
Description
1
SERIRQ
2
+3V_STANDBY
3
LAD0
4
+3V_STANDBY
5
LAD1
6
Ground
7
LFRAME_N
8
KEY
9
LPCCLK_24M
10
TPMRST_N
11
LAD2
12
LAD3
11
12
2
1
