Lanner NCA-5210 - JVGA1: 12-Pin VGA Connector (enabled from the IPMI card); JCOM2: COM PORT 2 internal pin header; JUSB2: USB 2.0 Port3;4 pin header

26

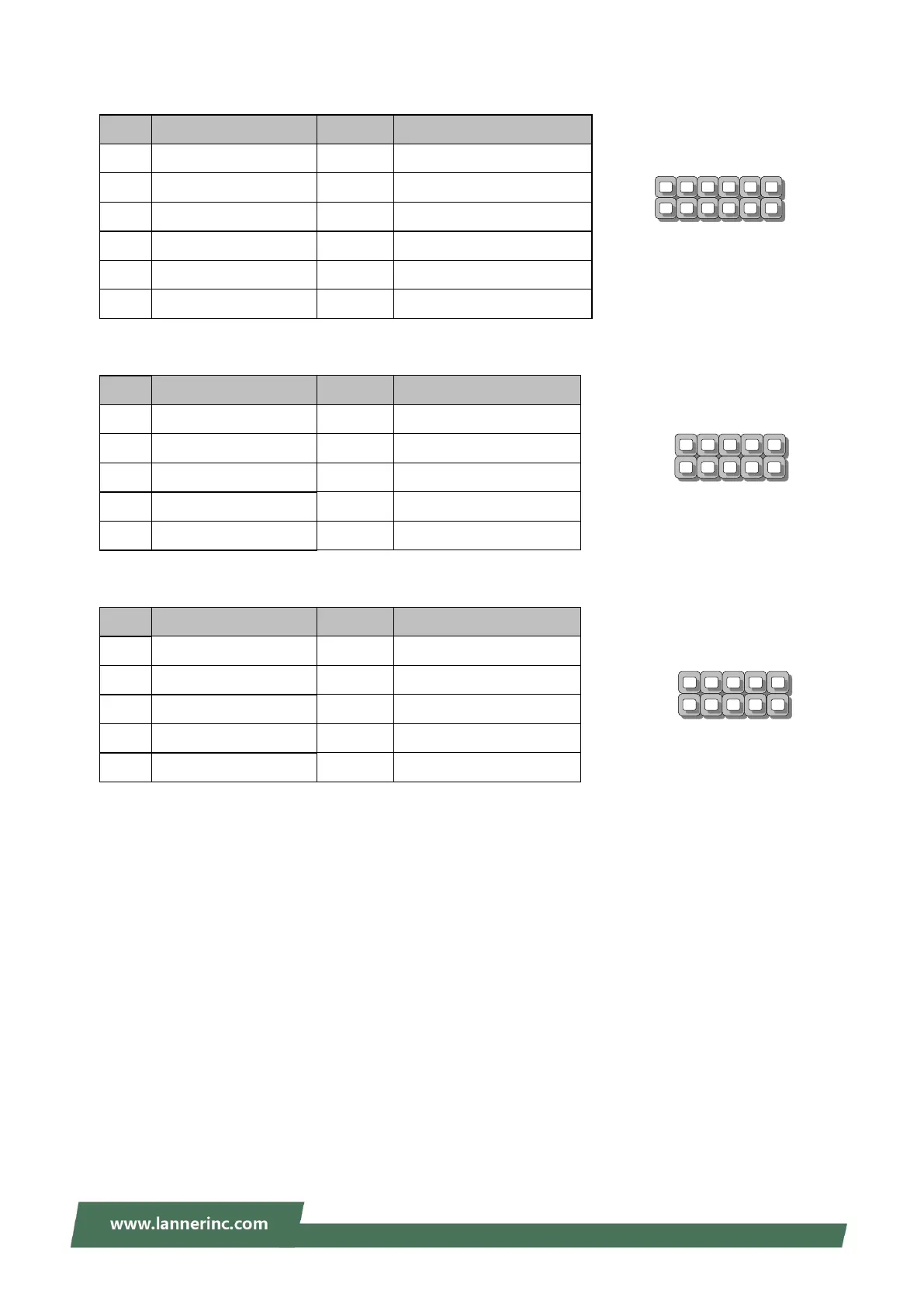

JVGA1: 12-Pin VGA Connector (enabled from the IPMI card)
Pin
Description
Pin
Description
1
R
2
Ground
3
G
4
Ground
5
B
6
Ground
7
H-SYNC
8
Ground
9
V-SYNC
10
Ground
11
Detect-display Data
12
Detect-display CLOCK
JCOM2: COM PORT 2 internal pin header
Pin
Description
Pin
Description
1
MDCDB_N-
2
MDSRB_N
3
MSINB
4
MRTSB_N
5
MSOUTB
6
MCTSB_N
7
MDTRB_N
8
NC
9
GND
10
NC
JUSB2: USB 2.0 Port3/4 pin header
Pin
Description
Pin
Description
1
USB_VCC
2
USB_VCC
3
USBD2-
4
USBD3-
5
USBD2+
6
USBD3+
7
Ground
8
Ground
9
USB Port#3Ground
10
USB Port#4 Ground
2
10
9
1
2
10
9
1
11
12
2
1
