Lanner NCA-5210 - MSATA1: mSATA socket for storage devices

28

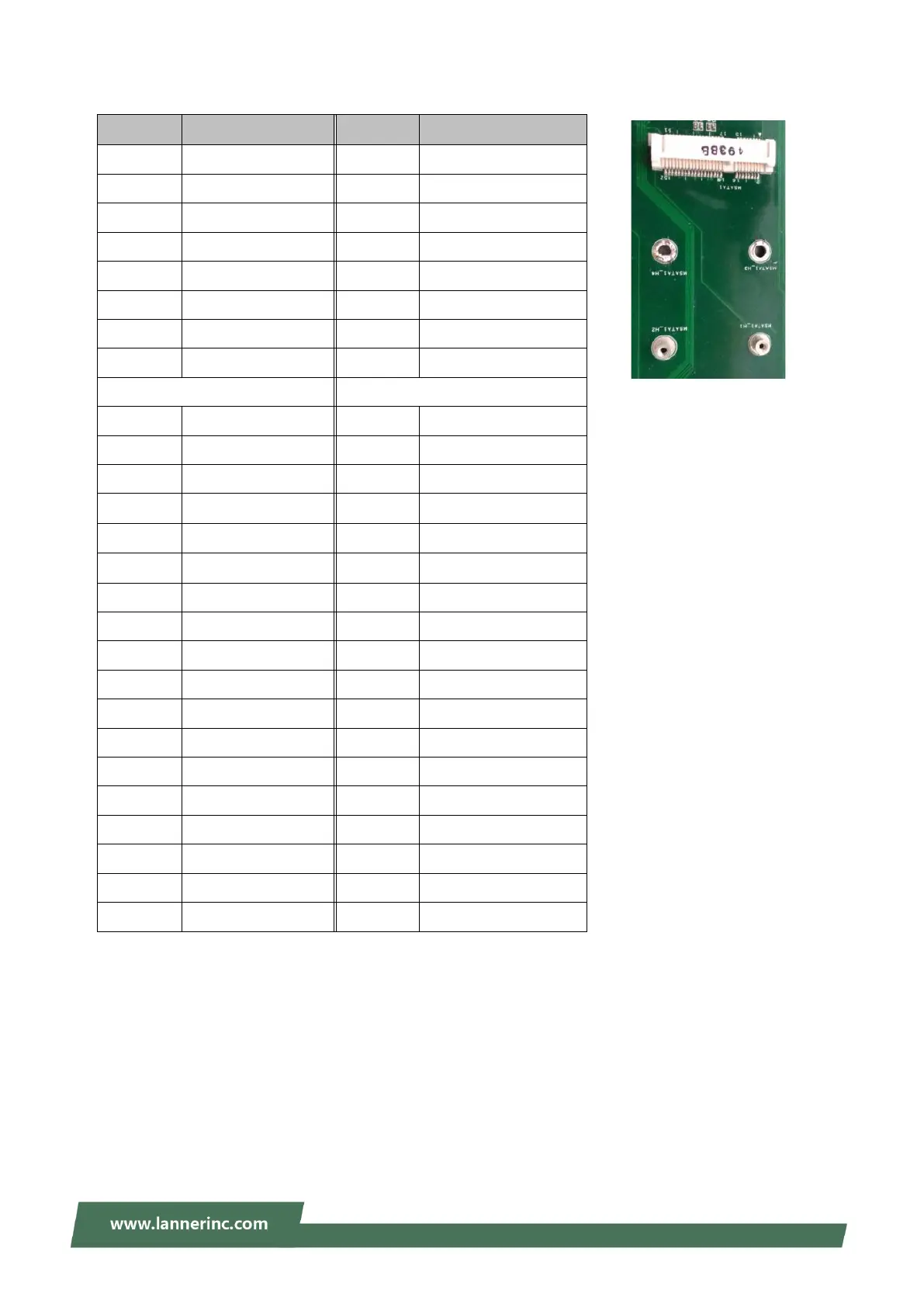

MSATA1: mSATA socket for storage devices
Pin
Description
Pin
Description
1
NC
2
+3.3V
3
NC
4
Ground
5
NC
6
NC
7
NC
8
NC
9
Ground
10
NC
11
NC
12
NC
13
NC
14
NC
15
Ground
16
NC
KEY
KEY
17
NC
18
Ground
19
NC
20
NC
21
GND5
22
NC
23
SATA_RX_P
24
+3.3V
25
SATA_RX_N
26
Ground
27
Ground
28
NC
29
Ground
30
SMB_SLK
31
SATA_TX_N
32
SMB_DATA
33
SATA_TX_P
34
Ground
35
Ground
36
NC
37
Ground
38
NC
39
+3.3V
40
Ground
41
+3.3V
42
NC
43
Ground
44
NC
45
NC
46
NC
47
NC
48
NC
49
DA/DSS
50
Ground
51
Presence Detect
52
+3.3V
