Lanner NCA-5210 - JUSB3: 2 x USB3.0 ports pin header; J80 PORT1: 80 Port debug Connector (For Factory debug Only)

29

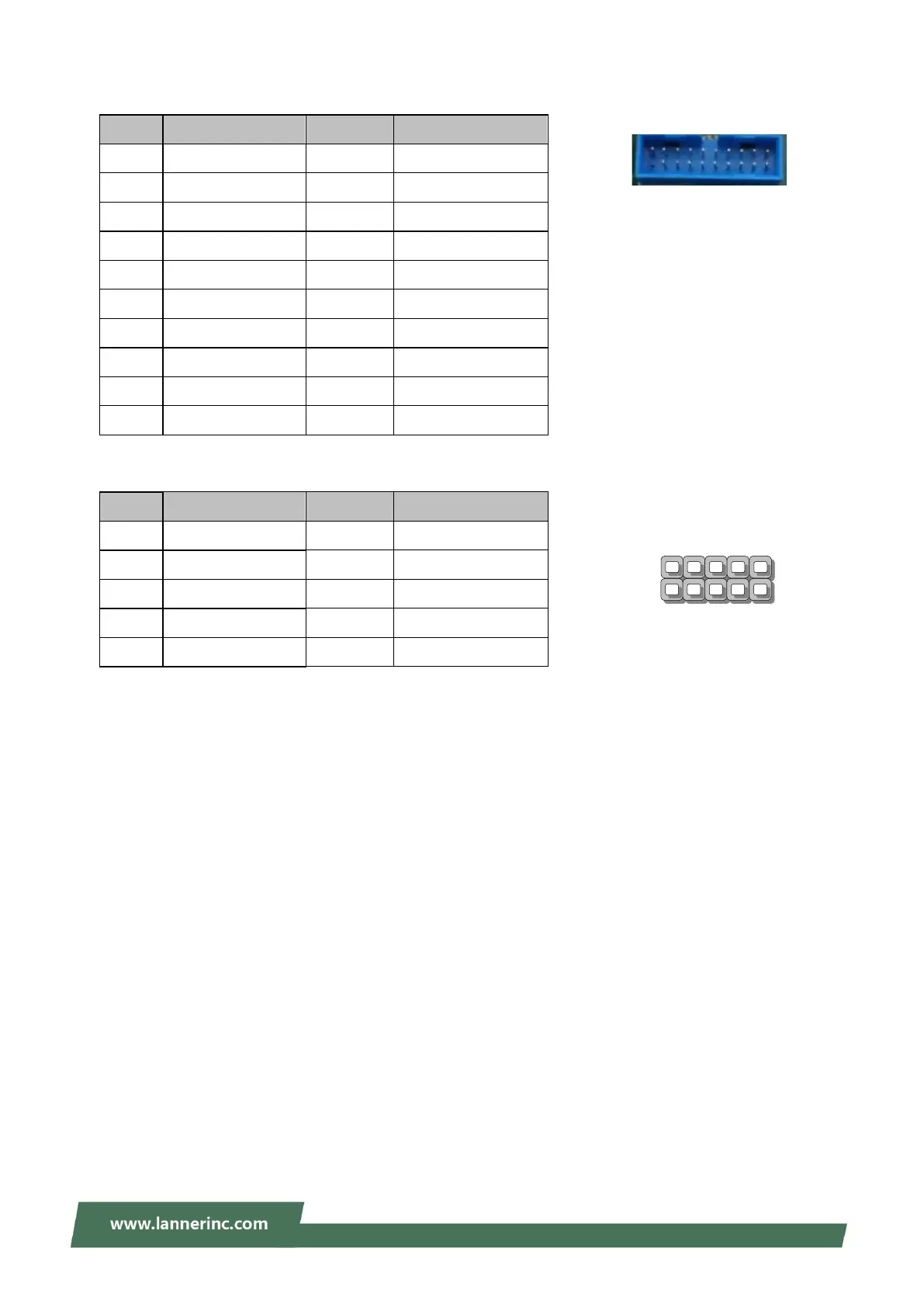

JUSB3: 2 x USB3.0 ports pin header
Pin
Description
Pin
Description
1
+5V
20
Key
2
USB3_RX1_N
19
+5V
3
USB3_RX1_P
18
USB3_RX2_N
4
Ground
17
USB3_RX2_P
5
USB3_TX1_N
16
Ground
6
USB3_TX1_P
15
USB3_TX2_N
7
Ground
14
USB3_TX2_P
8
USB5_N
13
Ground
9
USB5_P
12
USB6_N
10
NC
11
USB6_P
J80PORT1: 80 Port debug Connector (For Factory debug Only)
Pin
Description
Pin
Description
1
80PORTCLK_24M
2
LAD1
3
LPCRST_N
4
LAD0
5
LFRAME_N
6
+3.3V
7
LAD3
8
NC
LAD2
10
Ground
2
10
9
1
