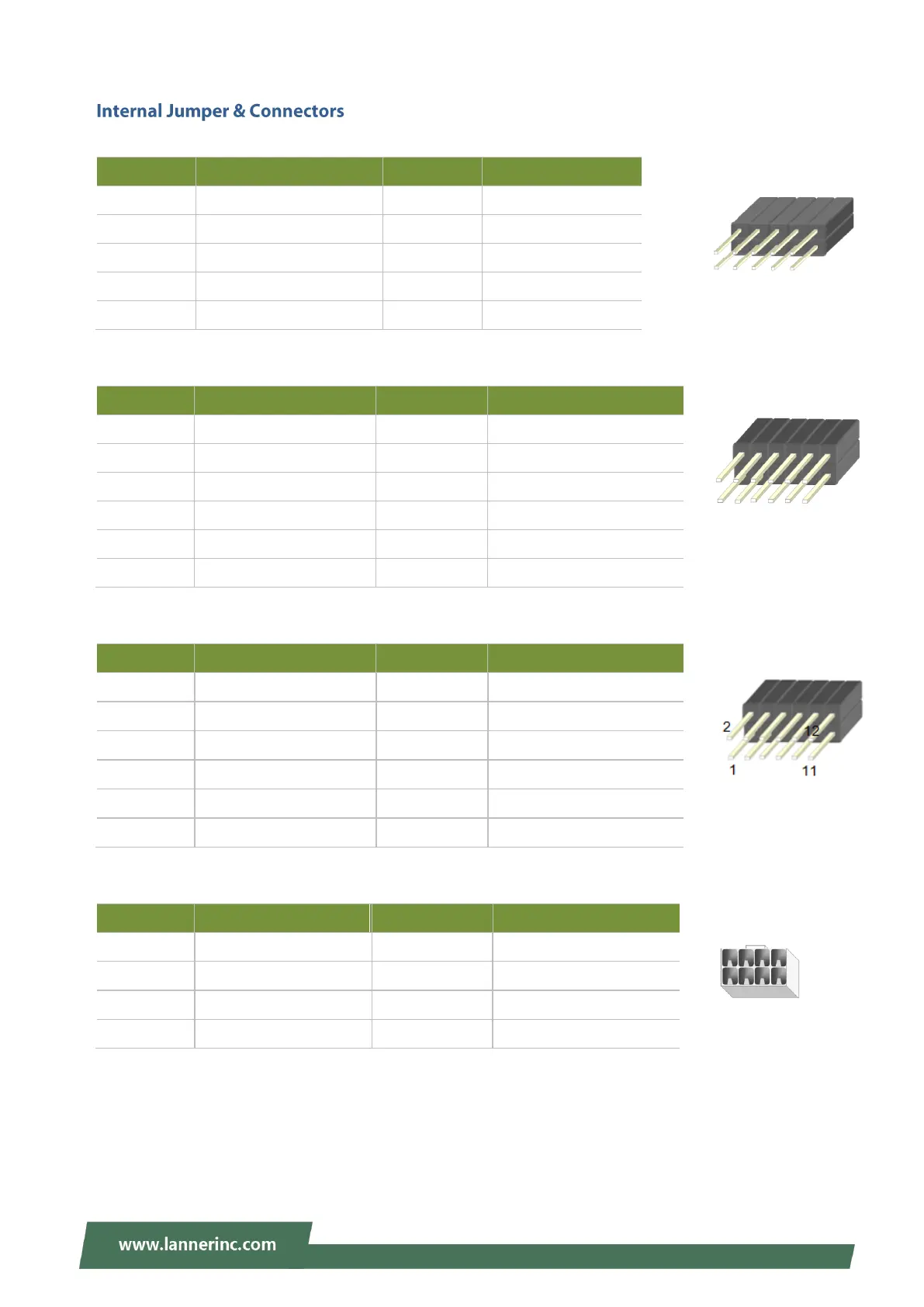

Lanner NCA-5710 - Internal Jumpers and Connectors

NCA-5710 User Manual
19
JUSB1: USB2.0
Pin No.
Description
Pin No.
Description
1
+P5V_USB1
2
+P5V_USB1
3
USB20_L_N3
4
USB20_L_N4
5
USB20_L_P3
6
USB20_L_P4
7
USBGND1
8
USBGND1
9
USBGND1
10
USBGND1
JTPM1
Pin No.
Description
Pin No.
Description
1
IRQ_SERIAL
2
LPC_LFRAME#
3
LPC_LAD0
4
CLK_24M_LPC
5
LPC_LAD1
6
+P3V3_AUX
7
LPC_LAD2
8
9
LPC_LAD3
10
+P3V3
11
TPM_RST#
12
GND
JVGA1
Pin No.
Description
Pin No.
Description
1
DAC_RO
2
GND
3
DAC_GO
4
GND
5
DAC_BO
6
GND
7
HSYNC_O
8
9
VSYNC_O
10
GND
11
DDC_DATA
12
DDC_CLK
JATX6: 8 Pin Power Connector
Pin No.
Description
Pin No.
Description
1
GND
2
+P5V
3
GND
4
+P5V_SB
5
GND
6
+P12V_STBY_PSU
7
GND
8
+P12V_STBY_PSU
2
10
9
1
11
12
2
1
