Lanner NCA-5710 - Page 20

Chapter 1: Product Overview
20

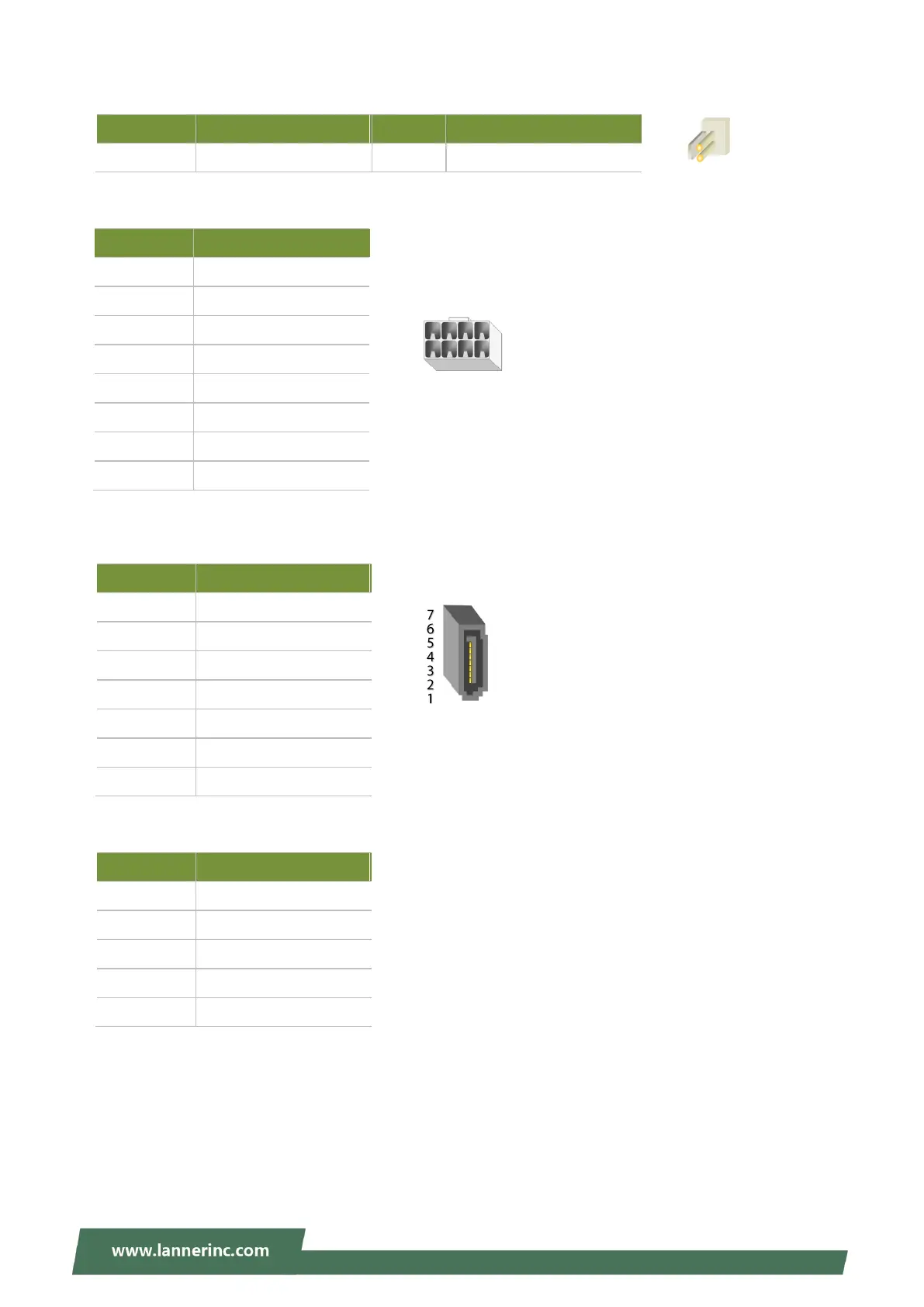

JNMI1
Pin No.
Description
Pin No.
Description
1
GND
2
NMIBTN#
JATX2 & JATX4: 8 pin Power Connector
JSATA1~JSATA4: SATA
Pin No.
Description
1
GND
2
TX_P
3
TX_N
4
GND
5
RX_N
6
RX_P
7
GND
JFAN1~6: FAN Connector
Pin No.
Description
1
PWM Status
2
RPM Sense
3
RPM Sense
4
12V
5
Ground
Pin No.
Description
1
GND
2
GND
3
GND
4
GND
5
+12V
6
+12V
7
+12V
8
+12V
