Installing the System into the Rack

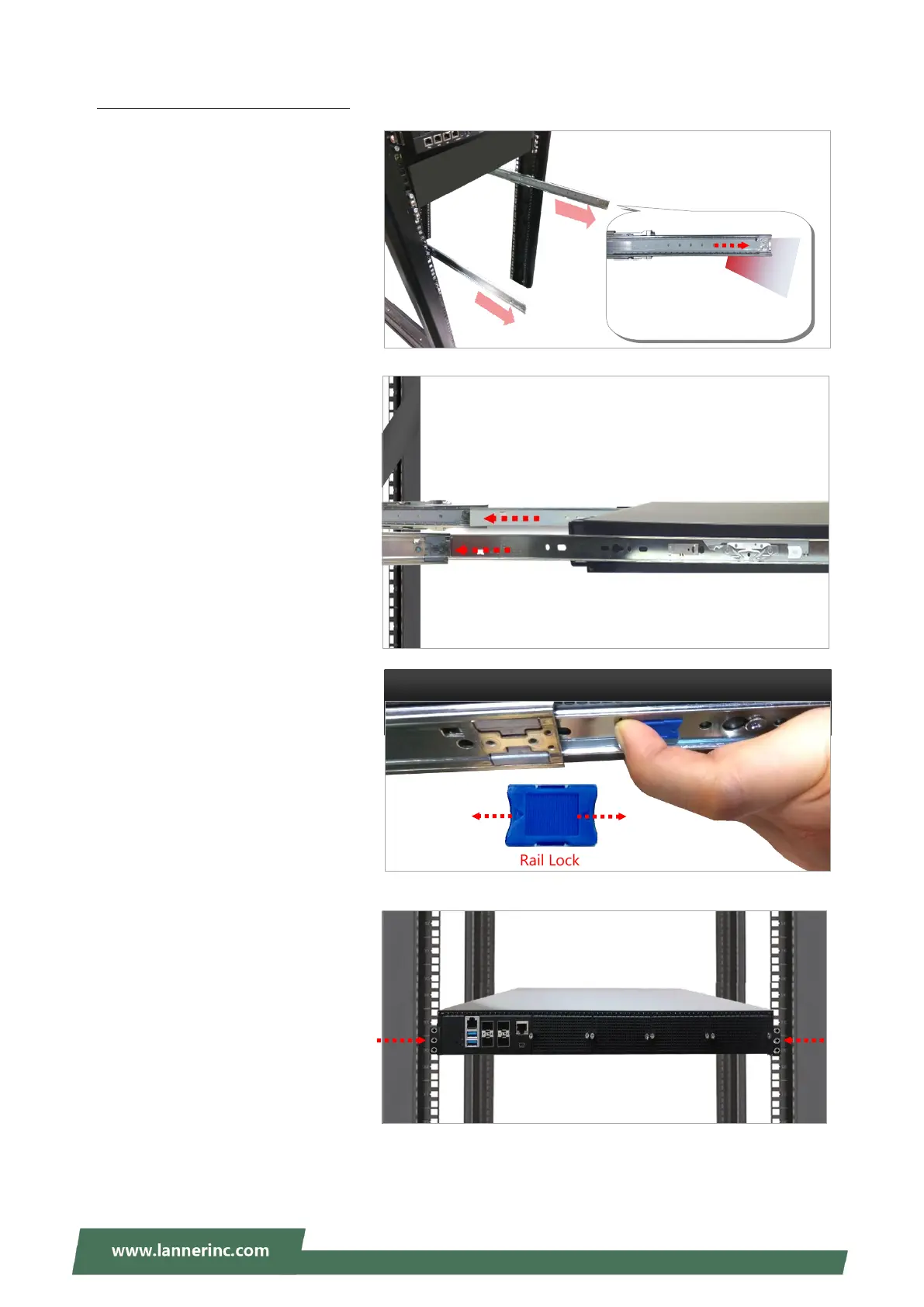

1. Stretch both of the Inner Channels
out to their fullest extent. You will
hear a click sound when they are
fully stretched and stop.
2. Hold the system with its front
facing you, lift the chassis and
gently engage the Rail Brackets on
the model while aligning them with
the slide-rail assemblies as shown
in the image, and then push the
system into the cabinet.
While pushing in the system, please
also push and hold the Rail Lock
tab on both Rail Brackets.
3. Secure the Ear Brackets onto both
front posts with provided screws.
The inner rail will click
when it is fully stretched.
