This chapter describes the various MPS models and shows how to
install them into a basic network situation.
MPS/LPS Product Description

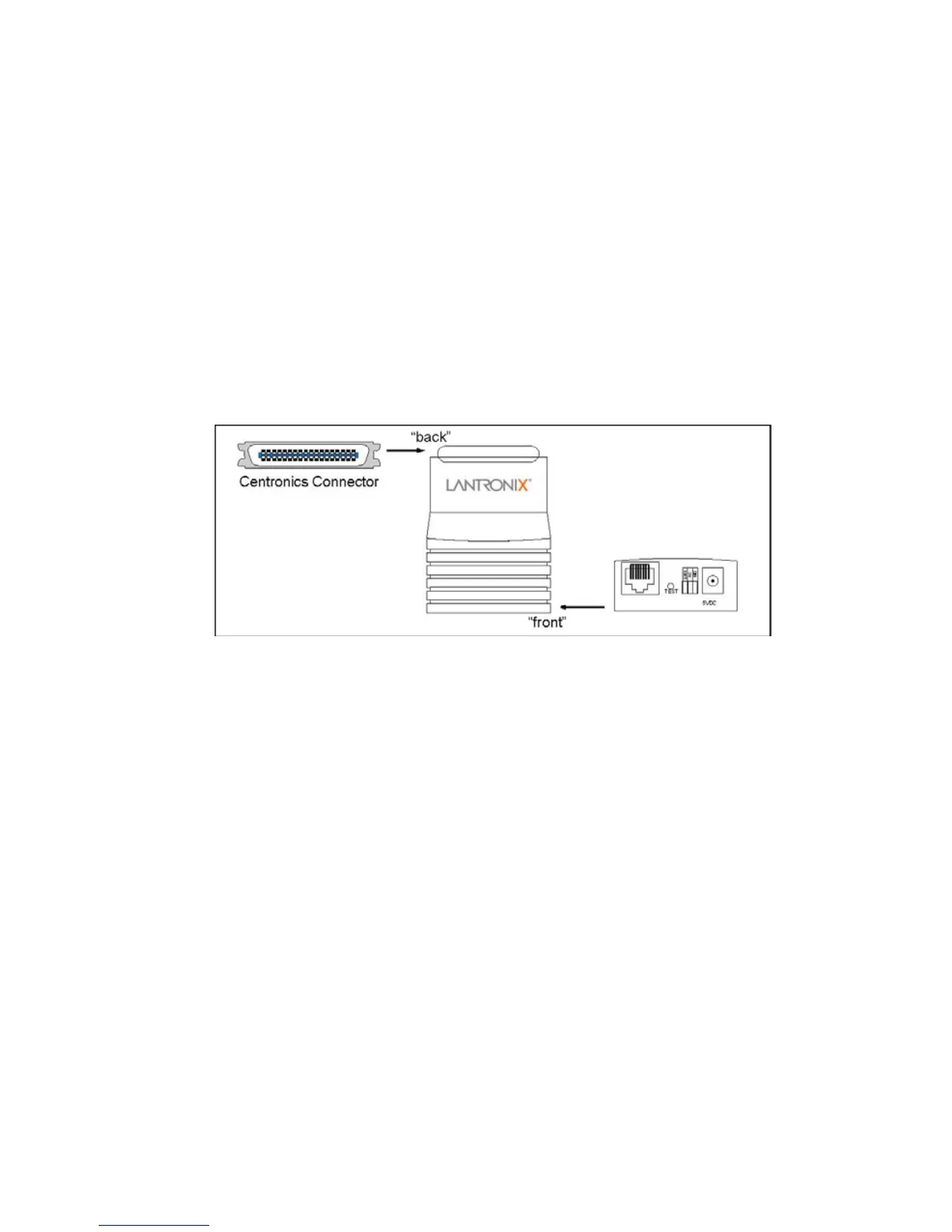

The front panel of the MPS100 has a Test button, three LEDs, a
power connector, and an RJ45 connector for 100BASE-T. The rear
panel has a Centronics connector.
The front panel of the LPS has a Test button, two LEDs, a power
connector, and a 10BASE-T network connector for the LPS1-T. The
rear panel also has a Centronics connector.
The front panel LEDs are:
The LINK LED is solid green when there is a valid
Ethernet network connection.
The ACT (Activity) LED flashes green or red when the
MPS is in use.
The 100 (100 MBit) LED (MPS100 only) is solid green
when a 100BASE-T network is connected.
The Test button serves two functions. When pressed briefly, it
prints a test page. When pressed for 10 seconds while plugging in
the power cable, it returns the MPS to its factory default
configuration.
