Lantronix SISPM1040-xxxx-L3 Install Guide
33855 Rev. A https://www.lantronix.com/ 16
Mounting the Switch in a 19-inch Rack
1. Attach the mounting brackets to both sides of the chassis. Insert screws and tighten then with a screwdriver
to secure the brackets.

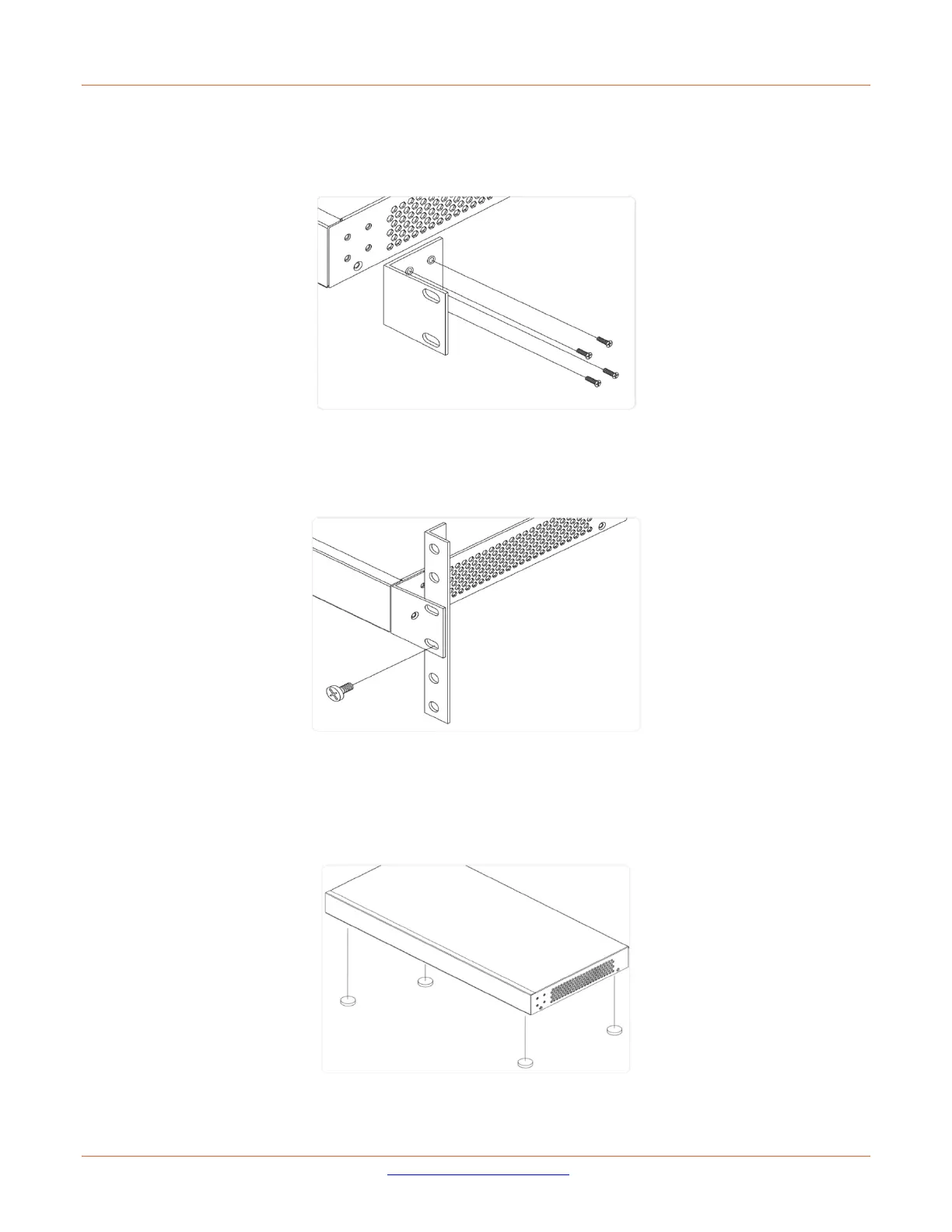

Attaching Brackets to the Switch
2. Place the switch on a rack shelf in the rack. Push it in until the oval holes in the brackets align with the
mounting holes in the rack posts.
3. Attach the brackets to the posts. Insert screws and tighten them.
Attaching Brackets to the Rack Post
Mounting the Switch on Desk or Shelf
1. Verify that the workbench is sturdy and reliably grounded.
2. Attach the four adhesive rubber feet to the bottom of the switch.
Attaching the Rubber Feet
