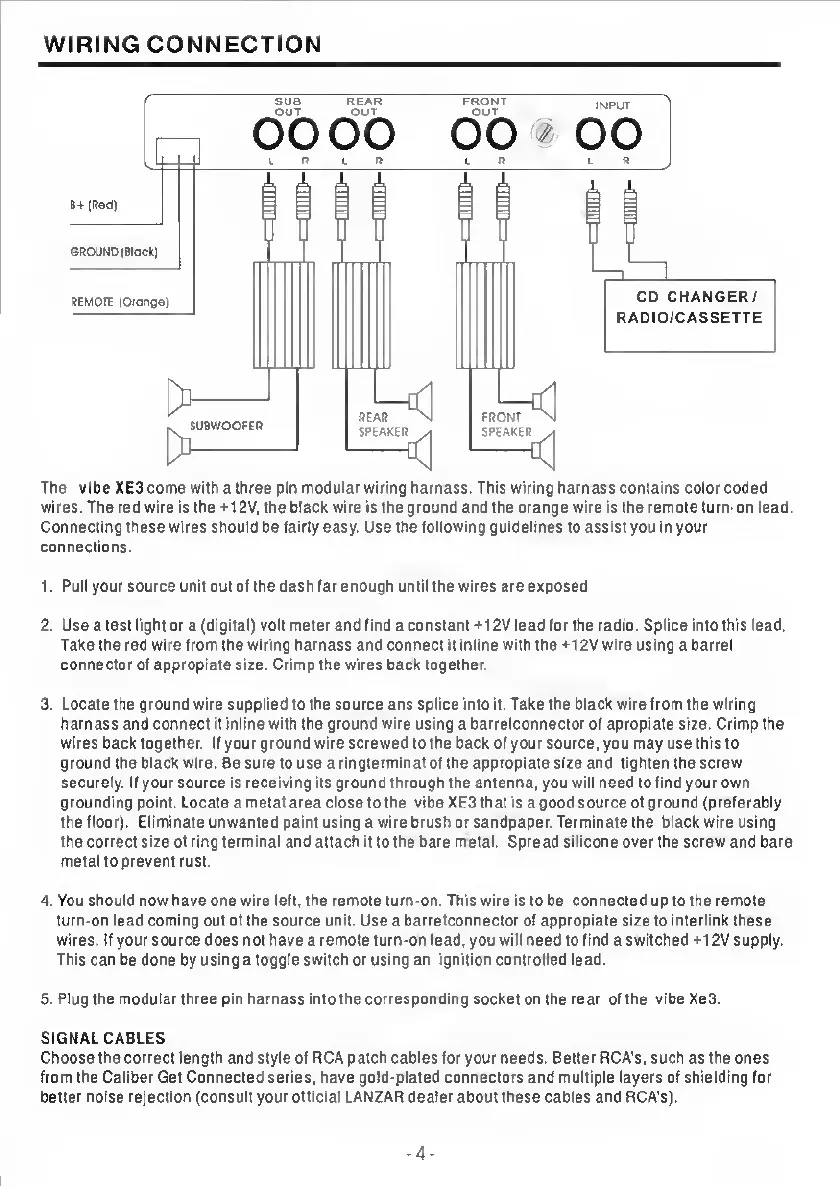

WIRING
CONNECTION
The
vibe
XEScome
with
a
three
pin
modular
wiring
harness.
This
wiring
harness
contains
color
coded
wires.
The
red
wire
is
the+12V,
the
black
wire
is
the
ground
and
the
orange
wire
is
the
remote
turn-on
lead.
Connecting
these
wires
should
be
fairly
easy.
Use
the
following
guidelines
to
assist
you
In
your
connections.
1.
Pull
your
source
unit
out
of
the
dash
far
enough
until
the
wires
are
exposed
2.
Use
a
lest
light
or
a
(digital)
volt
meter
and
find
a
constant
-r-l
2V
lead
for
the
radio.
Splice
into
this
lead.
Take
the
red
wire
from
the
wiring
harnass
and
connect
it
inline
with
the'»'12V
wire
using
a
barrel
connector
of
appropiate
size.
Crimp
the
wires
back
logelher.
3.
Locate
the
ground
wire
supplied
to
the
source
ans
splice
into
it.
Take
the
black
wire
from
the
wiring
harnass
and
conneot
it
inline
with
the
ground
wire
using
a
barrelconnector
of
apropiate
size.
Crimp
the
wires
back
together.
Ifyour
ground
wire
screwed
lothebackof
your
source,
you
may
use
this
to
ground
the
black
wire.
Besure
to
use
a
ringlermlnal
of
the
appropiate
size
and
tighten
the
screw
securely.
If
your
source
is
receiving
its
ground
through
the
antenna,
you
will
need
to
find
your
own
grounding
point.
Locale
a
metal
area
close
to
the
vibeXE3
that
Is
a
good
source
of
ground
(preferably
the
floor).
Eliminate
unwanted
paint
using
a
wire
brush
or
sandpaper.
Terminate
the
black
wire
using
thecorrect
size
of
ring
terminal
and
attach
It
to
the
bare
metal.
Spread
silicone
over
the
screw
and
bare
metal
to
prevent
rust.
4.
You
should
now
have
one
wire
left,
the
remote
turn-on.
This
wire
Is
to
be
connected
up
to
the
remote
turn-on
lead
coming
out
of
the
source
unit.
Use
a
barrelconnector
of
appropiate
size
to
interlink
these
wires.
If
your
source
does
not
have
a
remote
turn-on
lead,
you
will
need
to
find
a
switched
+12V
supply.
This
can
be
done
by
using
a
toggle
switch
or
using
an
ignition
controlled
lead.
5.
Plug
the
modular
three
pin
harnass
into
the
corresponding
socket
on
the
rear
of
the
vibe
Xe3.
SIGNAL
CABLES
Choose
the
correct
length
and
style
of
RCA
patch
cables
for
your
needs.
Better
RCA's,
such
as
the
ones
from
the
Caliber
Get
Connected
series,
have
gold-plated
connectors
and
multiple
layers
of
shielding
for
better
noise
rejection
(consult
your
official
LANZAR
dealer
about
these
cables
and
RCA's).
-
4
-
