OPERATION

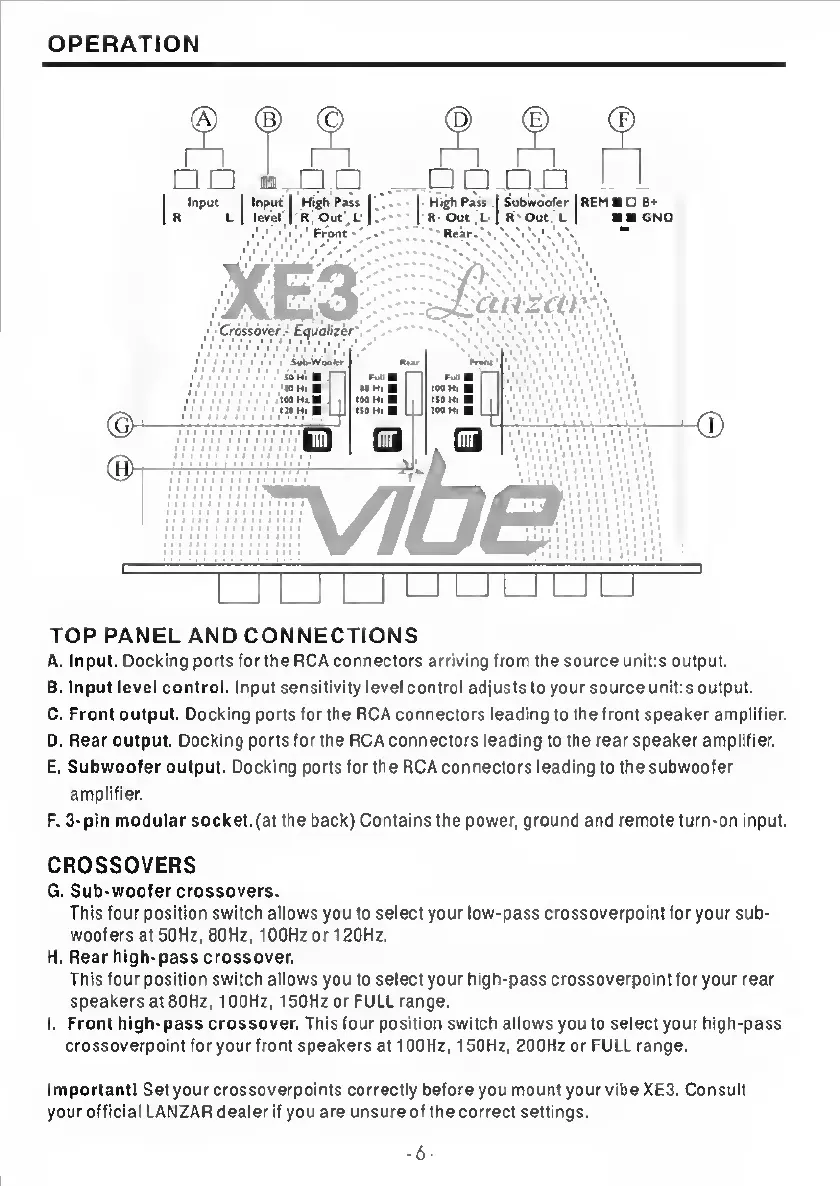

TOP PANEL AND CONNECTIONS
A. Input. Docking ports for the RCA connectors arriving from the source unit:s output.
B. input level control. Input sensitivity ievel controi adjusts to your source unit:s output.
C. Front output. Docking ports for the RCA connectors ieading to the front speaker amplifier.
D. Rear output. Docking ports for the RCA connectors ieading to the rear speaker ampiifier.
E. Subwoofer output. Docking ports for the RCA connectors ieading to the subwoofer
ampiifier.
F. 3-pin moduiar socket.(at the back) Contains the power, ground and remote turn-on input.
CROSSOVERS
G. Sub-woofer crossovers.
This four position switch allows you to select your low-pass crossoverpoint for your sub¬
woofers at 50Hz, 80Hz, 100Hz or 120Hz.
H. Rear high-pass crossover.
This four position switch allows you to select your high-pass crossoverpoint for your rear
speakers at 80Hz, 10OHz, 150Hz or FULL range.
I. Front high-pass crossover. This four position switch allows you to select your high-pass
crossoverpoint for your front speakers at 10OHz, 150Hz, 200Hz or FULL range.
ImportantI Set your crossoverpoints correctly before you mount your vibe XE3. Consult
your official LANZAR dealer if you are unsure of the correct settings.
- 6 -
