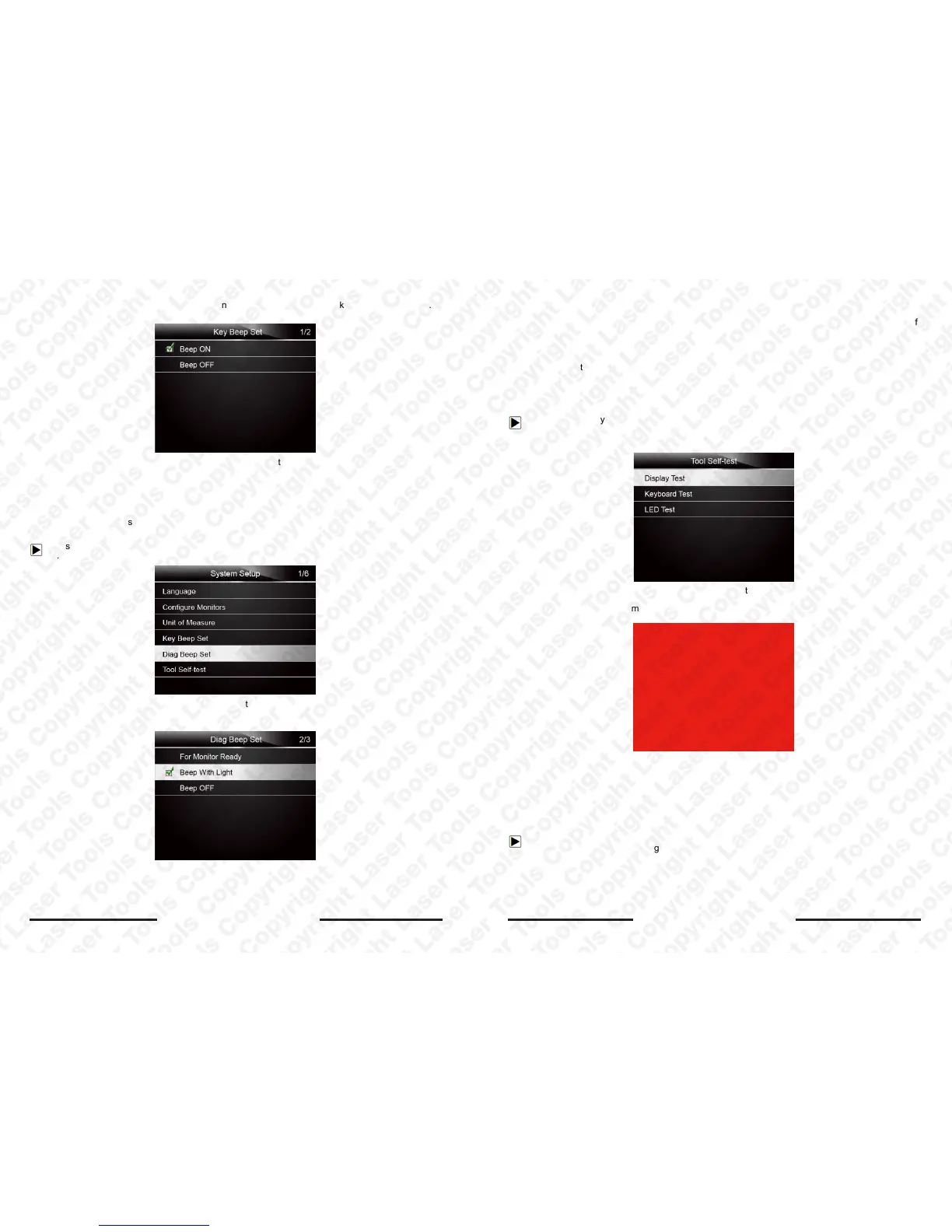

Figure 7-15 Sample Beep Set Selection Screen
7.5 Diag Beep Set
Key beep set opens a dialog box that allows you to turn on/off the built-in speaker when
performing diagnostics.
To set the diag beep:
1. Use the UP/DOWN key to highlight Key Beep Set from Setup menu and press the ENTER key.
Figure 7-16 Sample Setup Screen
2. Press the UP/DOWN key to select an item and press the ENTER key to save and return.
Figure 7-17 Sample Diag Beep Selection Screen
2. Press the UP/DOWN arrow key select an item and press the ENTER key to save and return.
● Keypad Test
● LED Test
7.6.1 Display Test
Selecting Display Test option opens a screen that allows you to check the functionality of the
display.
To test the display:
1. Use the UP/DOWN key to highlight Display Test from Setup menu and press the ENTER key
to start test.
Figure 7-18 Sample Tool Self-test Screen
2. Check if there are any missing spots in the LCD screen.
Figure 7-19 Sample LCD Test Screen
3. To quit the test, press the BACK key.
7.6.2 Keypad Test
Selecting Key Test option opens a screen that allows you to check the functionality of the keypad.
To test the keypad:
1. Use the UP/DOWN key to highlight Keyboard Test from Setup menu and press the ENTER
key.
7.6 Tool Self-test
Key beep set opens a dialog box that allows you to check if the LCD display and the operation of
keypad and LED are working correctly. Typical menu includes:
● Display Test
