24- HAZARD BUTTON COMMAND.
Allows you to connect the YELLOW wire directly to the car's HAZARD button. In this
case, the arrows will flash only in the event of an alarm and not during arming and
disarming.
CAUTION: To drive Hazzard's control by the negative signal, a reversing relay must be
used.
Each function can only be programmed by remote control in the following mode:
1. Disarm the alarm with the remote control.
2. Open the driver's side door (or ground the BLUE wire) and set the ignition key to ON;
3. Press and hold button 2 of the remote control, switch of ignition and release the f
remote control button;
4. The LED will light up steadily and at the same time a short beep will be heard status
(only with function 1 enable).
The programming .is started
To the desired function, press many times as the functionactivate button 1
number Is.
To the desired function, press many times as the function deactivate button 2
number is
enable the ACCIDENTAL ANTIDISINSERT function, "function code 6" Example:
Press button 1 on the radio control for 6 consecutive times;
- The status LED will turn o simultaneously with each press of the radio control ff
button.
- After finishing the 6 presses, wait for 2 seconds;
- the alarm will confirm successful programming with a flashing of the LED and a
short beep
After it will be possible, by the same that way, program other functions.
5. To end programming procedure, turn the ignition key to ON or wait 30 seconds.
In either case, the status LED will turn off instantly.
87
30
85
86
RELAY Optional
GND
ALARM UNIT
YELLOW
Positive
command
Negative
Signal

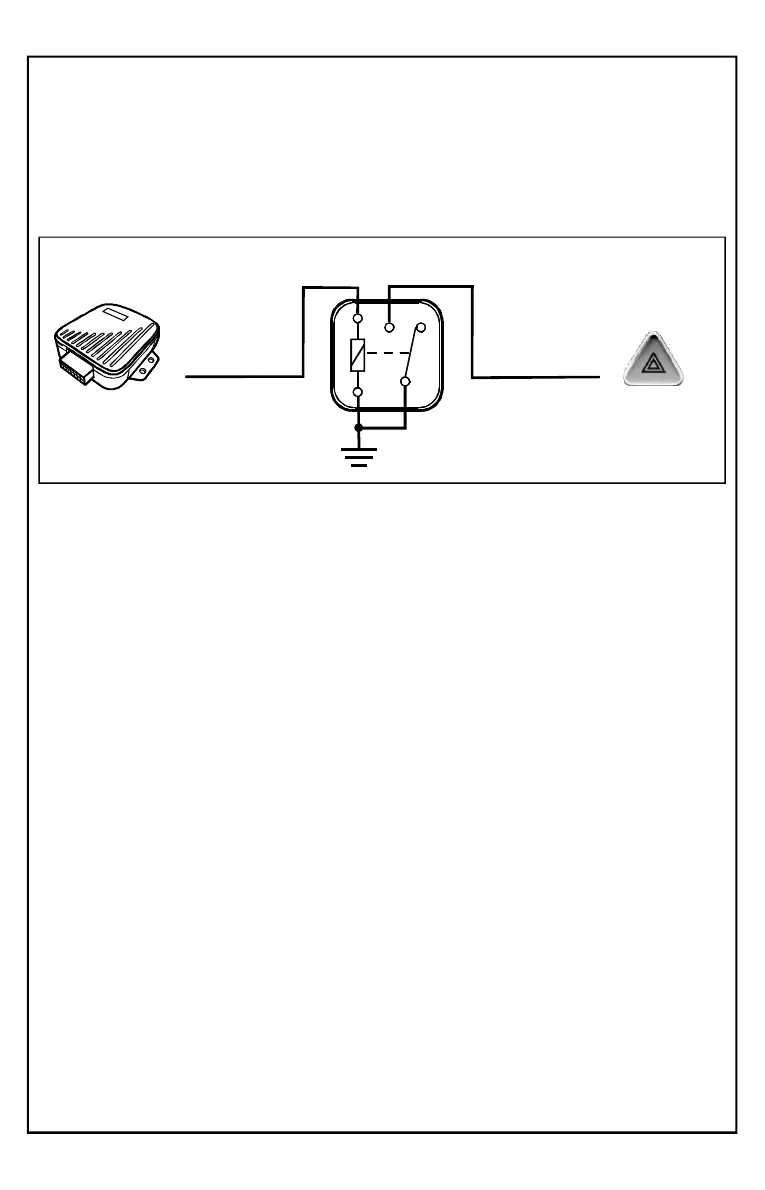

REVERSING RELAY SCHEME
HAZARD
FUNCTION PROGRAMMING PROCEDURE
Pag.27
