Page 22

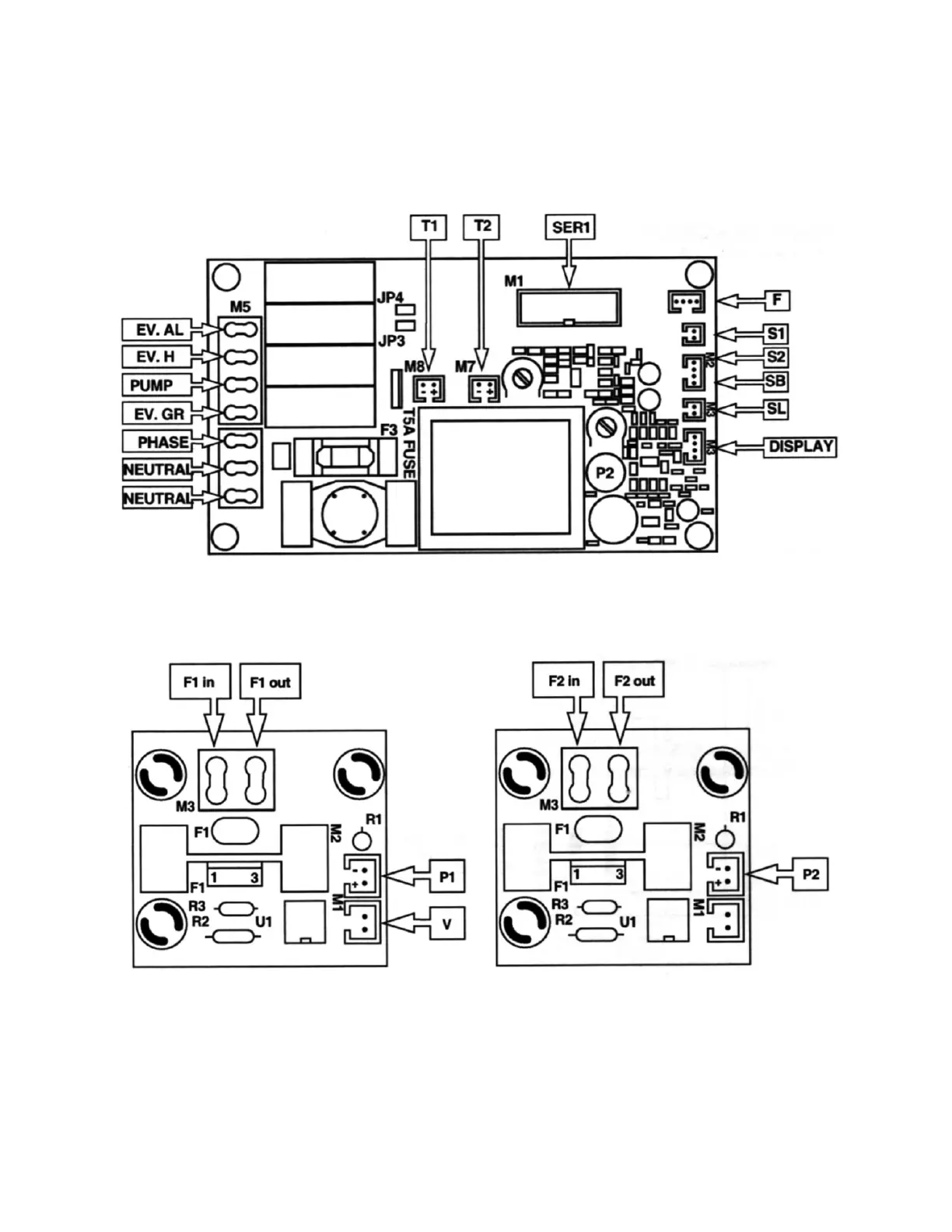

6.2 Control Board Connection Diagram
6.3 Triac Board Connection Diagram
Note these two boards and the fan have been replaced with a single – dual
Solid State Relay module (SSR) on new models.
BOILER TRIAC BD GROUP TRIAC BD
(Cooling Fan is below this board
and runs only when boiler is heating)
To Next Page
