2 Motor pump (if not integrated).
Connect the yellow/green cable (B) to the ground terminal on the motor pump if the motor pump is not integrated into the
machine.
4.
INSTALLATION
Place the machine on a supporting surface, lifting it only from below. Before connecting the machine to the power supply, make sure the
data on the nameplates match the specifications of where it is installed.
4.1

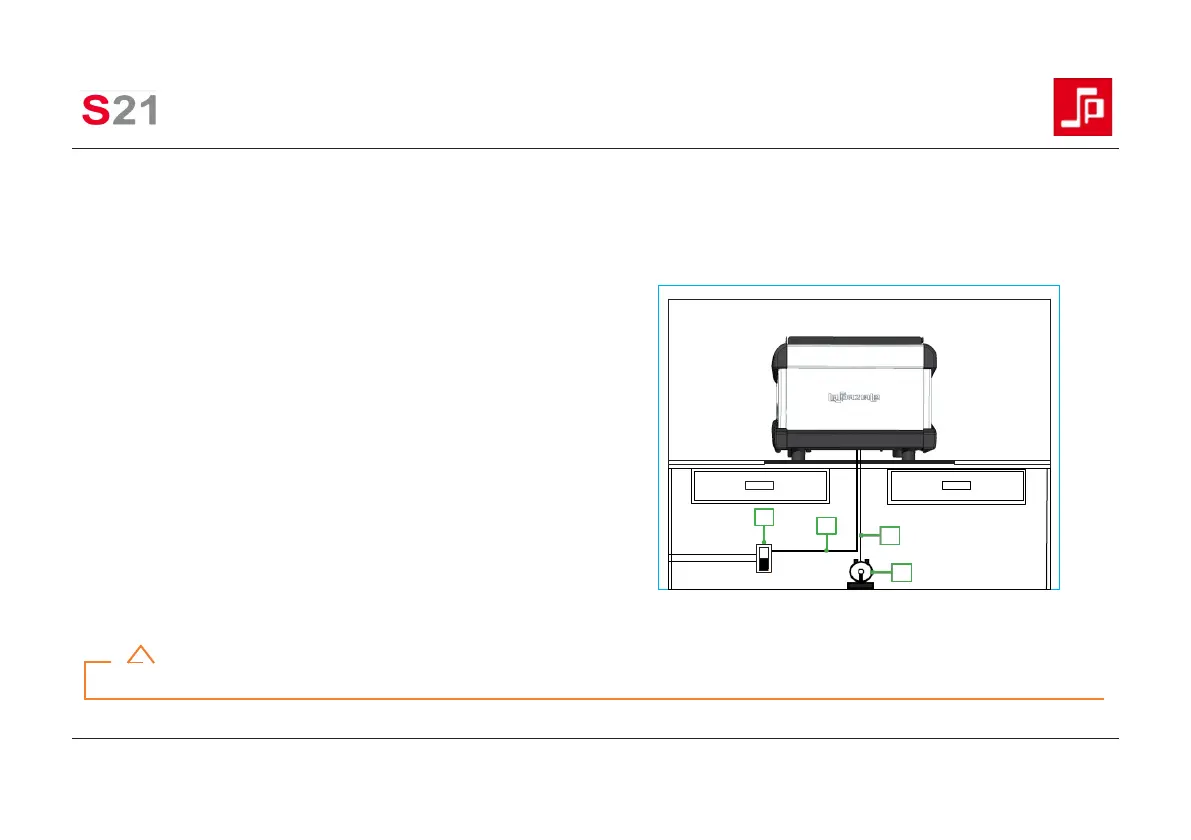

INSTALLATION WIRING DIAGRAM
During electrical connection, refer to all warnings and suggestions in
this manual. In addition, the ali- mentation cable must be completely
uncoiled to avoid danger of overheating. Check the voltage at the
installation point of the machine and connect the power cord, as shown
in the figure below. The machine cables are marked as se- gue: A -
Machine power cable (connected directly to 'main switch 1); B - Motor
pump cable (if not integrated into the machine, connected directly to
motor pump 2).
Versions of the machine with the integrated motor pump do not
have a cable (B).
Legend:
1 Main switch (arranged by the customer);
