Warning.
The machine is supplied without water in the boiler to prevent 'any exposure to a temperature below 0° C, may cause irreparable
damage.
4.2

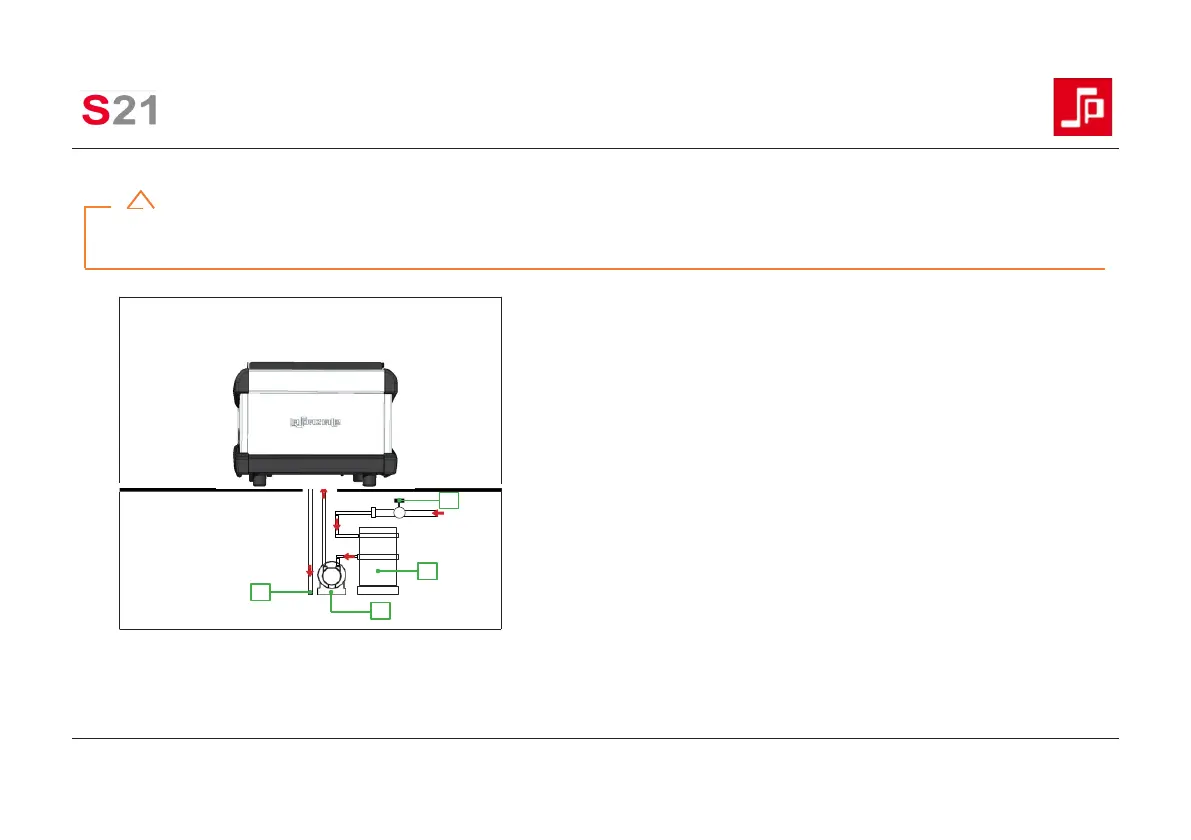

HYDRAULIC INSTALLATION DIAGRAM
Legend:
1 Water tap (previously placed by the customer).
2 Motor pump (supplied with the machine-if not integrated).
3 Water treatment system (optional).
4 Drain trap (previously installed by the customer).
3
4
2
Fig.
8
Make the connections as shown in Fig. 8 following the instructions below:
•
Always use the hoses supplied with the machine for the water supply connection; do not use other hoses already attached.
•
Make sure the hoses are not defective, crushed or kinked.
•
Tighten the hose ferrules firmly but without exerting too much pressure.
