Nozzle bore (Ø) is expressed in hundredths of a mm.
These values refer to the warm-up phase of the machine,
that is, when the gas pressure switch is fully open (with flame at maximum).
Warning.
The appliance does not require flue outlet. For proper installation of the 'gas system, you must comply with applicable laws.
4.5

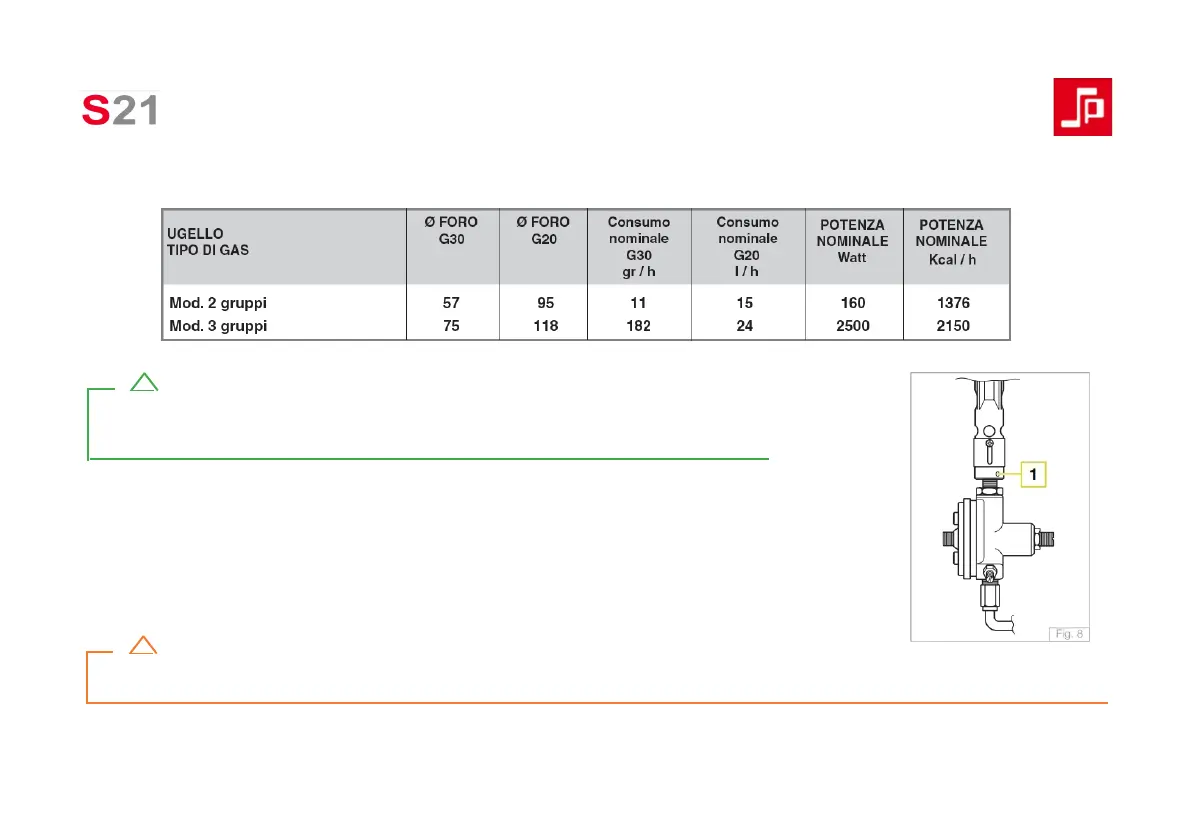

GAS TABLE.
Note.
Adaptation to a different type of gas is done by replacing the nozzle as indicated in the
following instructions and complying with the conditions given in the gas table.
To change the gas nozzle, unscrew fastening screw 1 (Fig. 8, right) and slide out the
fitting toward the pressure switch in order to access the gas nozzle.
Loosen the nozzle and replace it with the one suitable for the type of gas at the place
of installation. Return the fitting to its original position and finally tighten screw 1 again
(Fig. 8).
