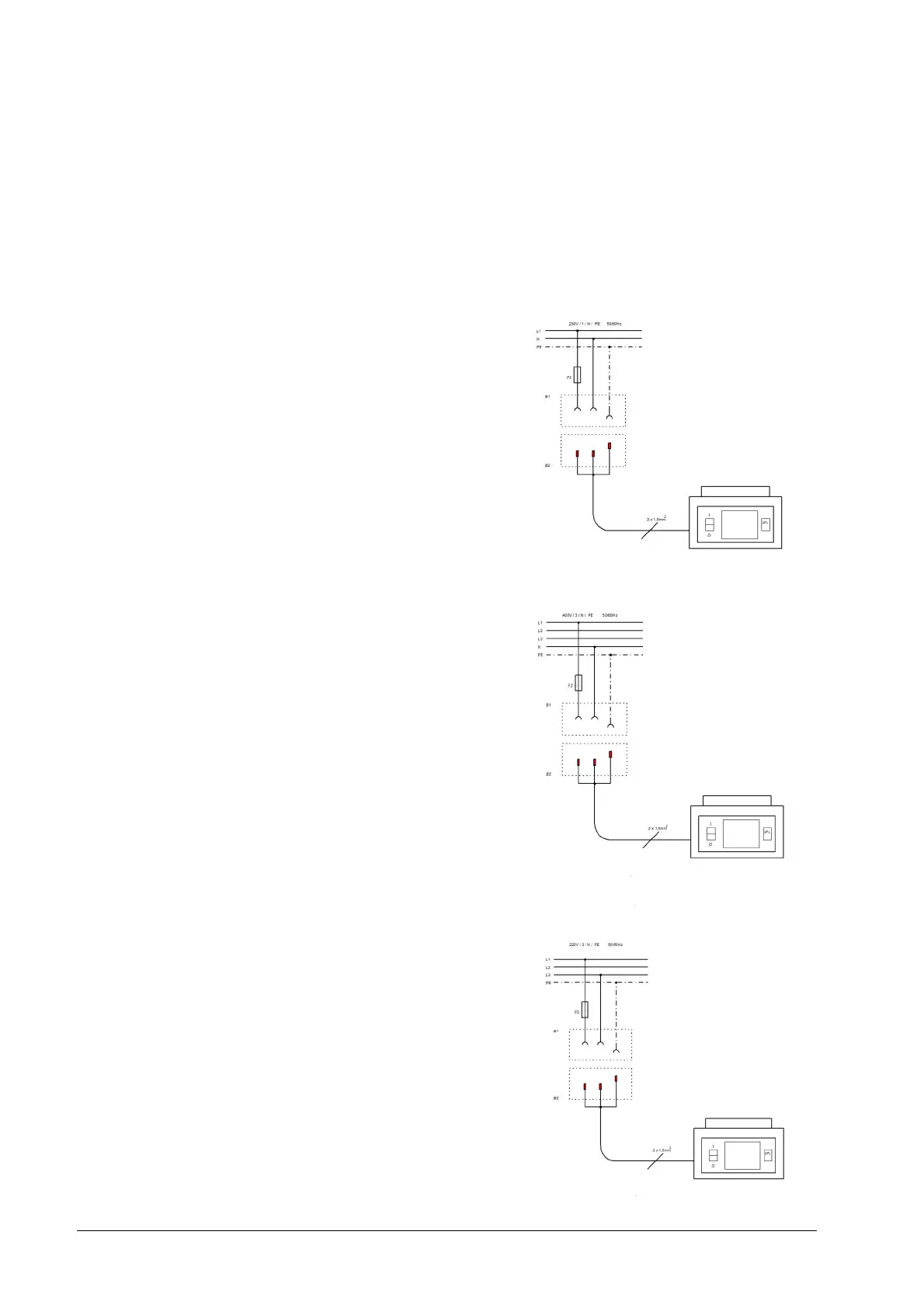

Examples for connection to the mains
14.2
Components
B1 Earthing contact socket (on-site)
B2 Earthing contact plug (mounted on the unit)
F4 Mains fuse (on-site)
F5 Mains fuse (on-site)
Models H 4, H 8, H 16, H 22, H 24, H 41,
H 8 A, H 16 A for 230 V with power
supply 230 V / N / PE / 50/60 Hz,
connected through 3-pole shock-proof
(Schuko) plug system.
Models H 4, H 8, H 16, H 22, H 24, H 41,
H 8 A, H 16 A for 230 V with power
supply 400 V / 3 / N / PE / 50/60 Hz,
connected through 3-pole shock-proof
(Schuko) plug system.
Models H 4, H 8, H 16, H 22, H 24, H 41,
H 8 A, H 16 A for 230 V with power
supply 220 V / 3 / N / PE / 50/60 Hz,
connected through 3-pole shock-proof
(Schuko) plug system.
