Setting Description
Pump In Integral T the pump is switched on or o. No
pump levels can be set.
In the Integral XT the pump level can be entered
with which the segment is to be processed.
S1, S2, S3 The switching state (o or on) of a contact module
(if installed) can be entered here. Contact modules
are available as an accessory.
Examples of the functions of a contact module
n Functions of the inputs
Set fault
Set standby
Control programmer
Control change mode (2 dierent set temperatures)
Regulate internal or external control
n Functions of the outputs
Signal various error states
Signal standby
Specify position with respect to a temperature window (inside or
outside)
Specify programmer status
Signal refilling

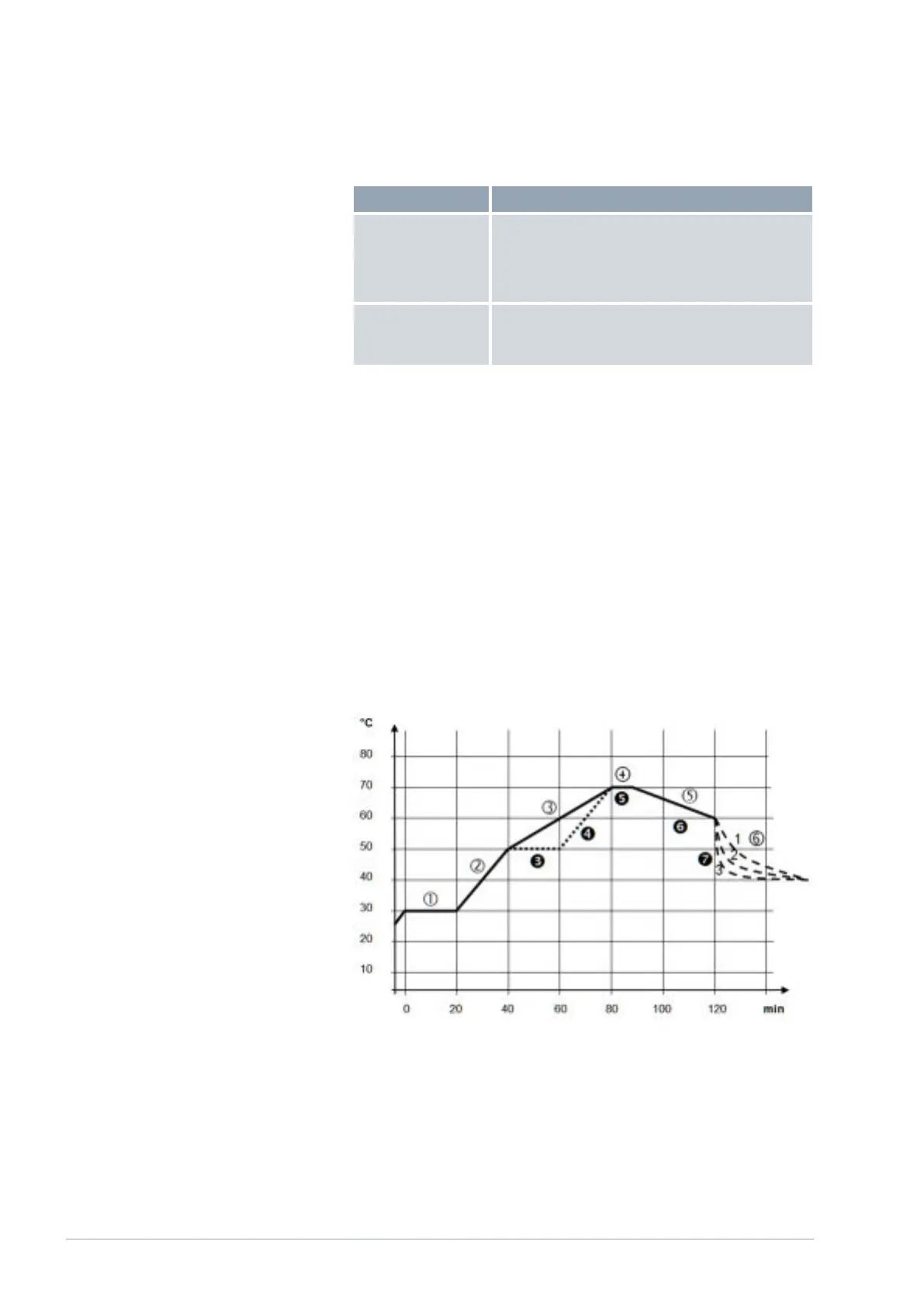

Fig. 63: Program example
The graph shows an example of a reprogrammed set temperature profile.
The cooling time in the graph varies depending on the device type, consumer
and so on. In example segment number 2, 50 °C should be reached within
20 minutes.
The original values in the first table below (before) are represented by a solid
line, while the values in the edited profile in the second table (after) are
represented by a dashed line.
Editing program examples
V6Integral Process Thermostats and High-Temperature Thermostats110 / 198
