T
able 4
Unit
IN 8 XTW
Heating output
‑
400 V; 3/PE~50 H
z & 460 V;
3/PE~60 Hz
k
W
8.0
Current consumption
A
13.5
Subject to technical
modifications!
15.6

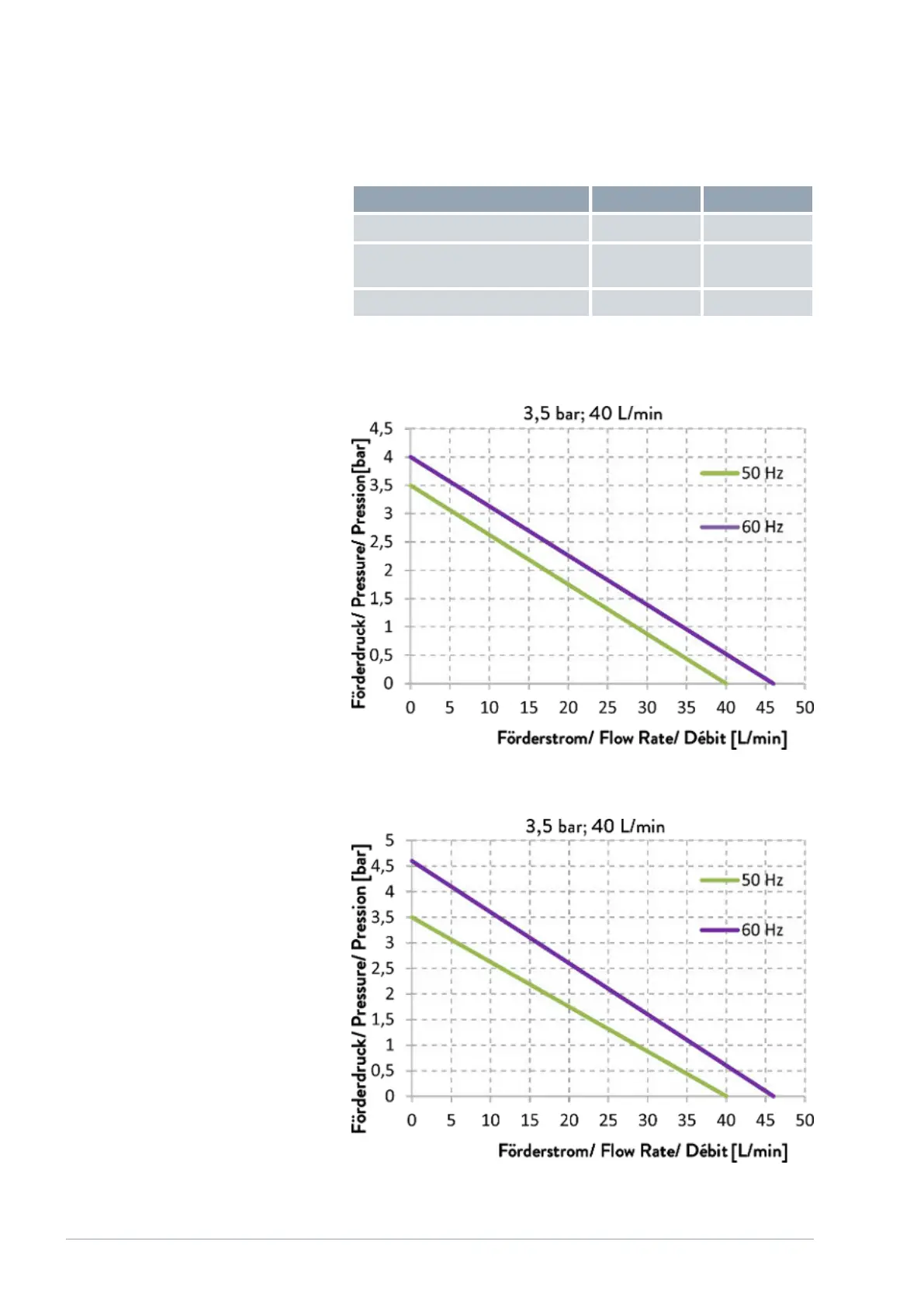

Pump characteristics for I
ntegral T
Fig
. 92: IN 130 T
, IN 230 T, IN 230 TW
Fig
. 93: IN 530 T
, IN 530 TW
measured with water for IN 130 T
,
IN 230 T, IN 230 TW
measured with water for IN 530 T
,
IN 530 TW
V6
Integral P
rocess Thermostats and High-
T
emperature Thermostats
178 / 198
177
179
Table of Contents
Table of Contents
3
Safety
7
Safety Information
7
Obligations of the Operator
9
EMC Requirements
10
Software Versions
10
Observing Additional Operating Instructions
11
Limits of the Device
11
Usage Limits
11
Environmental and Operating Conditions
11
Time Limits
12
Prohibition of Modifications to the Device
12
Materials
12
Fluorinated Refrigerant
12
Requirements for the Heat Transfer Liquid
12
Hose Requirements
13
Personnel Qualification
13
Personal Protective Equipment
13
Structure of Warnings
14
Safety Fittings on the Device
14
Overtemperature Protection
14
Low-Level Protection
14
Product Safety Label
15
Warning Symbols for Devices with NRTL Approval
15
Unpacking
17
Device Description
21
Overall View of Integral (Small Casing Version)
21
Overall View of Integral (Medium Casing Version)
22
Overall View of Integral (Large Casing Version)
23
Overall View of Integral (Large Casing Version) with Pressure Overlay
24
Mains Switch
25
Power Supply at in 2560 XTW and in 2560 PW
25
Hydraulic Circuit
27
Rating Label
29
Interfaces
32
Before Starting up
34
Install Device
34
Hoses
35
Connecting an External Application
37
LAUDA Heat Transfer Liquids
40
Cooling Water Requirements
42
Connecting the Cooling Water
43
Configuring Interfaces
44
Configure Potential-Free Contact (Alarm Output)
45
Interface Potential-Free Contact
45
Configuring the Ethernet Interface
46
Data Transfer Rate
52
Protocol of the Interface
53
Read Commands
53
Write Commands
58
Error Messages
61
Commissioning
62
Establishing a Mains Connection
62
Switching on the Device for the First Time
63
Operating the Device with the Operating Unit
65
Home Window, Navigation and Softkeys
65
Enter Entry Window and Set Temperature
67
Graph Window
68
Operate the Device Using the Command Touch Unit
69
Setting Heat Transfer Liquid
69
Fill the Device with Heat Transfer Liquid
71
Degas Heat Transfer Liquid (Low Boiling Point Expulsion)
75
Setting the Flow Rate of the Heat Transfer Liquid
77
Control Parameters
79
Control Basics
80
Overview of Internal Control Parameters
82
Overview of External Control Parameters
83
Activate Control Variable
84
Adapting Control Parameters
84
Operation
86
General Warning
86
Operating Modes
88
Menu Structure
89
Setting Tmax
92
Self Adaptation
93
Set the Setpoint Offset
94
Limiting Heating and Cooling
95
Dead-Time Correction
96
Dynamic Heatlimiter
97
Cooling
97
Setting Temperature Limits Tih and Til
98
Lock and Release Operating Buttons
98
Basic Settings
99
Calibrating the Temperature Probe
102
Restore the Factory Setting
104
Viewing the Device Status
105
Through-Flow Control of the Internal Heater
107
Programmer
108
Basic Information
108
Set and Process Program
112
Set Time, Date, Format and Time Zone
114
Operator and Viewer
115
Web Server LAUDA Command
119
Cloud Service LAUDA.LIVE
121
Safe Mode Safety Fittings
123
Importing and Exporting Data
127
Importing Data
127
Exporting Data
127
Operation with Inert Gas Blanket
129
Operation of a High-Temperature Thermostat
131
Operating a Device with Pressure Overlay
132
Warnings, Safety Instructions and Further Information
132
Menu Structure of the Pressure Overlay
133
The System Pressure in Devices with Pressure Overlay
135
Setting the Parameters for a Pressure-Stable Application up to the Maximum System Pressure
135
Setting the Parameters for a Pressure-Stable Application
135
Filling and Operating a Device with Pressure Overlay
137
Maintenance
141
Warning Notes for Maintenance
141
Maintenance Intervals
141
Cleaning the Device
142
Cleaning the Air-Cooled Condenser
142
Cleaning Cooling Water Circuit
143
Checking the Overtemperature Protection
144
Checking the Low-Level Protection
145
Check the Heat Transfer Liquid
146
Faults
147
Alarms, Errors and Warnings
147
Alarms
147
Troubleshooting
149
Decommissioning
153
Information on Decommissioning
153
Drain and Clean the Device
153
Draining the Cooling Water Circuit
156
Disposal
157
Disposing of Packaging
157
Disposing of Refrigerant
157
Device Disposal
157
Disposing of Heat Transfer Liquid and Liquids
158
Accessories
159
General
160
Copyright
160
Technical Changes
160
Warranty Conditions
160
Contact LAUDA
160
Technical Data
161
General Data
161
Heating Output and Power Supply
166
Cooling Output
168
Refrigerant and Filling Weight
174
Technical Data of the High-Temperature Thermostats
176
Pump Characteristics for Integral T
178
Pump Characteristics for Integral XT
179
Pump Characteristics for High-Temperature Thermostats
181
Declaration of Conformity and Certificates
182
Modular MIMIC Displays
188
Product Returns and Clearance Declaration
191
Glossary
192
Index
194
