3 Device description
3.1 Overall view of Integral (small casing version)

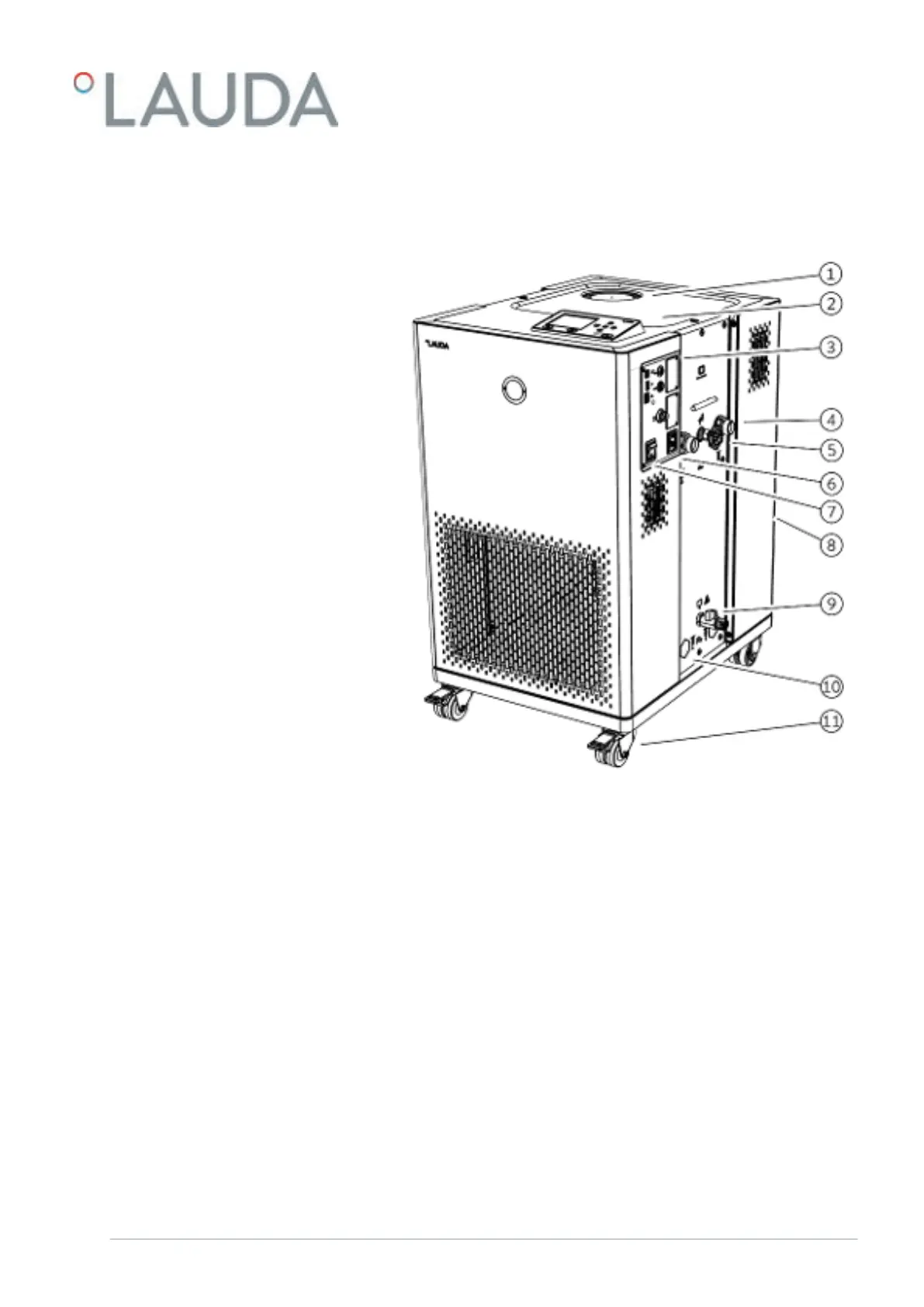

Fig. 5: View of Integral 230 T
1 Filler nozzle with cover
2 Operating unit
3 Interfaces and two slots for interface module
4 Pump connector
5 Adjusting wheel for bypass valve
6 Cold appliances built-in connector
7 Mains switch
8 Overflow pipe on the rear of the device (covered)
9 Drain tap for the hydraulic circuit
10 Additionally for water-cooled devices: connecting sleeves for cooling
water
11 Four castors (front castors with parking brake)
V6 Integral Process Thermostats and High-Temperature Thermostats 21 / 198
