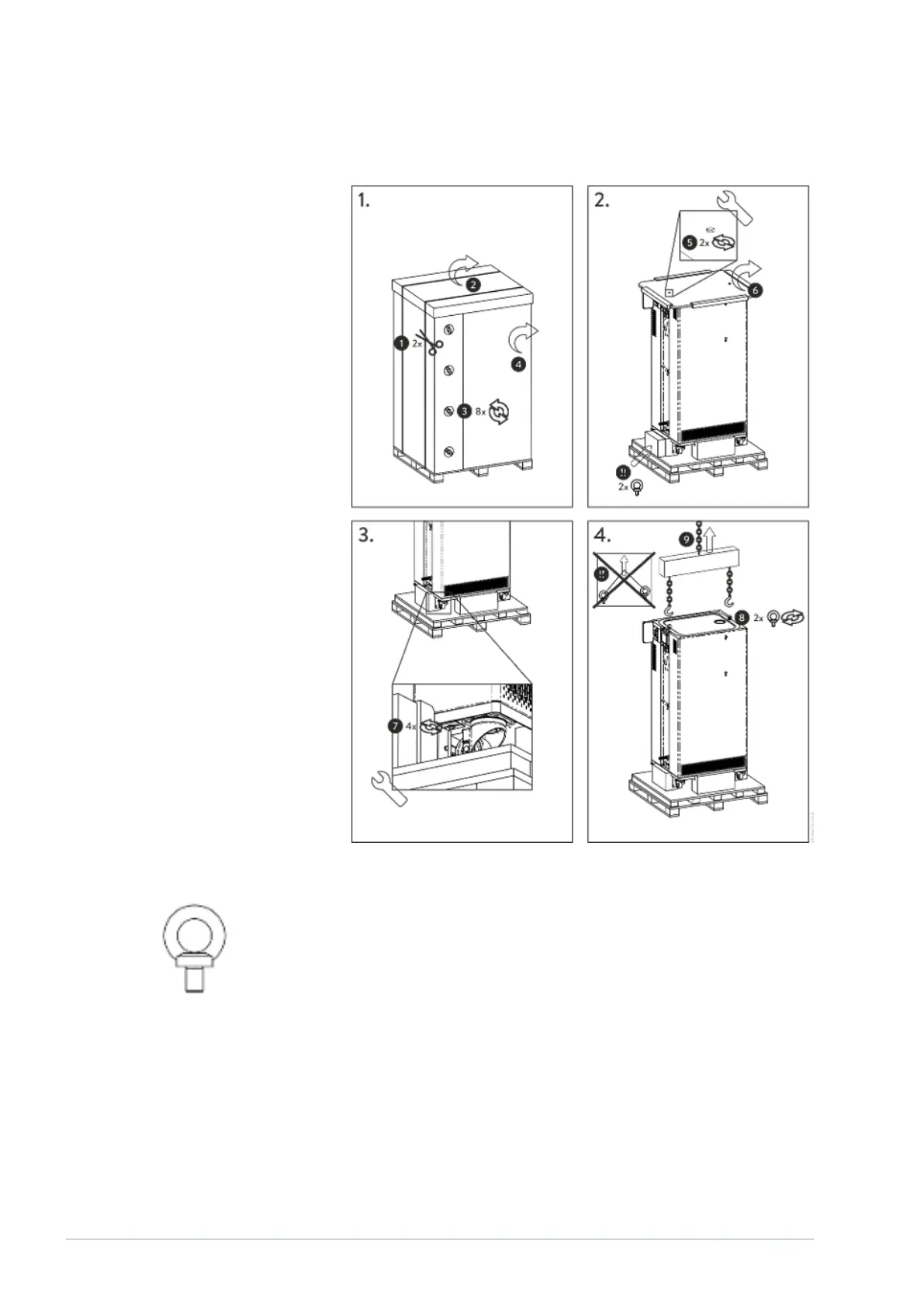

Fig. 2: Unpacking instructions
7. Fig. 2: Remove the ring bolts from the packaging.
8. Fig. 4: Screw the two ring bolts all the way into the thread connection
Ç (M10 or M16) on the top of the casing. Turn them clockwise to do
so.
Fig. 3: Ring bolt (example)
V6Integral Process Thermostats and High-Temperature Thermostats18 / 198
