Metal hose made from stainless steel with screw caps
n Working pressure: maximum 10 bar
n Temperature range: -50 – 150 °C
n Application area: for heating and cooling applications with special insula-
tion, for all LAUDA heat transfer liquids
Hose type Length in cm Catalog number
Clear width in mm, connec-
tion thread
Maximum tightening
torque in Nm
MTK 100 100 LZM 075
DN 20, G¾"
70
MTK 200 200 LZM 076
DN 20, G¾"
70
Metal hose made from stainless steel with screw caps
n Working pressure: maximum 10 bar
n Temperature range: -100 – 350 °C
n Application area: for heating and cooling applications with special insula-
tion, for all LAUDA heat transfer liquids
Hose type Length in cm Catalog number
Clear width in mm, connec-
tion thread
Maximum tightening
torque in Nm
M30X 100S 100 LZM 091 DN20, M30 x 1.5 70
M30X 200S 200 LZM 092 DN20, M30 x 1.5 70
M30X 300S 300 LZM 093 DN20, M30 x 1.5 70
M38X 100S 100 LZM 094 DN25, M38 x 1.5 130
M38X 200S 200 LZM 095 DN25, M38 x 1.5 130
M38X 300S 300 LZM 096 DN25, M38 x 1.5 130
Approved metal hoses for Integral T

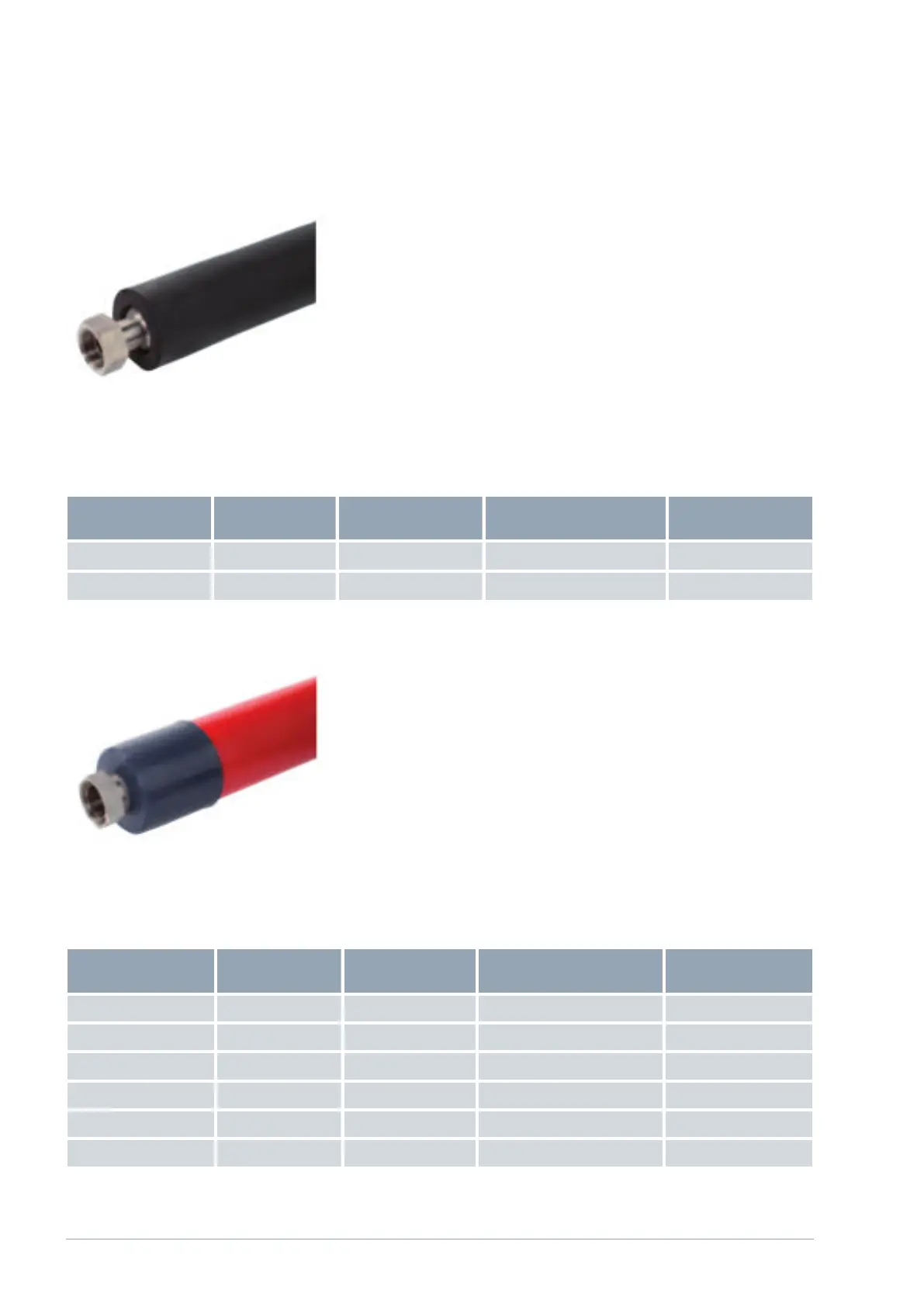

Fig. 17: Corrugated metal hose with cold
insulation
Approved metal hoses for Integral XT
Fig. 18: Corrugated metal hose with cold
insulation
V6Integral Process Thermostats and High-Temperature Thermostats36 / 198
