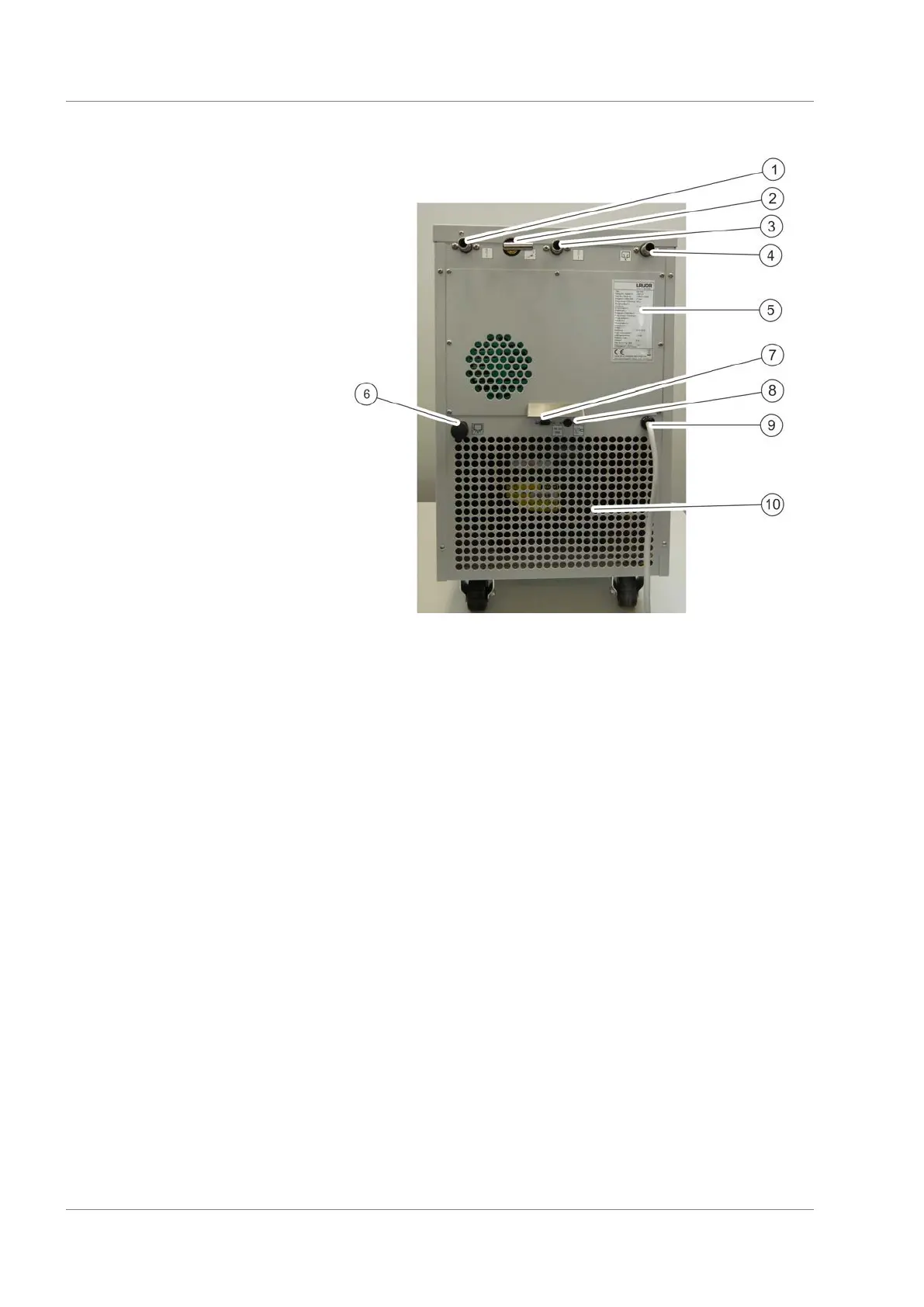

Fig. 4: Overview of the rear side
1 Pump connection, outlet
2 Bypass adjustment wheel
3 Pump connection, return
4 Overflow connection
5 Rating plate
6 Drain plug
7 RS232 interface
8 Alarm output
9 Mains cable
10 Ventilation openings
Rear side MC 600, MC 1200 (W)
Design and function
Microcool 16
