CReader Series English User’s Manual
10
4. Connection & Settings
4.1 Connection
1. Turn the ignition off.
2. Locate vehicle’s DLC socket: Refer to Fig. 2-2 for the location. In case no DLC
is found, please refer to Automobile Repair Manual.
3. Plug one end of the diagnostic cable into the DB15 connector of the tool, and
connect the other end of the diagnostic cable into the vehicle’s DLC.
4. Turn the ignition on. Engine can be off or running.

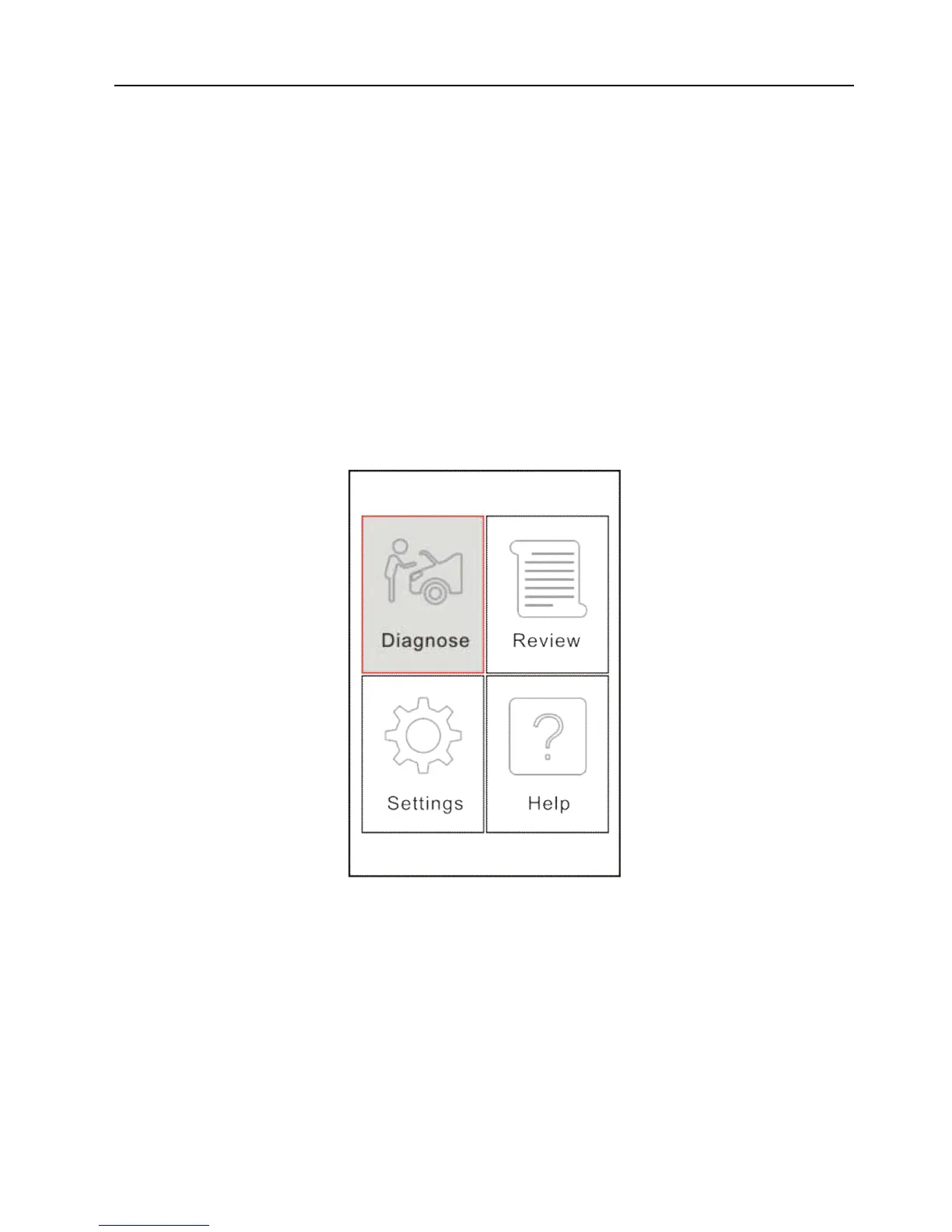

5. The system starts initializing and then automatically enters the main menu
interface.
Figure 4-1
CAUTION: Don’t connect or disconnect any test equipment with ignition on or engine
running.
4.2 Settings
Select [Settings] in the main menu and press [OK], the system will enter the
following screen:
