Launch CReader 6011 User Manual

LAUNCH
CReader Series English User’s Manual
3

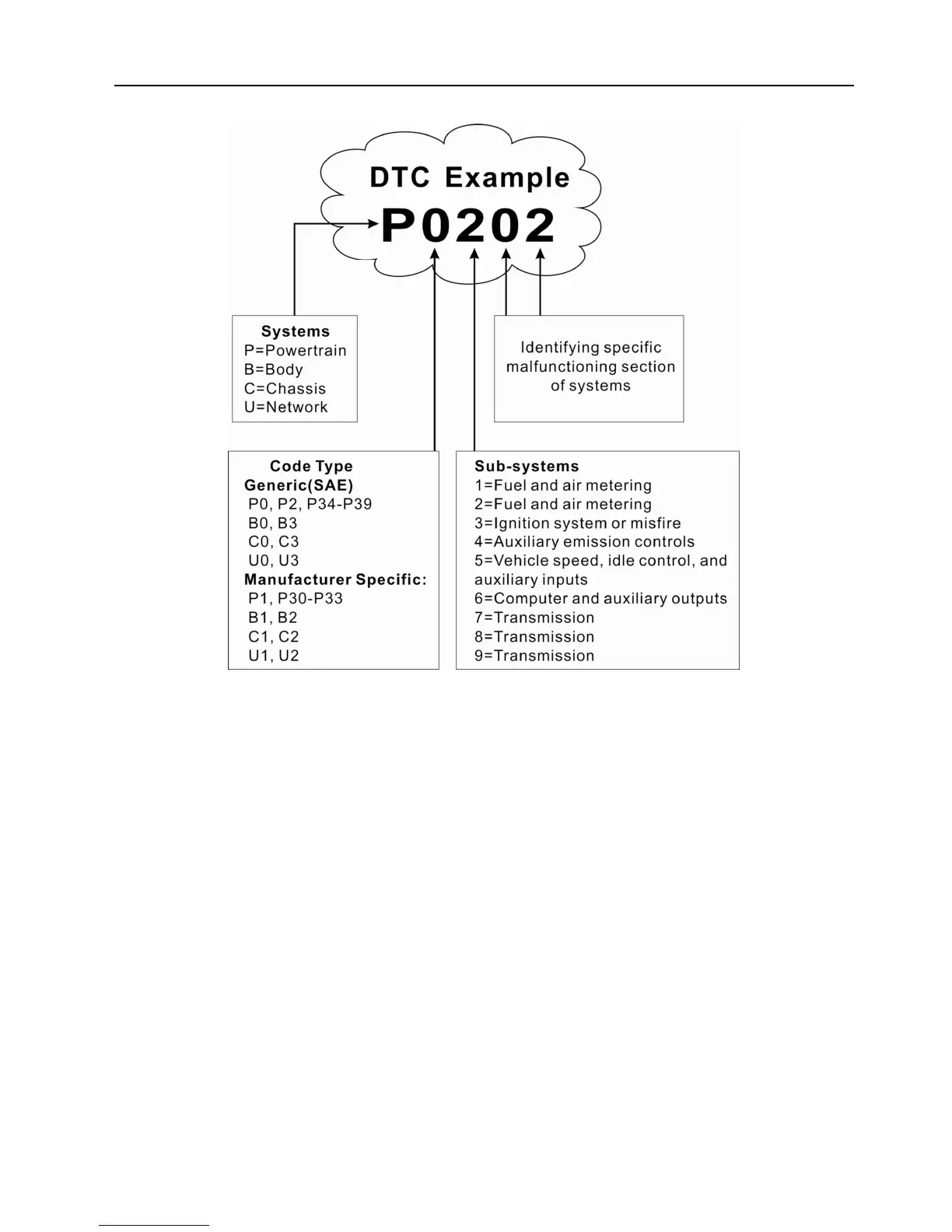

Figure 2-1
2.3 Location of the Data Link Connector (DLC)
The DLC (Data Link Connector or Diagnostic Link Connector) is typically a 16-pin
connector where diagnostic code readers interface with the vehicle’s on-board
computer. The DLC is usually located 12 inches from the center of the instrument
panel (dash), under or around the driver’s side for most vehicles. If Data Link
Connector is not located under dashboard, a label should be there telling location.
For some Asian and European vehicles, the DLC is located behind the ashtray
and the ashtray must be removed to access the connector. If the DLC cannot be
found, refer to the vehicle’s service manual for the location.

Launch CReader 6011 Specifications

General

Brand	Launch
Model	CReader 6011
Category	Diagnostic Equipment
Language	English
