LAUNCH Electronic Two-post User’
16

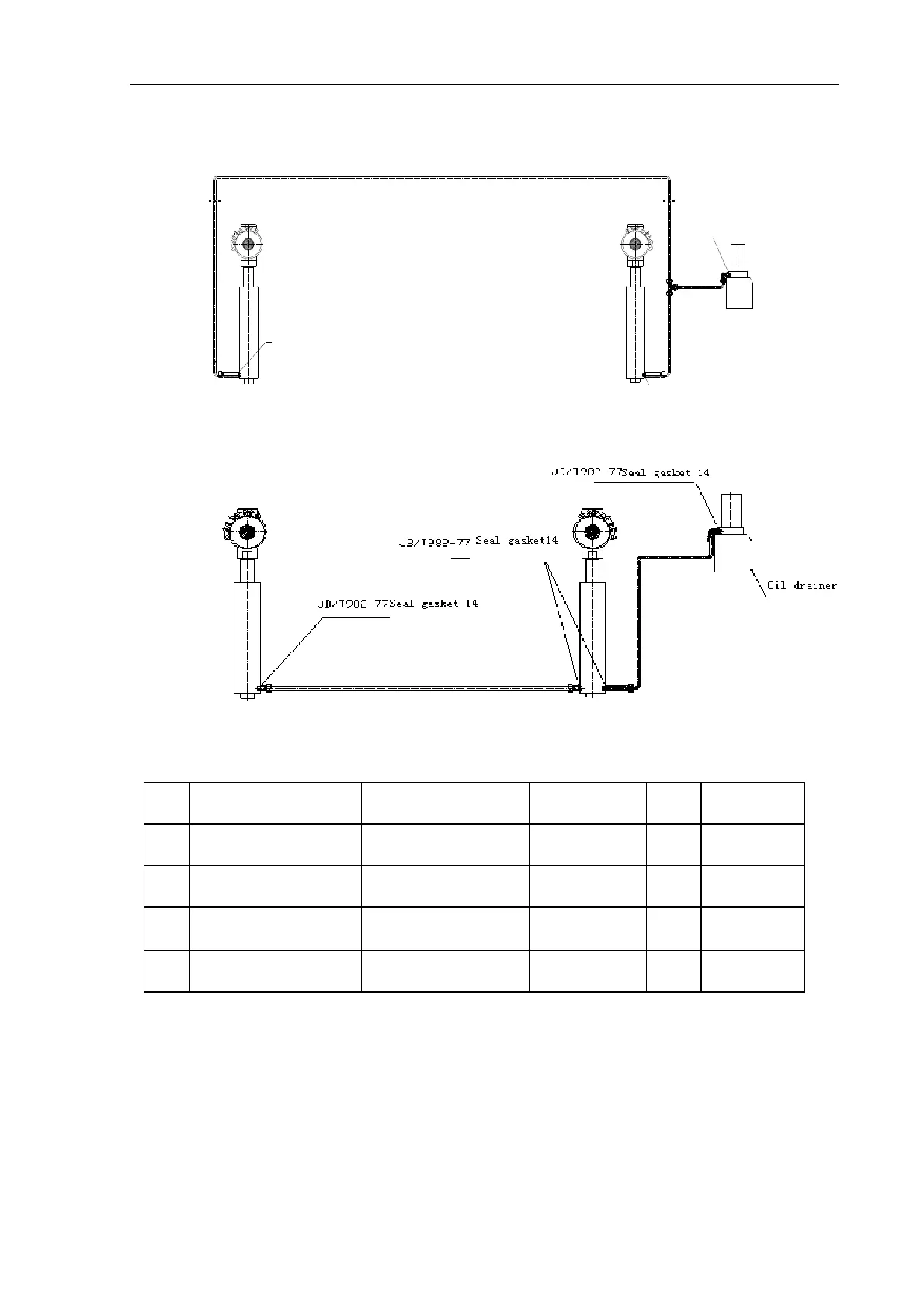

Diagram of hydraulic line of clear-floor 2-post lift
Diagram of hydraulic line of floor-plate 2-post lift
Fig 5
Wearing Parts
No.
Name Model Spec Qty Remark
1 O rubber sealing ring GB3452.1-92 53×5.3 1
2 Dust proof ring DHS40 1
3 Shaft sealing ring UHS53×63×6 1
4 Rubber pad 4 Self-made part
7. Storage and Scrap
7.1 Storage
When the equipment requires long-time storage:
Disconnect the power supply
Lubricate all the parts requiring lubrication: mobile
contact surface of the carriage, etc.
Empty all the oil/liquid storage units
Put the plastic cover over the equipment for dust
protection
7.2 Scrap
When the equipment service life is expired and can no
longer be used, disconnect the power supply, and properly
dispose of as per relevant local regulations.
JB/T982-77 seal gasket 14
JB/T982-77 seal gasket 14
JB/T982-77 seal gasket 14
