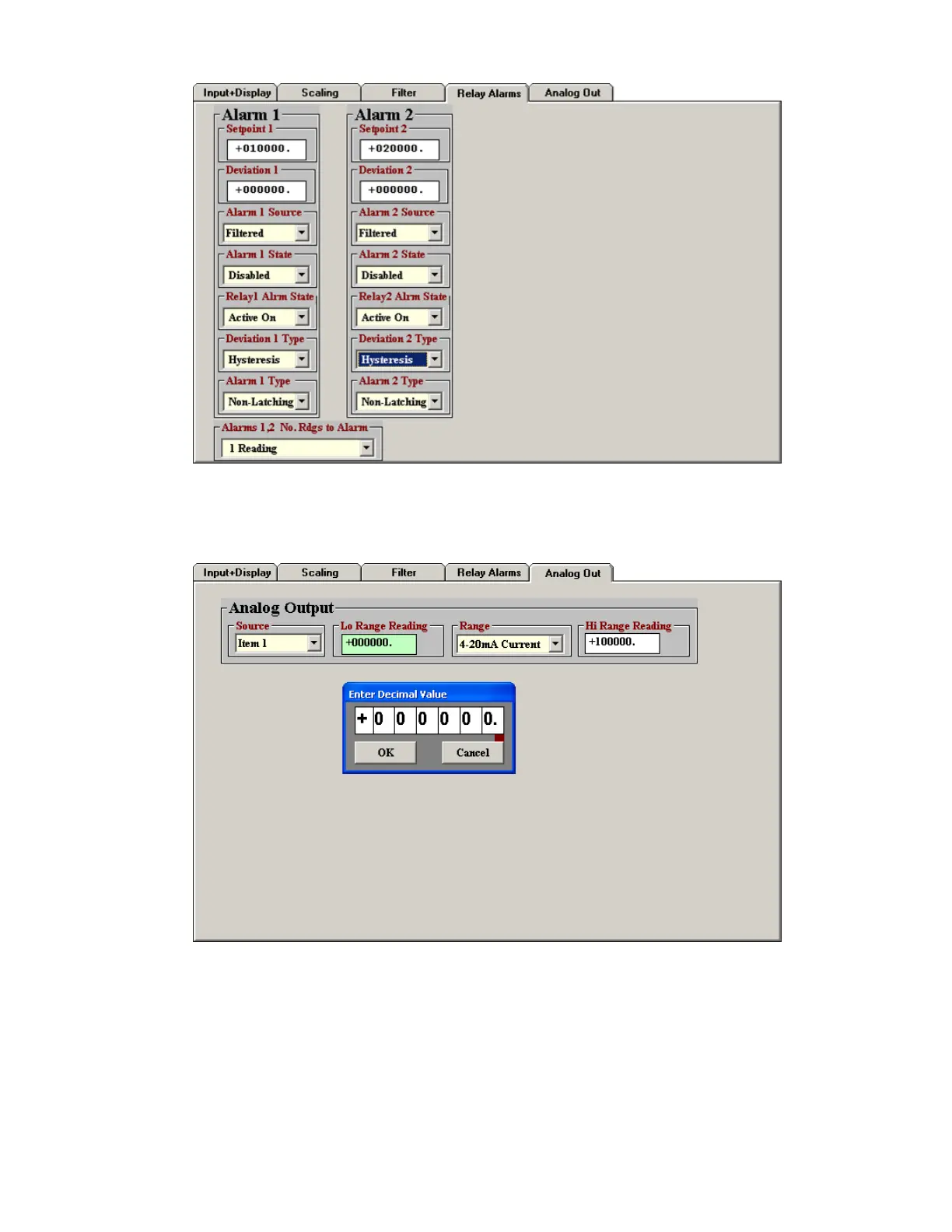

Click on the Relay Alarms tab to set up your transmitter’s two solid state relays, which are
standard. Press the F1 key for help with any highlighted item.
Click on the Analog Out tab to scale your analog output, which is standard. Under Range, select
0-20 mA Current, 0-10V Voltage, or 4-20 mA. Type in your Lo Range Reading and Hi Range
reading. These will create the two endpoints of your analog output range. Press the F1 key for
help with any highlighted item.
