ASSEMBLY
INSTALLING AND REMOVING THE BATTERY PACK (See Figs. 12-13)
To install the battery pack:
■ Align the battery pack with the battery slot.
■ Insert the battery pack into the battery slot until the battery pack secures into place. Make sure the battery
is inserted in the correct direction (Fig. 12).
■ Do not use force when inserting the battery pack. It should slide into position and "click".
To remove the battery pack:
■ Press and hold the battery release button (Fig. 13).
■ Slide the battery pack from the battery slot.
■ Secure the screws tightly using the hex wrench (Fig. 10).
■ Pay attention not to position the assist handle under the shaft (Fig. 11).

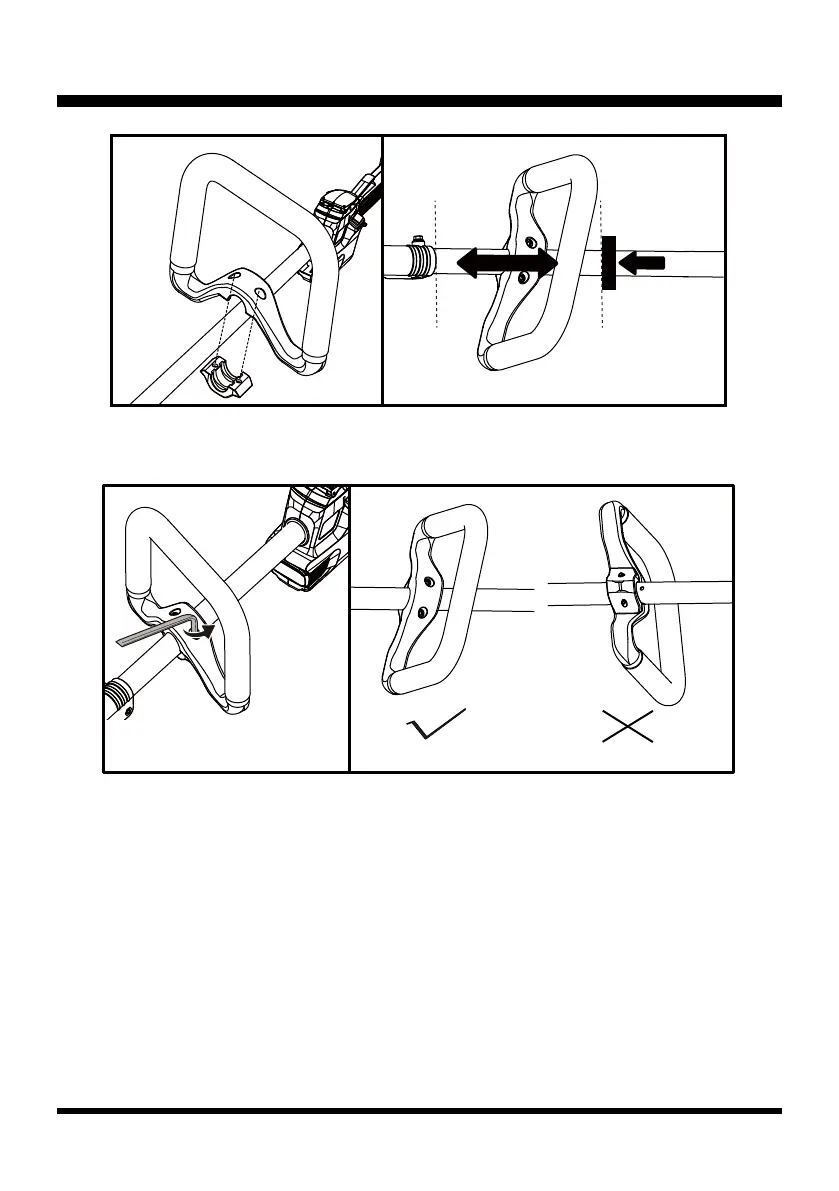

Handle Position
Fig. 8 Fig. 9
Fig. 10
Fig. 11
