Layher ZIFA - Components of the System

28

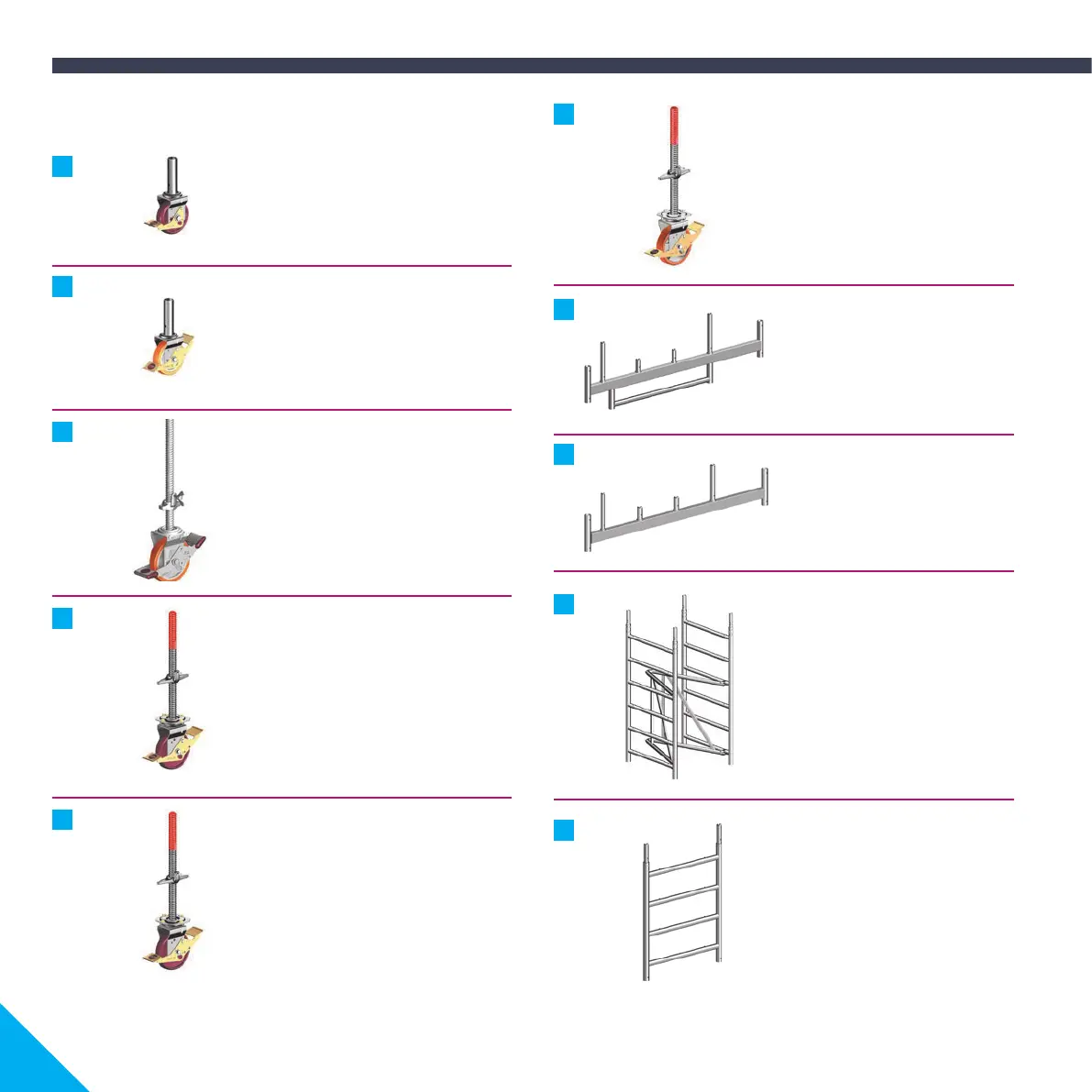

13. COMPONENTS OF THE SYSTEM
1259.201 Castor 700
with baseplate and lock
Plastic wheel dia. 200 mm, permissi-
ble load 7 kN (≈ 700 kg). With dou-
ble brake lever and load centering in
the braked state. Wheel and slewing
ring can be locked. Adjustment
range 0.3 – 0.6 m. Weight 6.8 kg.
3
4
5
6
1260.202 Castor 700 with
baseplate and lock
Plastic wheel with Vulkollan tyre,
dia. 200 mm, permissible load 7 kN
7 kN (≈ 700 kg). With double brake
lever and load centering in the
braked state. Wheel and slewing
ring can be locked. Adjustment
range 0.3 – 0.6 m, weight 7.0 kg.
1260.200 Castor 1000 with
baseplate and lock
Plastic wheel dia. 200 mm, per-
missible load 10 kN (≈ 1000 kg).
With double brake lever and load
centering in the braked state. Wheel
and slewing ring can be locked.
Adjustment range 0.3 – 0.6 m,
weight 9.4 kg.
1268.200 Castor 1000 with
baseplate and lock
Aluminium rim with Vulkollan tyre,
dia. 200 mm, permissible load 10 kN
(≈ 1000 kg). With double brake lever
and load centering in the braked
state. Wheel and slewing ring can
be locked. Adjustment range 0.3 –
0.6 m, weight 9.4 kg.
1309.150 Castor 400
Plastic wheel with Vulkollan tyre,
dia. 150 mm, permissible load 4 kN
(≈ 400 kg). Special wheel for sen-
sitive floor surfaces. Wheel and
slewing ring can be locked. Weight
2.5 kg.
2
1308.150 Castor 400
Plastic wheel dia. 150 mm,
with simple brake lever,
permissible load 4 kN (≈ 400 kg),
weight 2.2 kg.
1
7
1323.180 Mobile beam w. ledger
1.8 m
Steel rectangular tube, hot-dip-gal-
vanized. For widening the base of
towers with up to 6.6 m platform
height. Width 1.8 m, weight 16.8 kg.
1214.180 Mobile beam 1.8 m
Steel rectangular tube, hot-dip-gal-
vanized. For widening the base of
towers with up to 6.6 m platform
height. Width 1.8 m, weight 14.4 kg.
8
9
10
1300.006
Zifa 75 basic tower,
aluminium.
Width 0.75 m, length 1.8 m,
height 1.5 m.
Dimensions when folded together:
0.95 x 1.5 x 0.3 m, weight 20.2 kg.
1297.004
Ladder frame 75/4
aluminium.
Rungs with non-slip grooving. Height
1.0 m,
width 0.75 m, weight 4.7 kg.
