PAGE 13
The supplied radio interface cable is 14 inches long. If it is desired that the IT-100 is
positioned farther from the transceiver than this cable length allows, a custom cable will need to
be constructed. This can be accomplished in two ways: Cut the supplied cable and solder a
jumper wire between all the connections, or purchase new connectors and cable to construct a
custom-length interface cable from scratch.

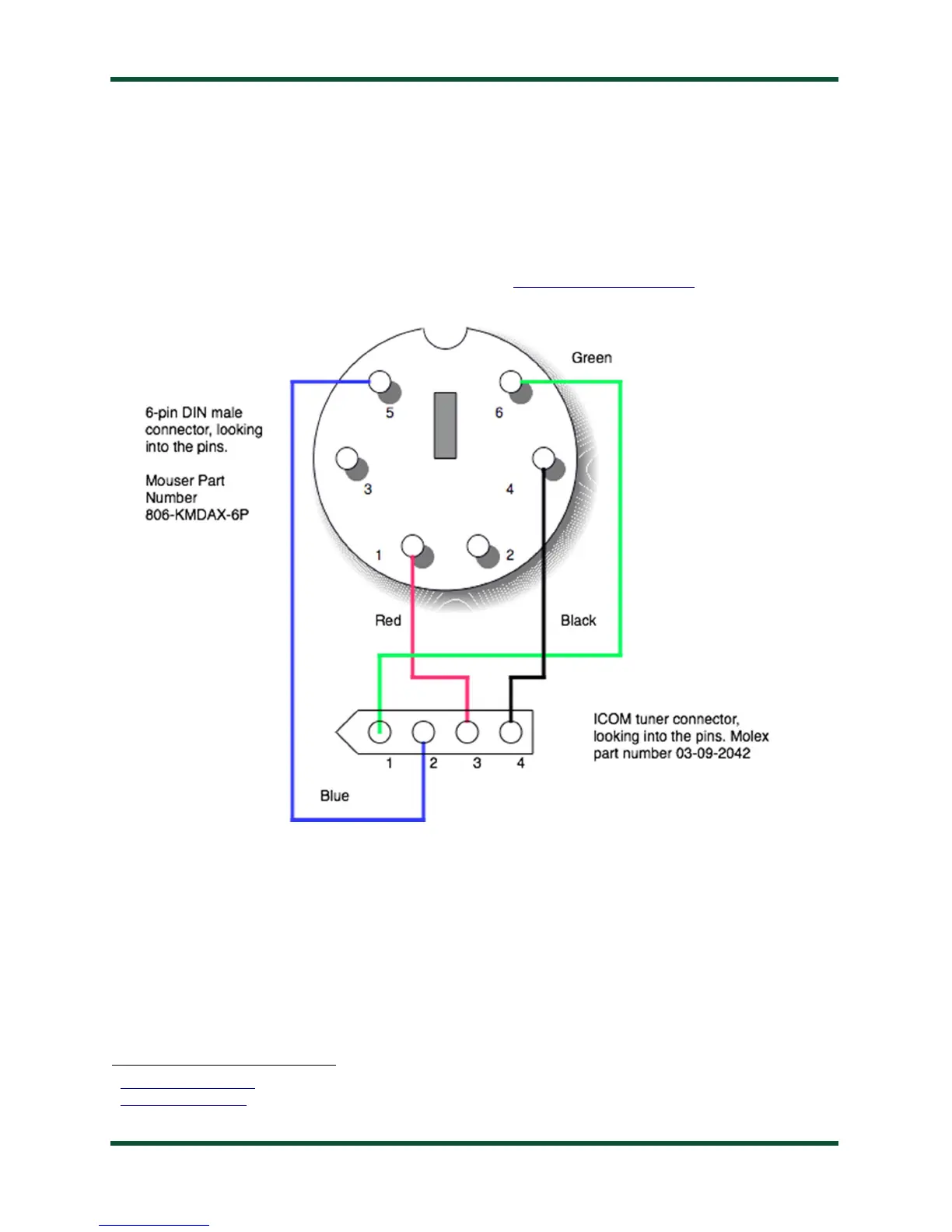

The 4-pin AH-4 interface connector is Molex part number 03-09-2042, available from
several online component vendors, such as DigiKey
1
and Mouser
2
. The connector also requires
four pins, Molex part number 02-09-2103. The 6-pin IT-100 interface connector is Kycon
Connector Part Number KMDAX-6P, available from http://www.mouser.com/ as Mouser part
number 806-KMDAX-6P.
1
http://www.digikey.com/
1
http://www.mouser.com
2
For a very complete treatment of this subject, see any edition of the ARRL Handbook for Radio Communications (previously the
Handbook For Radio Amateurs).
