2.2 Environment
Cooling
Natural Cooling or Forced cooling
Operating Environment
Environment
Avoid dust, oil fog and corrosive gases
Ambient Temperature
0°C － 65°C (32°F - 149°F)
Humidity
40%RH－90%RH
Operating Temperature
0°C － 50°C (32°F - 122°F)
Vibration
10-50Hz / 0.15mm
Storage Temperature
-20°C － 65°C (-4°F - 149°F)
Weight
Approx. 300g (10.6oz)
2.3 Mechanical Specifications
(unit: mm [1inch=25.4mm])

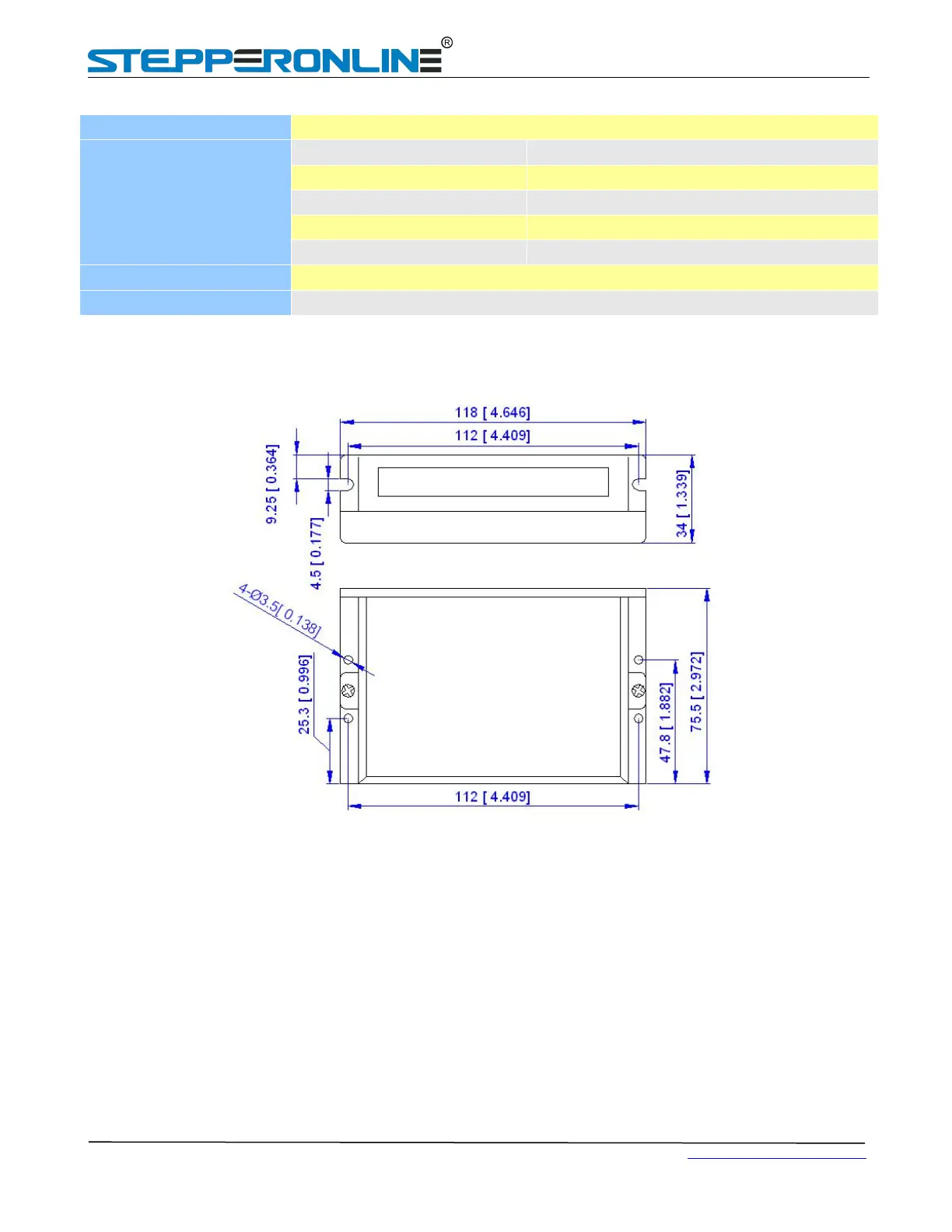

Figure 1: Mechanical specifications
* Side mounting recommended for better heat dissipation
2.4 Elimination of Heat
 DM556T reliable working temperature should be < 60℃ (140°F)
 It is recommended to use automatic idle-current mode to reduce motor heating. That means set the SW4 pin of
DIP switch at “OFF” position.
 It is recommended to mount the drive vertically to maximize heat sink area. Use forced cooling method to cool if
necessary.
