8
Keep a distance of
35mm to 45mm
between the support
and the wall surface
3.2

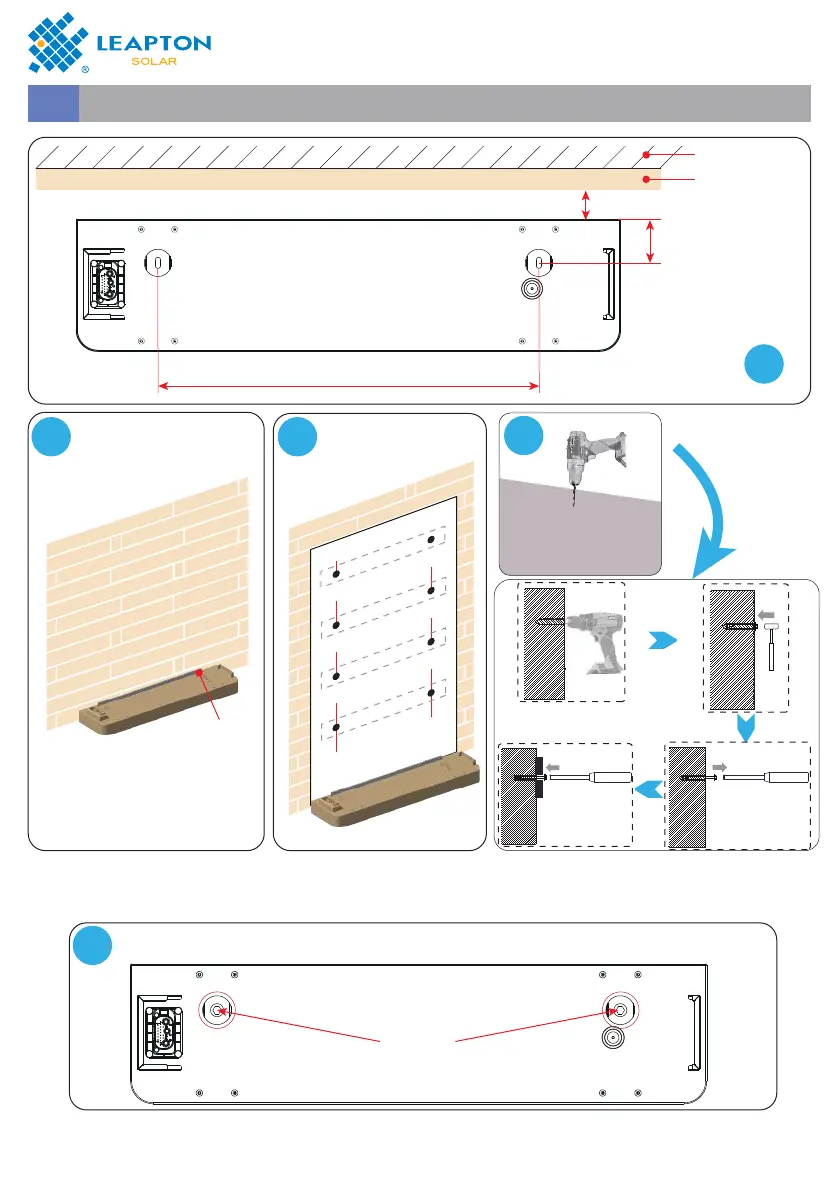

Installation the Base Support
25~35mm
Baseboard
Wall
560mm
65mm
Left
Right
1
2 3
4
5
Level
Diameter:10mm;
Depth:70mm
5N.m
The M6x70 expansion bolts delivered with the battery are mainly used for solid concrete walls and concrete
floors. If other types of walls and floors are used, ensure that the walls and floors meet the load-bearing
requirements (one battery module weighs 55 kg) and select the bolts by yourself.
Secure the Base Support
M6
5N.m
Pack Mounting Holes
5kWh Mounting Holes
10kWh Mounting Holes
15kWh Mounting Holes
20kWh Mounting Holes
