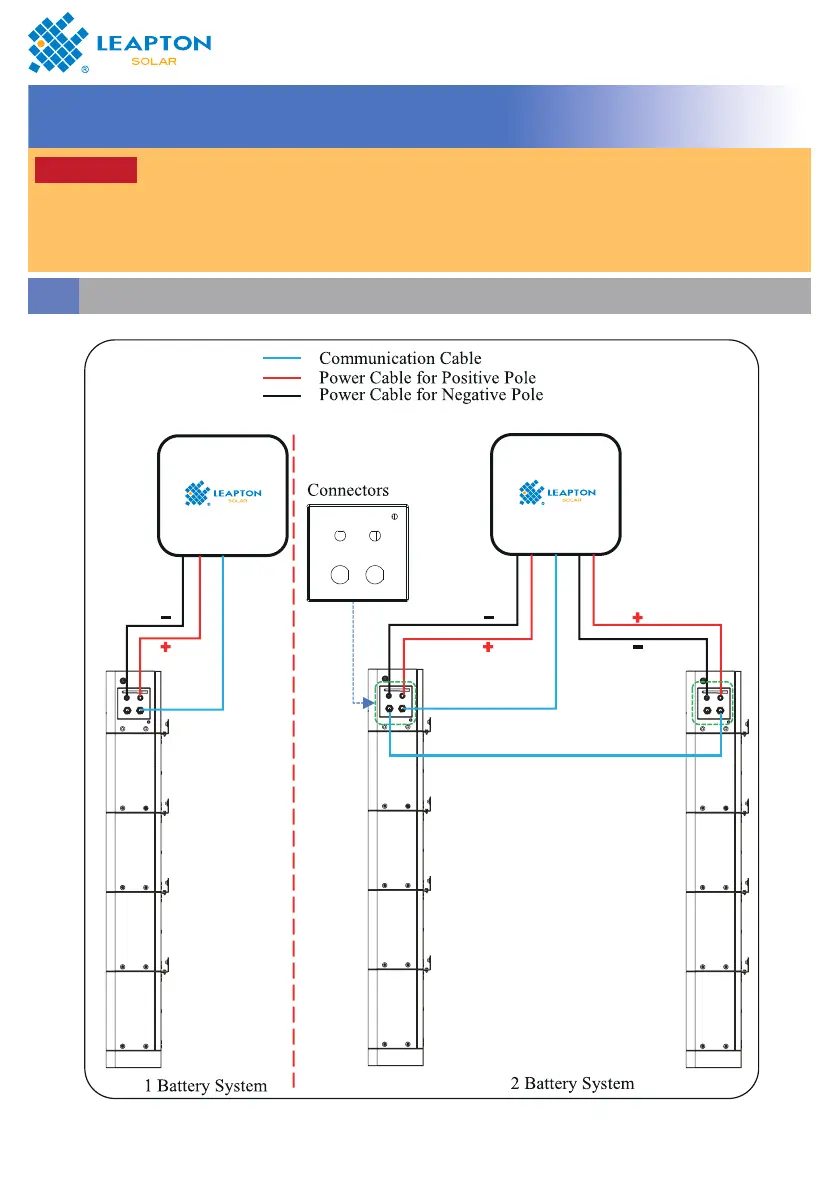

4.1 Wiring Diagram for battery system
• Connect cables in accordance with local installation laws and regulations.
• Before connecting cables, ensure that the air switch on the PCU is set to OFF.
Otherwise, the high voltage of the battery may result in electric shocks.
DANGER
4 Electrical Connection
COM
COMCOM
-
+
LINK
CAN
WIFI
