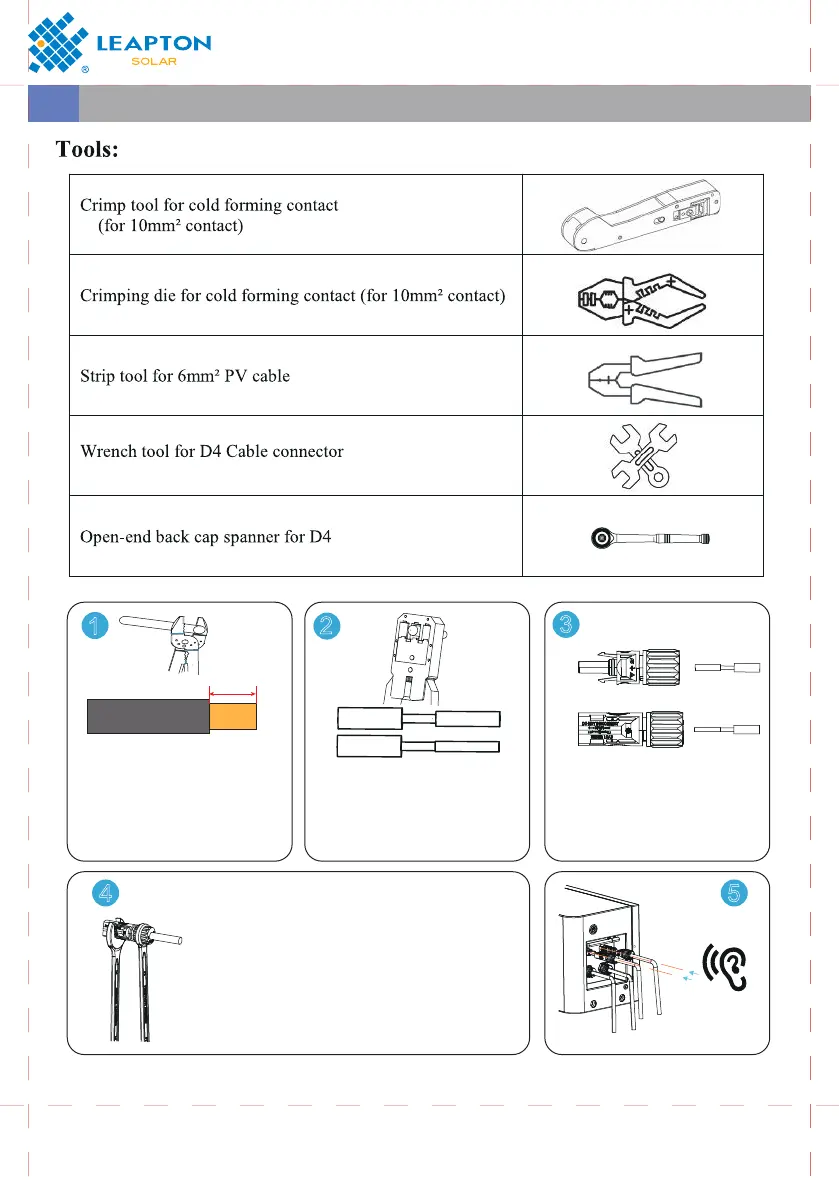

Connecting the Power Cable
4.4
1
2
3
4 5
Click
Strip the insulating layer
of cable. L=7±0.5mm;
S=10mm²;
Be attention and not to cut off
the wire core.
Rivet terminal . Ensure the
concentricity of metal parts
and cable at same level,
crimped metal parts and
cable pull tension ≥310N.
Install the cable gland. First screw it by hands,
then lock tightly by plastic spanner(pls refer the
gap sheet for detailed gap from page one).
Ensure the concentricity of cable and cable
gland when screw cable gland.
Cable gland is detachable, original factory
plastic spanner can assembly in site, but not
suitable for mass quantity assembly.
Push the riveted pin into the
insulator until they engage.
Pull lightly on the lead to
check that the metal part has
engaged.
7mm
