15

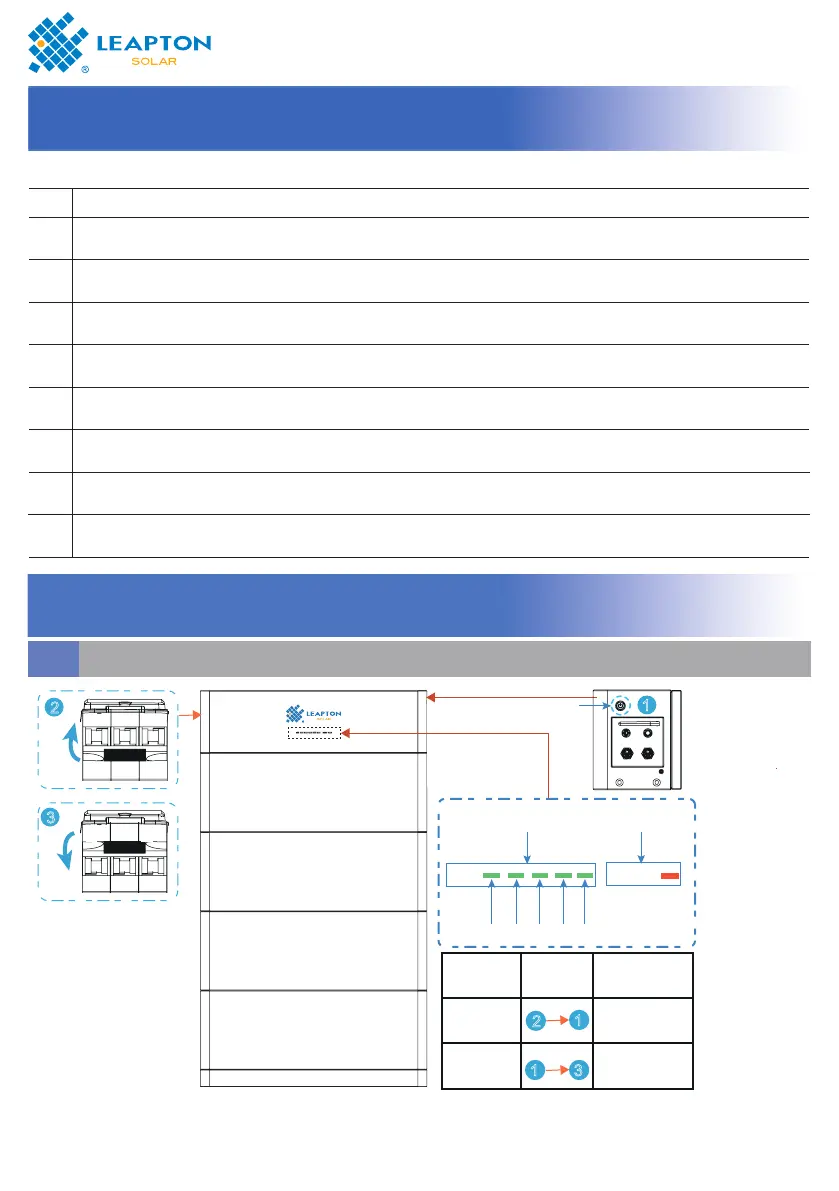

Battery System ON and OFF
5 Verifying the Installation
6 Power ON and OFF
Power ON
Power OFF
Sequence
Button/
Button indicator
Press button for 3S
Press button for 5S
2
1
1 3
SOC
FAULT
L1 L2 L3 L4 L5
SOC Indicator Fault Indicator
Button/Button Indicator
1
2
3
6.1
NO.
1
2
3
4
5
6
7
8
Acceptance
The battery is installed correctly and securely.
The cables are routed properly as required by the customer.
Cable ties are secured evenly and no burr exists.
The ground cable is connected correctly and securely.
The battery switch and all switches connected to the battery are OFF.
The DC input power cables and signal cables are connected correctly and securely.
Idle terminals and ports are locked by watertight caps.
The installation space is proper, and the installation environment is clean and tidy.
