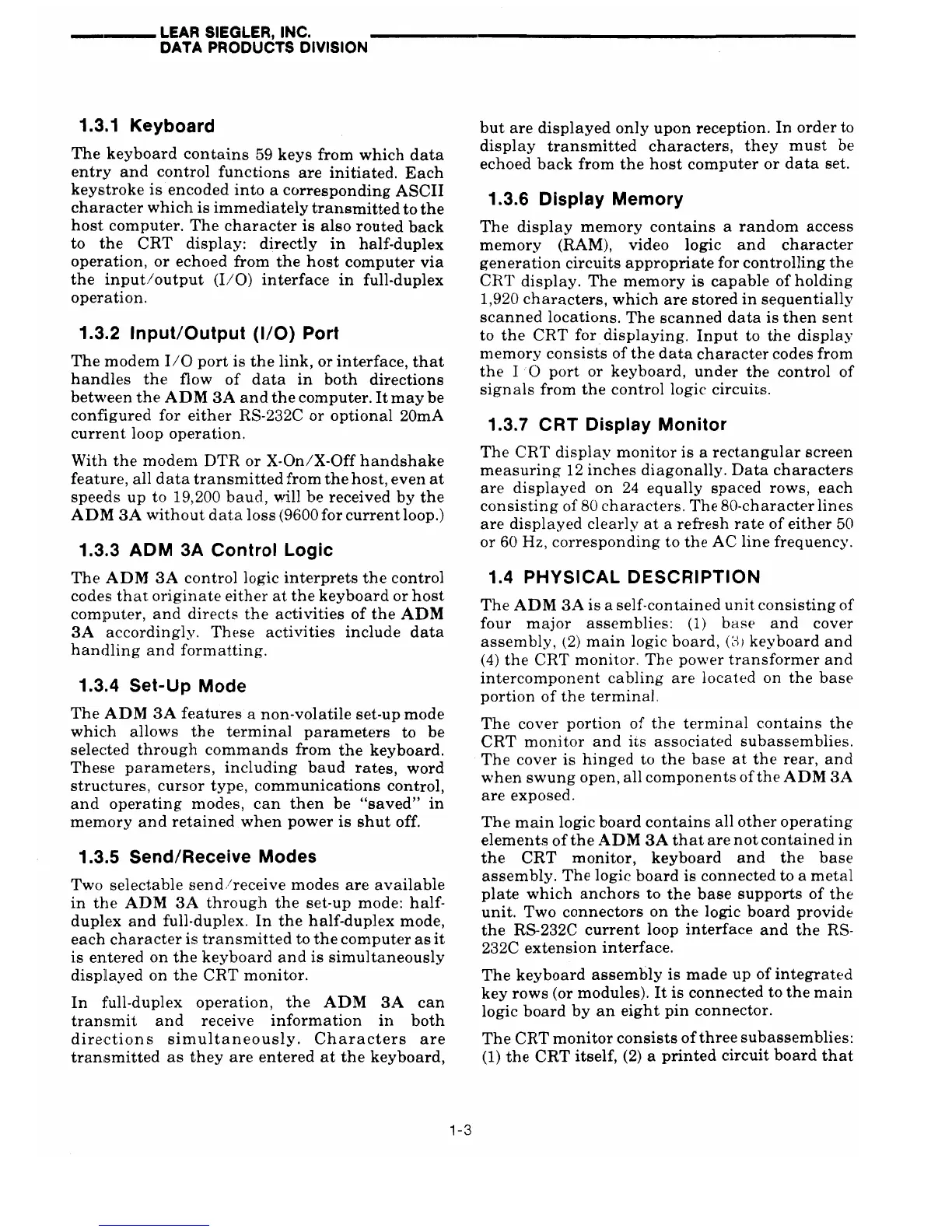

1.3.1
Keyboard
The
keyboard
contains
59
keys
from
which
data
entry
and
control
functions
are
initiated.
Each
keystroke
is
encoded
into
a
corresponding
ASCII
character
which
is
immediately
transmitted
to
the
host
computer.
The
character
is
also
routed
back
to
the
CRT
display:
directly
in
half-duplex
operation,
or
echoed
from
the
host
computer
via
the
input/output
(I/O)
interface
in
full-duplex
operation.
1.3.2
Input/Output
(I/O)
Port
The
modem
I/O
portis
the
link,
or
interface,
that
handles
the
flow
of
data
in
both
directions
between
the
ADM
3A
and
the
computer.
It
may
be
configured
for
either
RS-232C
or
optional
20mA
current
loop
operation.
With
the
modenl
DTR
or
X-On/X-Off
handshake
feature,
all
data
transmitted
from
the
host,
even
at
speeds
up
to 19,200
baud,
will
be
received
by
the
ADM
3A
without
data
loss
(9600 for
current
loop.)
1.3.3
ADM
3A
Control
Logic
The
ADM
3A
control
logic
interprets
the
control
codes
that
originate
either
at
the
keyboard
or
host
computer,
and
directs
the
activities
of
the
ADM
3A
accordingly.
These
activities
include
data
handling
and
formatting.
1.3.4
Set-Up
Mode
The
ADM
3A
features
a
non-volatile
set-up
mode
which
allows
the
terminal
parameters
to
be
selected
through
commands
from
the
keyboard.
These
parameters,
including
baud
rates,
word
structures,
cursor
type,
communications
control,
and
operating
modes,
can
then
be
"saved"
in
memlory
and
retained
when
power
is
shut
off.
1.3.5
Send/Receive
Modes
Two
selectable
send/receive
modes
are
available
in
the
ADM
3A
through
the
set-up mode:
half-
duplex
and
full-duplex.
In
the
half-duplex
mode,
each
character
is
transmitted
to
the
computer
as
it
is
entered
on
the
keyboard
and
is
simultaneously
displayed
on
the
CRT
monitor.
In
full-duplex
operation,
the
ADM
3A
can
transmit
and
receive
information
in
both
directions
simultaneously.
Characters
are
transmitted
as
they
are
entered
at
the
keyboard,
1-3
but
are
displayed
only
upon
reception.
In
order
to
display
transmitted
characters,
they
must
be
echoed
back
from
the
host
computer
or
data
set.
1.3.6
Display
Memory
The
display
memory
contains
a
random
access
memory
(RAM), video logic
and
character
generation
circuits
appropriate
for
controlling
the
CRT
display.
The
memory
is
capable
of
holding
1,920
characters,
which
are
stored
in
sequentially
scanned
locations.
The
scanned
data
is
then
sent
to
the
CRT
for
displaying.
Input
to
the
display
memory
consists
of
the
data
character
codes from
the
I 0
port
or
keyboard,
under
the
control
of
signals
from
the
control
logic circuits.
1.3.7
CRT
Display
Monitor
The
CRT
display
monitor
is
a
rectangular
screen
measuring
12
inches
diagonally.
Data
characters
are
displayed
on
24
equally
spaced
rows,
each
consisting
of 80
characters.
The
80-character
lines
are
displayed
clearly
at
a
refresh
rate
of
either
50
or
60 Hz,
corresponding
to
the
AC
line
frequency.
1.4
PHYSICAL
DESCRIPTION
The
ADM
3A
is
a
self-contained
unit
consisting
of
four
major
assemblies:
(1)
base
and
cover
assembly,
(2)
main
logic
board,
(~-))
keyboard
and
(4)
the
CRT
monitor.
The
power
transformer
and
intercomponent
cabling
are
located
on
the
base
portion
of
the
terminal.
The
cover
portion
of
the
terminal
contains
the
CRT
monitor
and
its
associated
subassemblies.
The
cover
is
hinged
to
the
base
at
the
rear,
and
when
swung
open,
all
components
of
the
ADM
3A
are
exposed.
The
main
logic
board
contains
all
other
operating
elements
of
the
ADM
3A
that
are
not
contained
in
the
CRT
monitor,
keyboard
and
the
base
assembly.
The
logic
board
is
connected
to a
metal
plate
which
anchors
to
the
base
supports
of
the
unit.
Two
connectors
on
the
logic
board
provide
the
RS-232C
current
loop
interface
and
the
RS-
232C
extension
interface.
The
keyboard
assembly
is
made
up
of
integrated
key
rows
(or modules).
It
is
connected
to
the
main
logic
board
by
an
eight
pin
connector.
The
CRT
monitor
consists
of
three
subassemblies:
(1)
the
CRT
itself,
(2)
a
printed
circuit
board
that
