MECHANICAL ASSY
137243
1351"
PC BOARD CONFIGURATOR
137240
, I. 19 85" ---------.J
! 10-32,3 4 SCREW (REF I
ROCKER
SWITCH
/"" MODEM PORT CONNECTOR
EXTENSION PORT CONNECTOR
NAMEPLATE (REF)
SEE
137243 FOR ENTRIES
_____ 15.55" .l.--_.J
NOTES
FOR PRODUCT CONFIGURATION REFER TO 137200PL

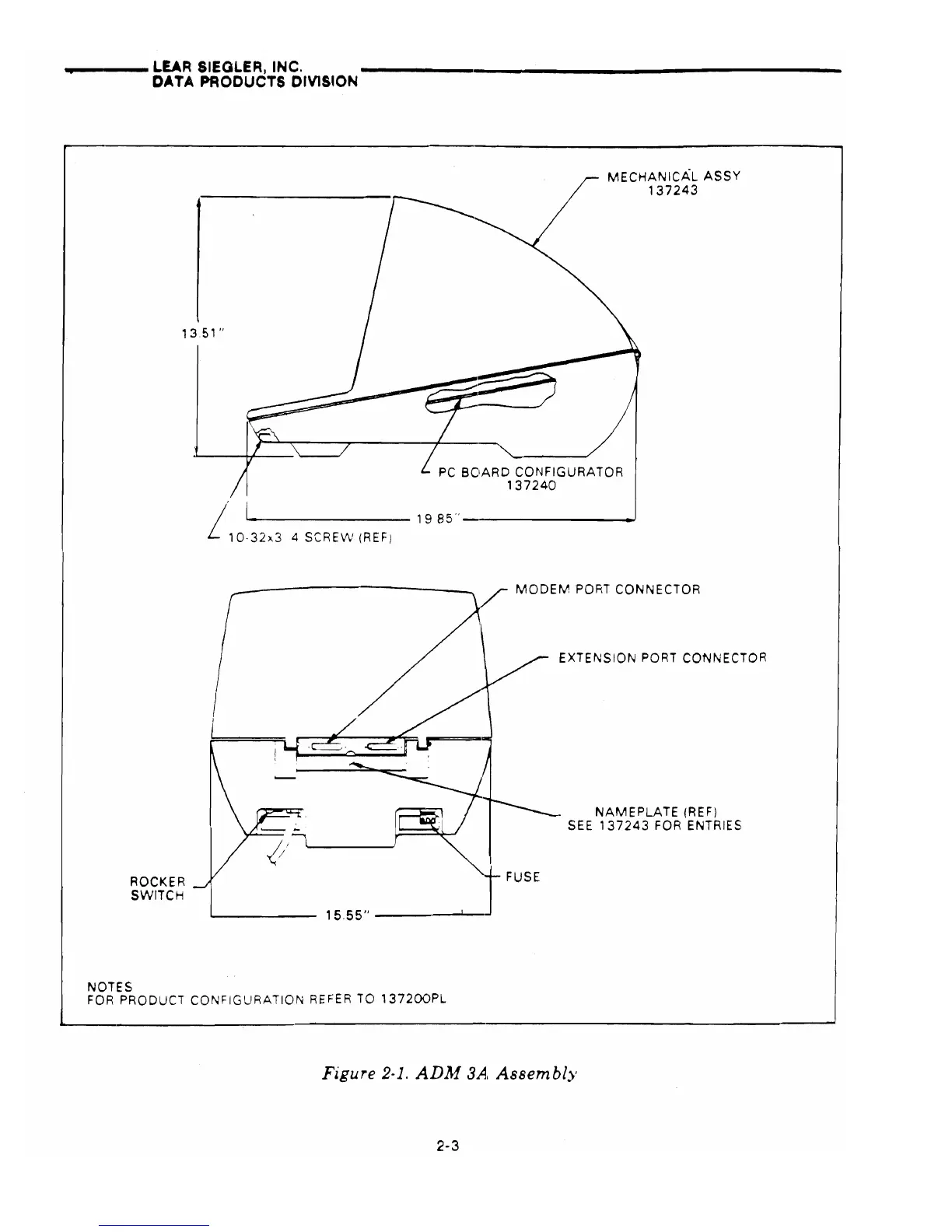

Figure 2-1. ADM 3A. Assembly
