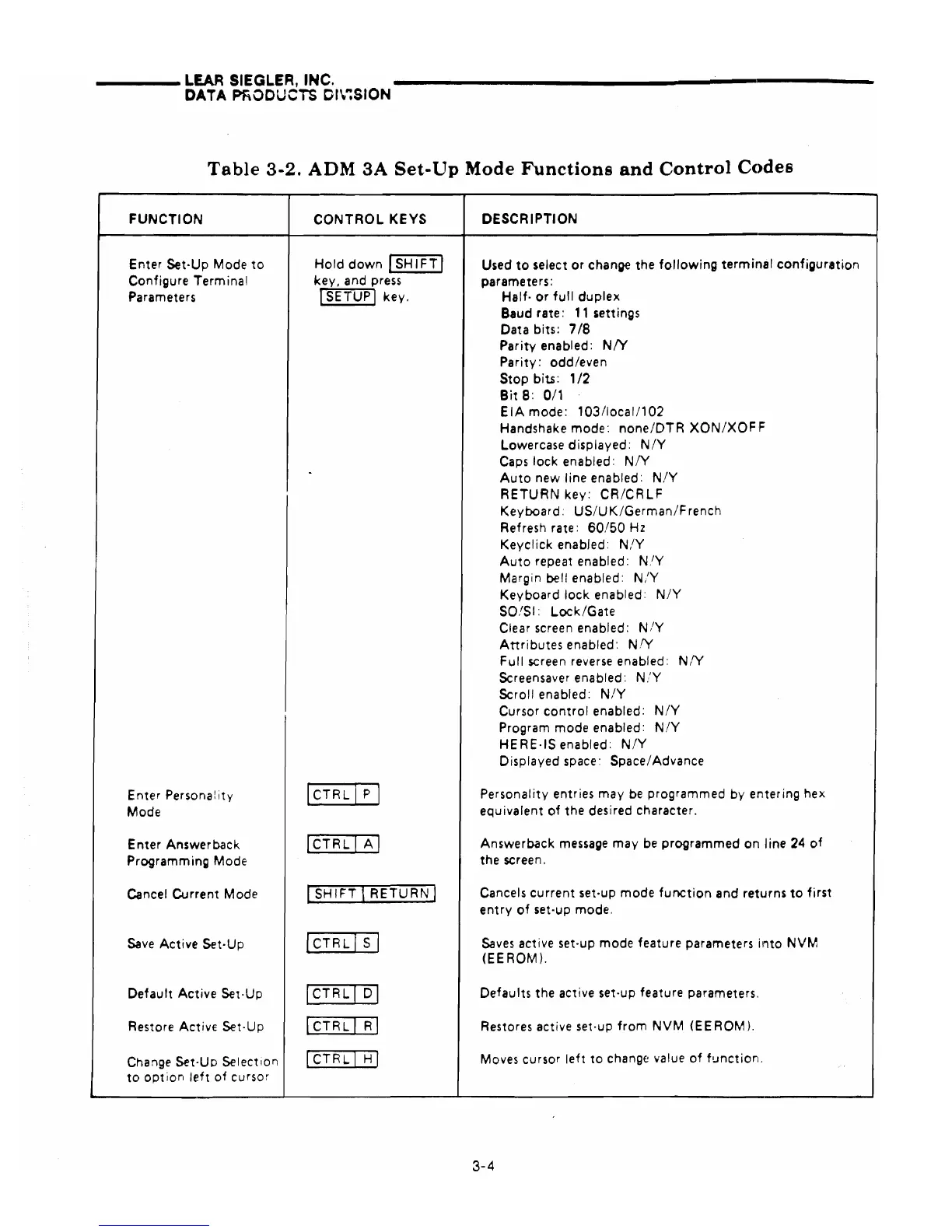

Table 3-2. ADM 3A Set-Up Mode Functions and Control Codes
FUNCTION
Enter Set-Up Mode to
Configure Terminal
Parameters
Enter Personality
Mode
Enter Answerback
Programming
Mode
Cancel Current Mode
Save Active Set-Up
Default Active Set-Up
Restore
ActivE Set-Up
Change Set·Up Selection
to option left of
cursor
CONTROL KEYS
Hold down ISHIFTI
key, and press
ISETUP I key.
ISHIFT IRETURN I
ICTRLCE]
l:£IKillJ
ICTRl[B]
DESCRIPTION
Used to select or change the following terminal configuration
parameters:
Half· or full duplex
Baud rate:
11 settings
Data bits:
7/8
Parity enabled: NfY
Parity: odd/even
Stop bits: 1/2
Bit 8: 0/1
EIA mode: 103/local/102
Handshake mode: none/DTR XON/XOF
F
Lowercase displayed: N/Y
Caps lock enabled:
NIY
Auto new line enabled: N/Y
RETURN key: CR/CRLF
Keyboard: US/U K/German/F rench
Refresh rate:
60/50 Hz
Keyclick enabled: N/Y
Auto repeat enabled: N/Y
Margin bell enabled: N/Y
Keyboard lock enabled: N/Y
SO/51: Lock/Gate
Clear screen enabled:
N/Y
Attributes enabled: NlY
Full screen reverse enabled: N/Y
Screensaver enabled: N/Y
Scroll enabled: N/Y
Cursor control enabled: N/Y
Program mode enabled: N/Y
HERE·IS enabled: N/Y
Displayed space : Space/Advance
Personality entries may
be programmed by entering hex
equivalent of the desired character.
Answerback message may
be programmed on line 24 of
the screen.
Cancels current set-up mode function and returns to first
entry of set-up mode,
Saves active set·up mode feature parameters ilr'lto NVM
(EEROM).
Defaults the active set-up feature parameters,
Restores active set-up from
NVM (E E ROM).
Moves cursor left to change value of function.
