DOWNSPRING ASSEMBLY
AUTOPILOT
PITCH SERVO
AFT ELEVATOR SECTOR
FORWARD ELEVATOR SECTOR
FORCE SENSOR
BOB WEIGHT
SNs 140 AND SUBSEQUENT, ALL MODEL 25 AIRPLANES, AND
AIRPLANES MODIFIED FOR 45,000-FOOT OPERATION

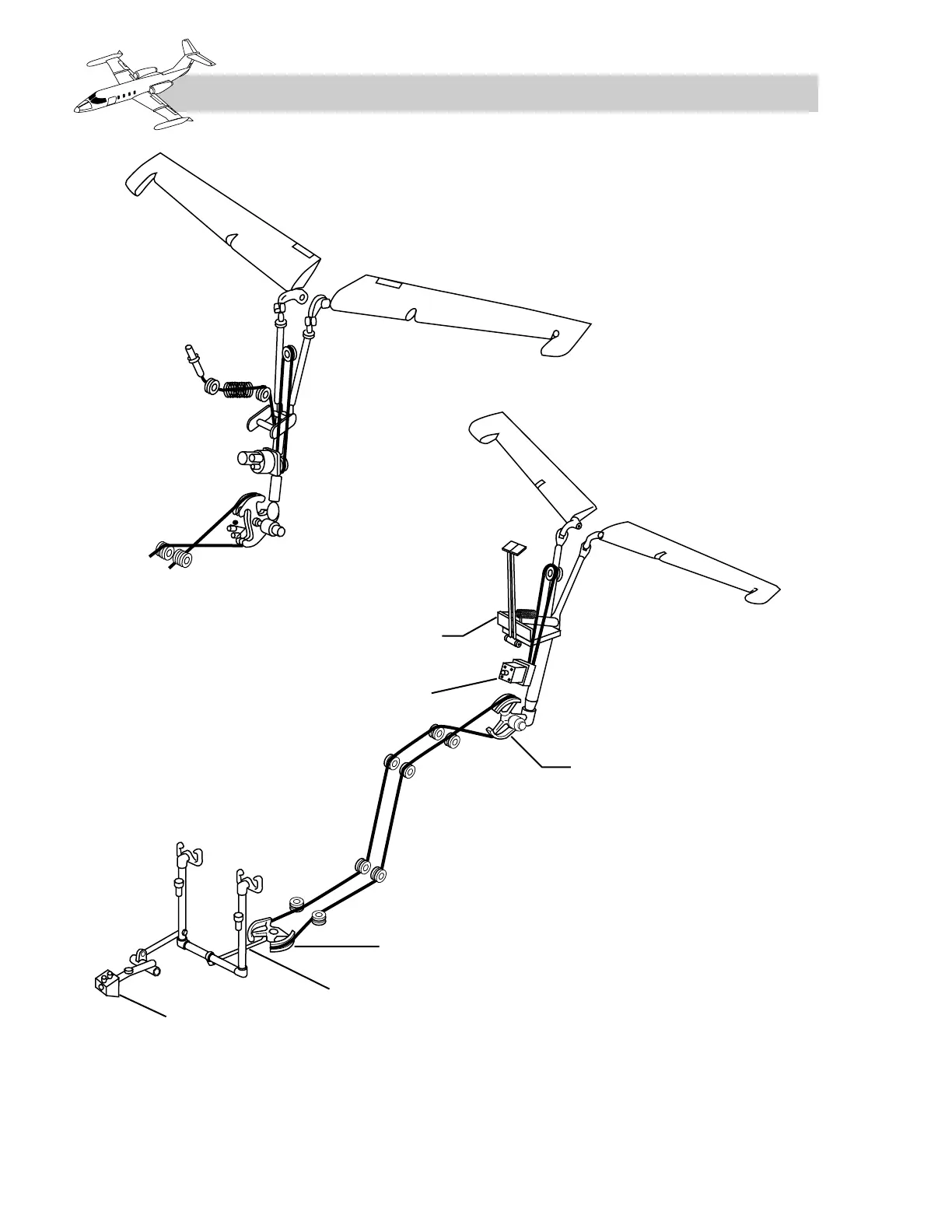

Figure 15-3. Elevator Control System (Sheet 1 of 2)
