Symmetry

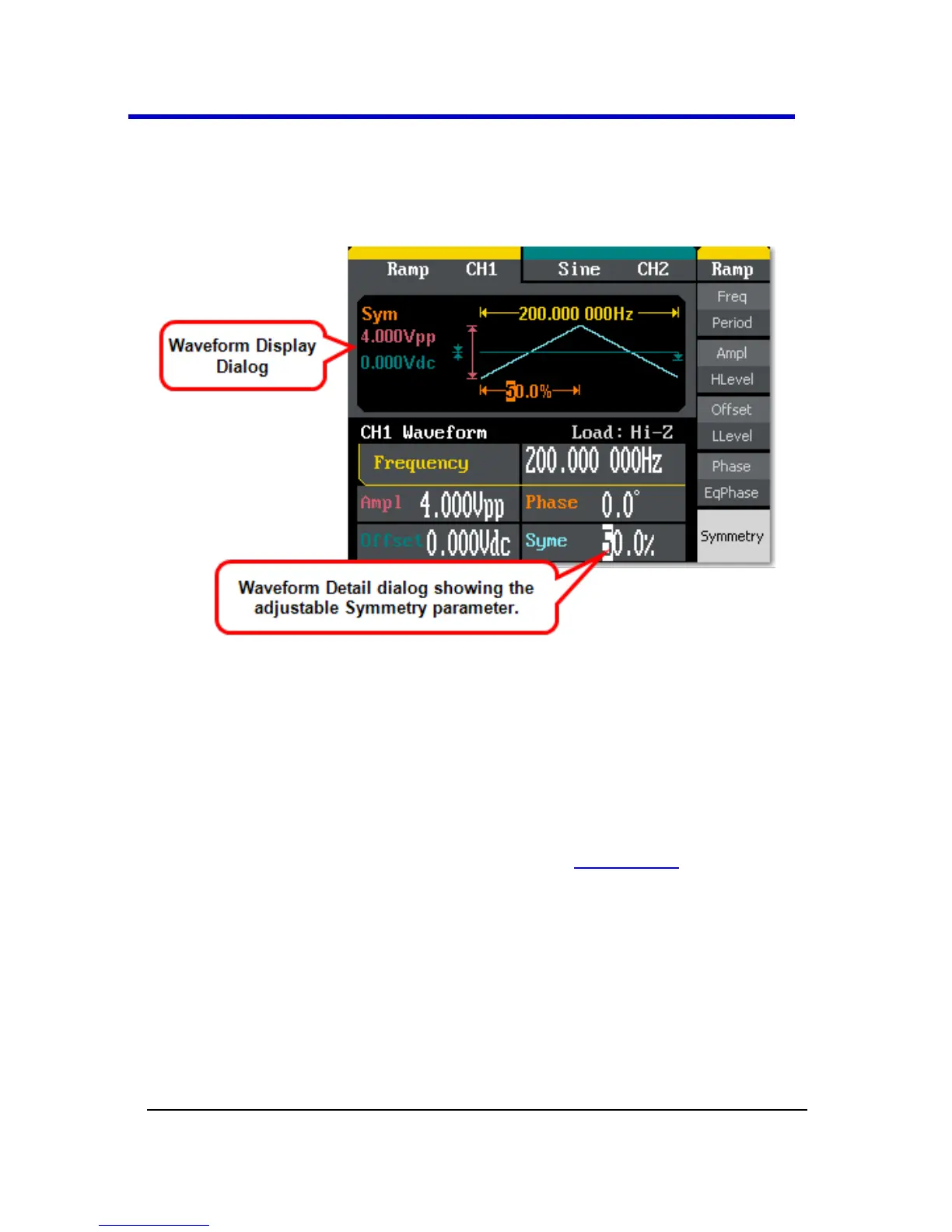

With the Ramp waveform and the Symmetry operation button pressed,
a Ramp waveform is shown on the Waveform Display and Symmetry is
shown on the Waveform Detail dialog.
PLEASE NOTE THE FOLLOWING:
Press an adjacent Operation button to select a desired Unit (unit
interval) for your entry.
Provide your desired Symmetry amount using the Digital Input
Front Panel Controls (on page 27).
Creating a Pulse Wave
When first pressing this waveform button on the Front Panel, the
WaveStation shows the Pulse Operation menu and corresponding
Display and Detail dialogs.
Press adjacent Operation buttons and use the Digital Input Front Panel
Controls (on page 27) to make specific adjustment/selection parameter
choices.
