Lectra Alys 60 - Mounting the buffer reservoir; Left side of Plotter, seen from the back

 (MWQERXPMRKSJTVMRXMRKFPSGOTEVXW
%P]WQEMRXIRERGIQERYEP %%
 1SYRXMRKXLIFYJJIVVIWIVZSMV
!
%HIRUHUHSRVLWLRQLQJWKHEXIIHUUHVHUYRLUWKHSULQWLQJKHDGPXVWEH
UHSODFHGVHHh

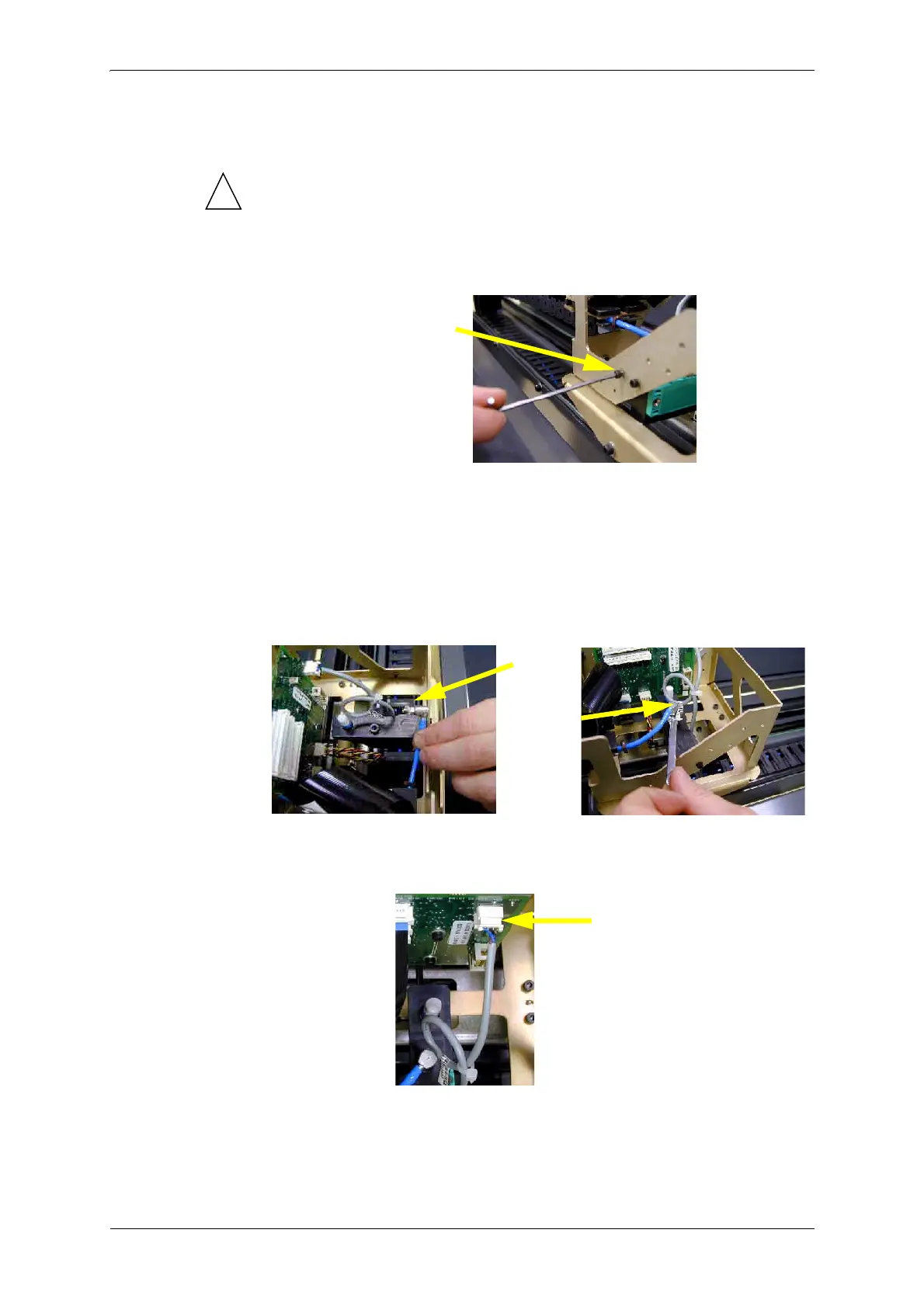

1. Position the buffer reservoir assembly on the plotting block casing and
tighten the fastening screws on the outside (0,2 N.m).
2. Remove the ink delivery pipe housing protection, if necessary.
3. Install the seal and reposition the ink delivery pipe into its housing.
4. Screw the ink delivery tube lock nut to the reservoir. Tighten to one
quarter turn.
5. Plug the ink level sensor cable to the electronics board, if necessary.





