Replace the buffer reservoir if necessary (see “Mounting the buffer
reservoir”).
Replace the three Y-ribbon cables according to these three phases:

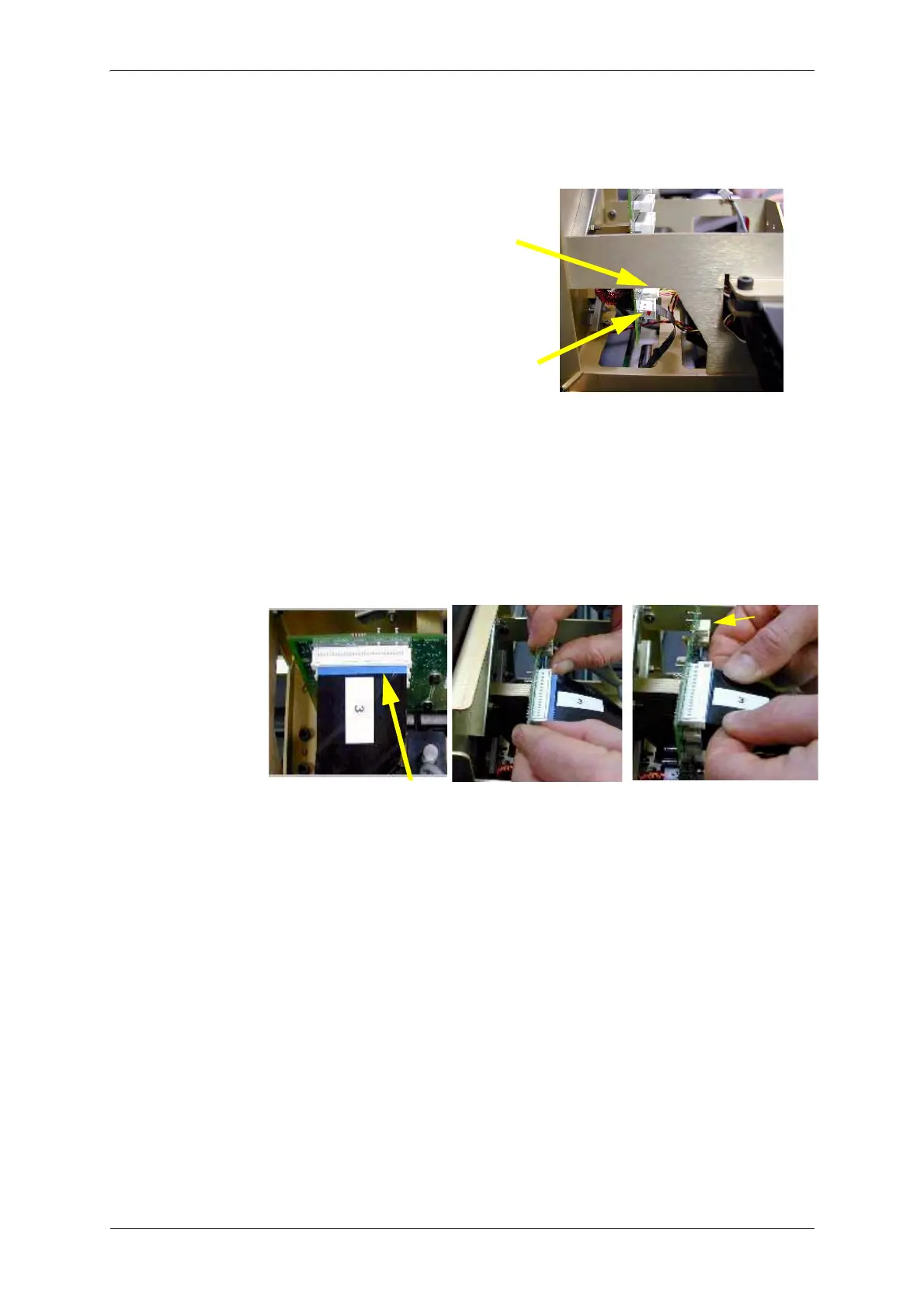

1. Connector presentation (Be careful of the cable direction: protected side
of plug, in blue, visible from above).
2. Insertion and guide
3. Connection check
4. Check that the ink level sensor cable is correctly connected to the
electronic board.
6IGSRRIGXXLIPMRIEVIRGSHIVVMFFSRGEFPI
&IGEVIJYPSJXLIGEFPIHMVIGXMSRTVSXIGXIH
WMHISJTPYKMRFPYIZMWMFPIJVSQEFSZI
6IGSRRIGXXLITETIVHIXIGXMSR
WIRWSVGEFPI



